Does your beetleweight need more drive power?
Not happy with any of the options on the market?
Tired of trying to put your own shafts into a 2xxx motor to get all the torque???

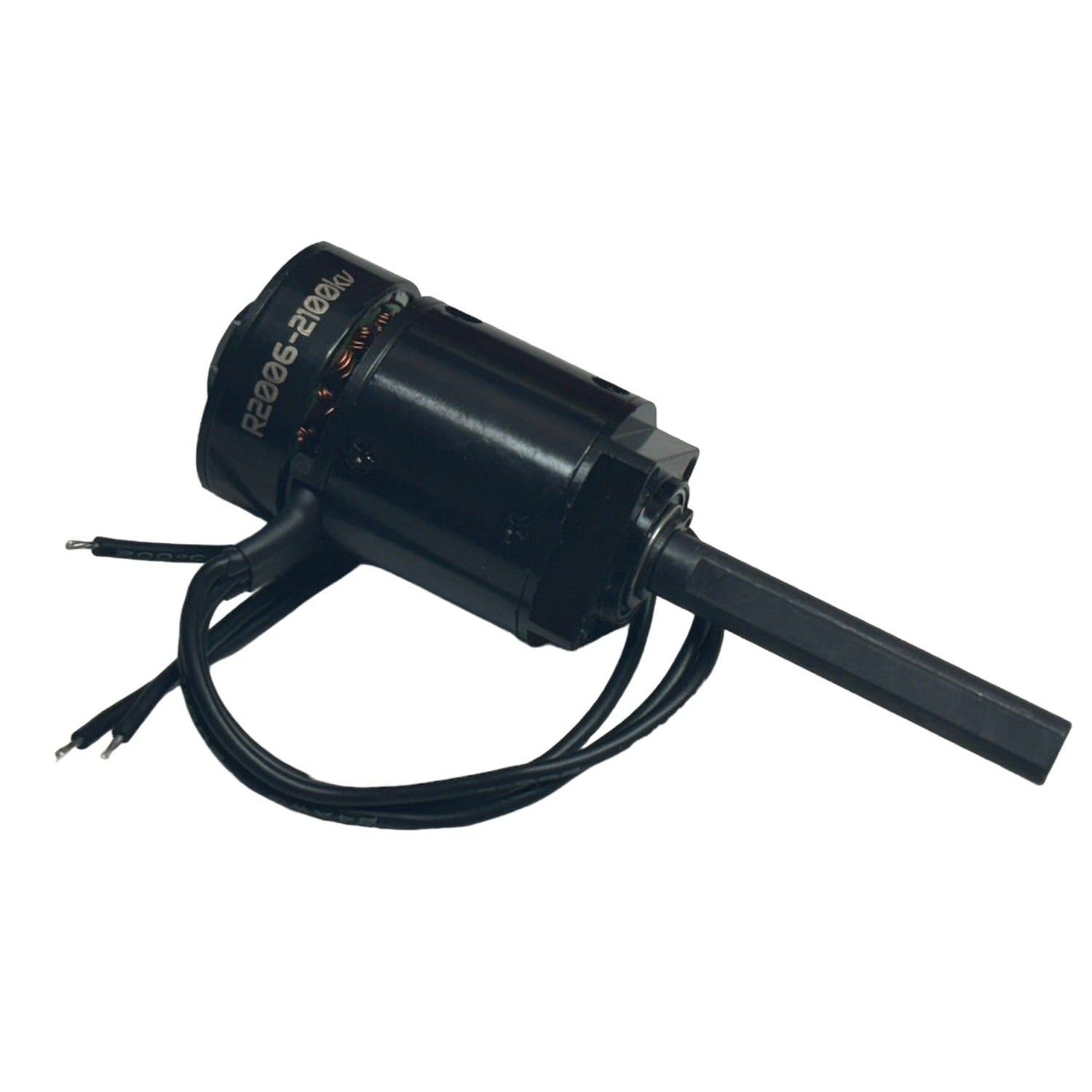

Repeat drive MAX V2 is an improvement on the original. It comes with a 2100kv 2006 brushless motor mated to a 24mm 27:1 planetary gearbox designed to be the toughest beetleweight drive motor on the market.
Features:
- V2 Upgrades from V1
- M3 Face mounting is standard.
- Faceplate comes with flats built in to facilitate clamp mounting
- Motor is integrated into the gearbox to minimize footprint
Motor is upgraded to a 2006 that provides more power with less heating, especially for those running 6S
- Custom wound 2006 brushless motor directly integrated into the gearbox
- 2s-6s rated voltage
- 24mm, 27:1 all metal planetary gearbox
- 6mm “D” extra long output shaft (cut to the length that you need to save weight)
- Custom billet 4130 final planet carrier and output shaft
- Output shaft c-clip has been changed to minimize the groove and provide the strongest product.
- 66g weight
18mm square faceplate
- 4x18mm M3 face mount hole pattern (note this is larger than the standard M2 Beetle Drive mounting hardware).
- With the mounting holes drilled out to M3 diameter this motor mounts well into:
- Pairs well with the Repeat Reversing ESC or BL20A Reversing ESC. Both are rated up to 4S. Above 4S requires other ESC options.
-
Notes:
- These are brushless motors. If your receiver was being powered from a BEC in your brushed drive you'll need to add a BEC.
- These motors ship with bare leads, you'll need to solder them to the ESC or add your own connectors.
Performance:
- 11.1V input (3S)
- 14.8V input (2S)
- 22.2v input (6S)

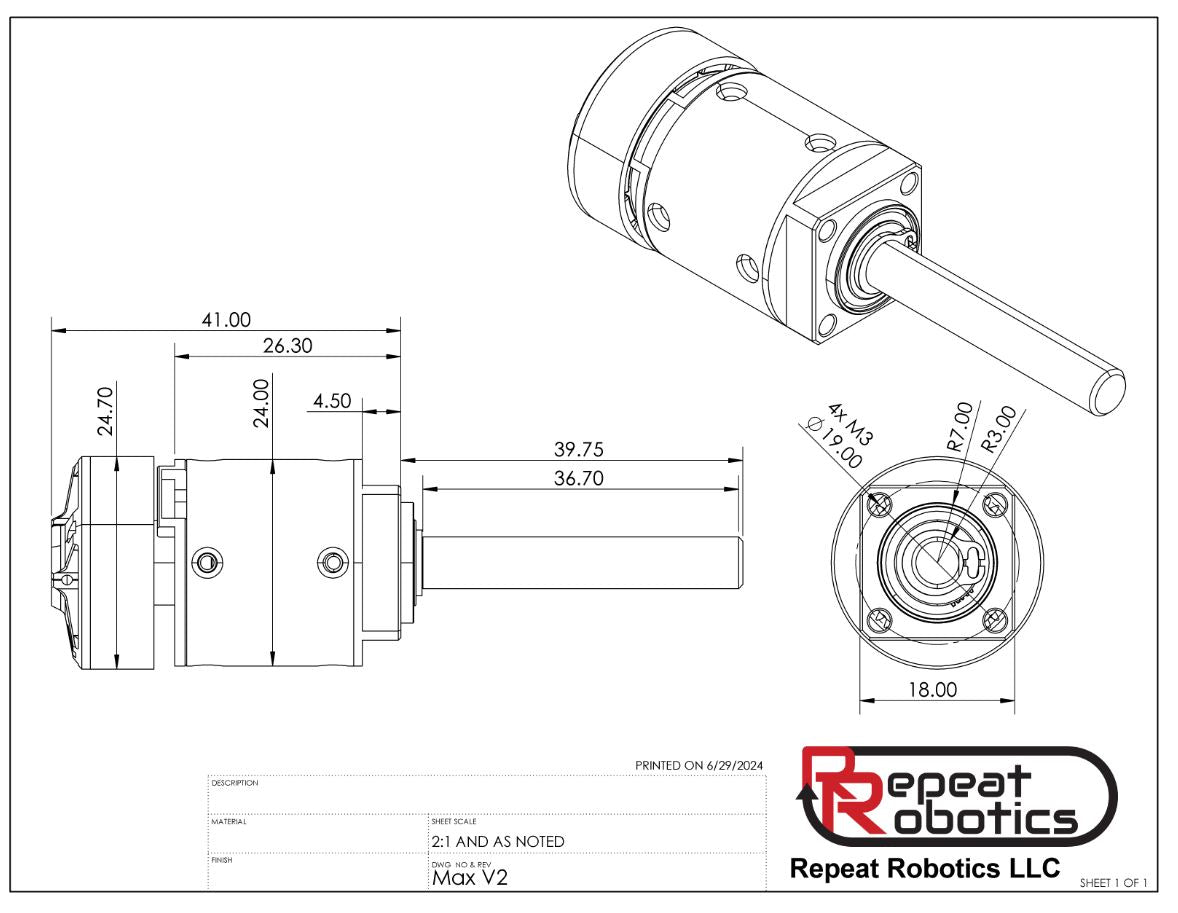

Cad Link:
https://grabcad.com/library/repeat-drive-max-1
