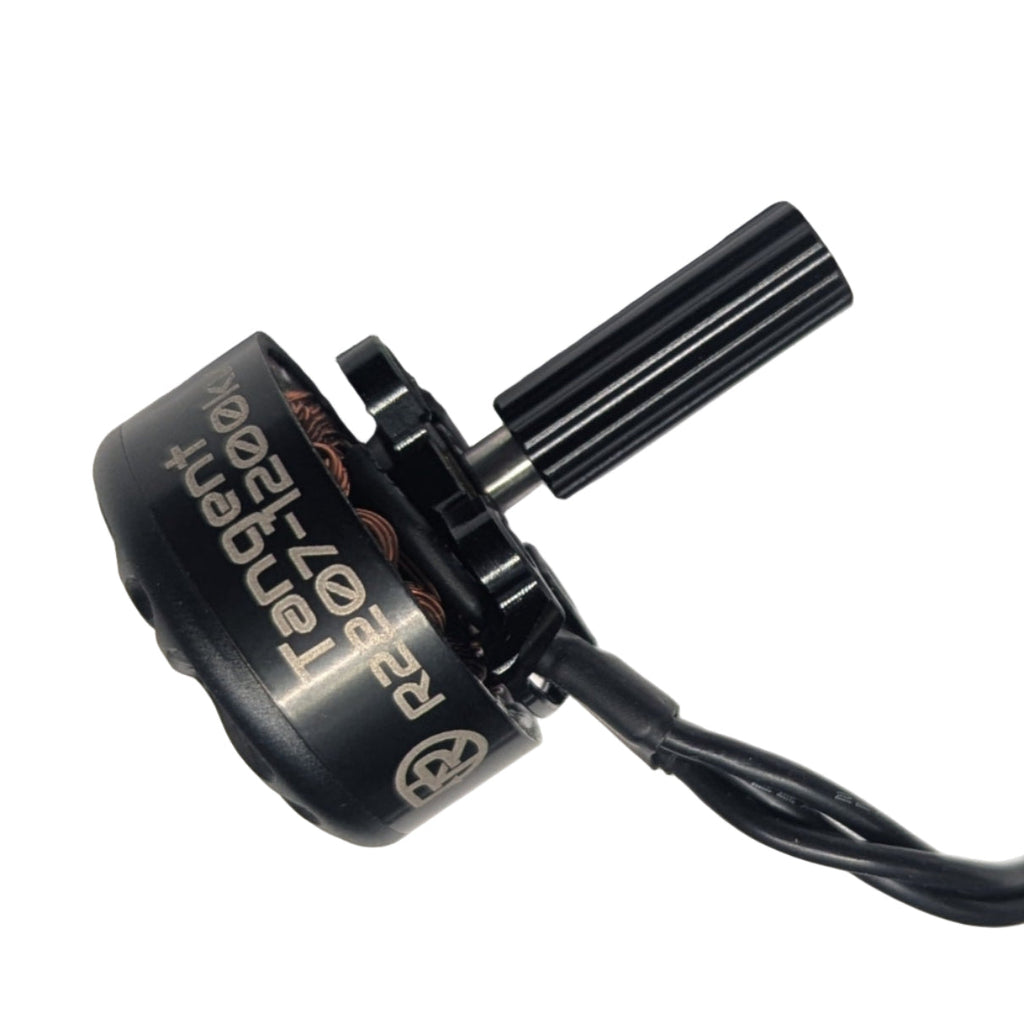

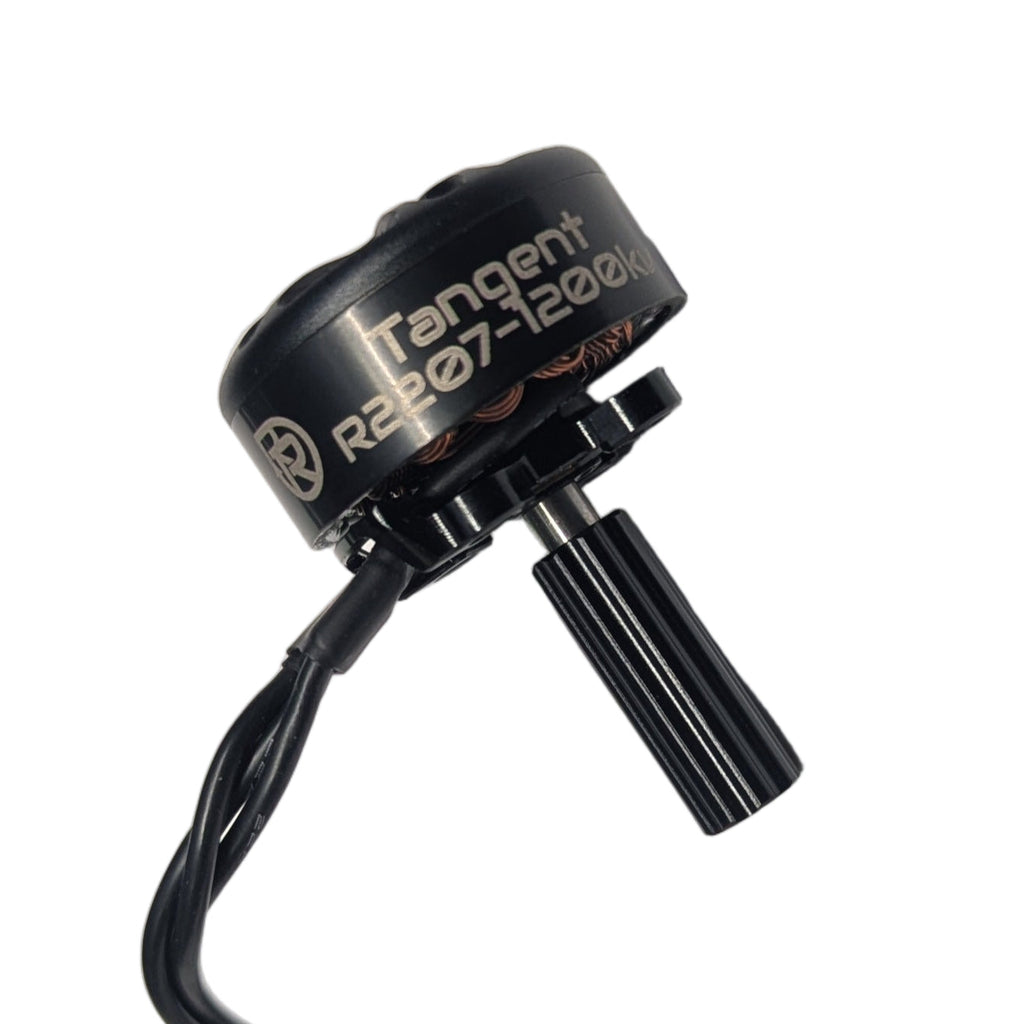

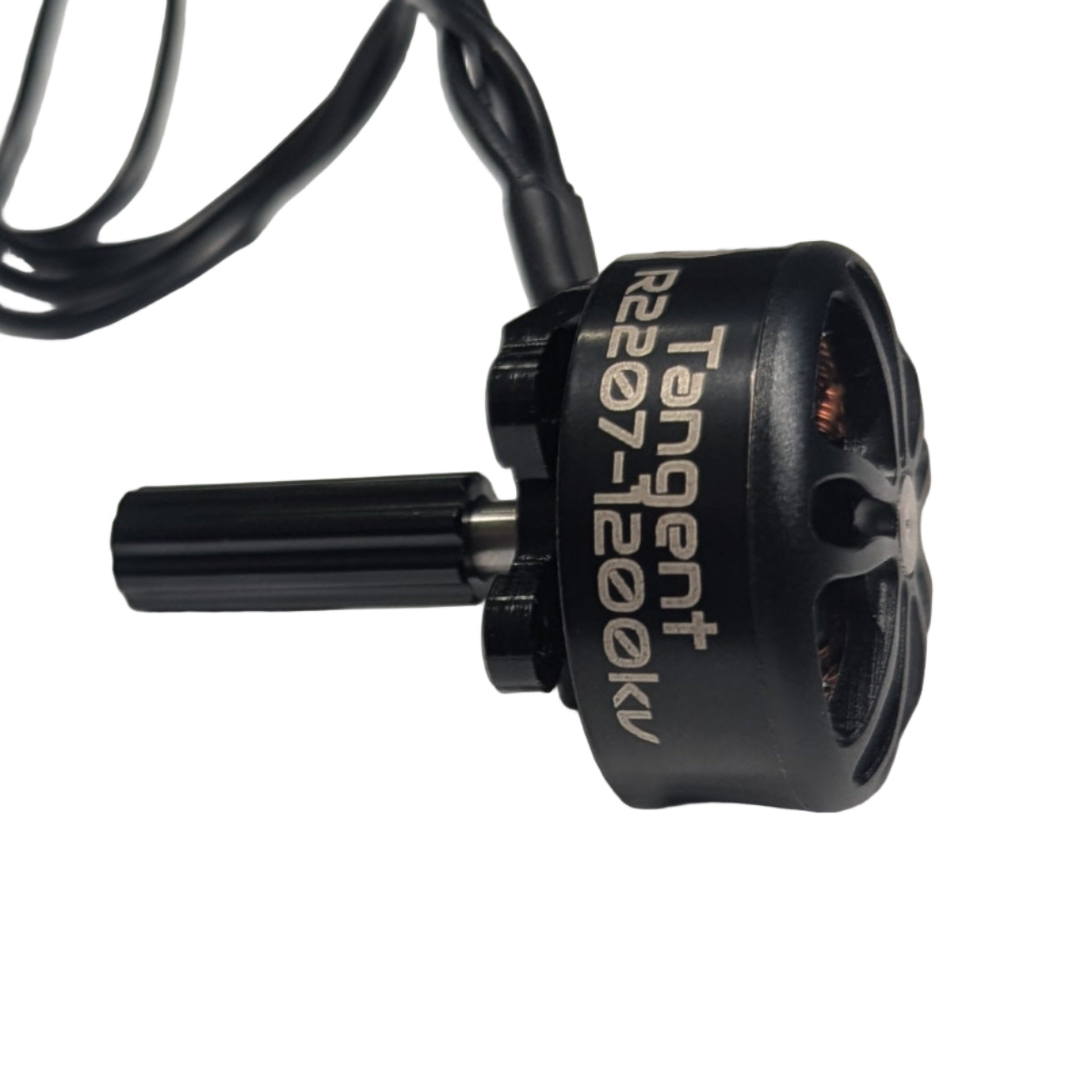

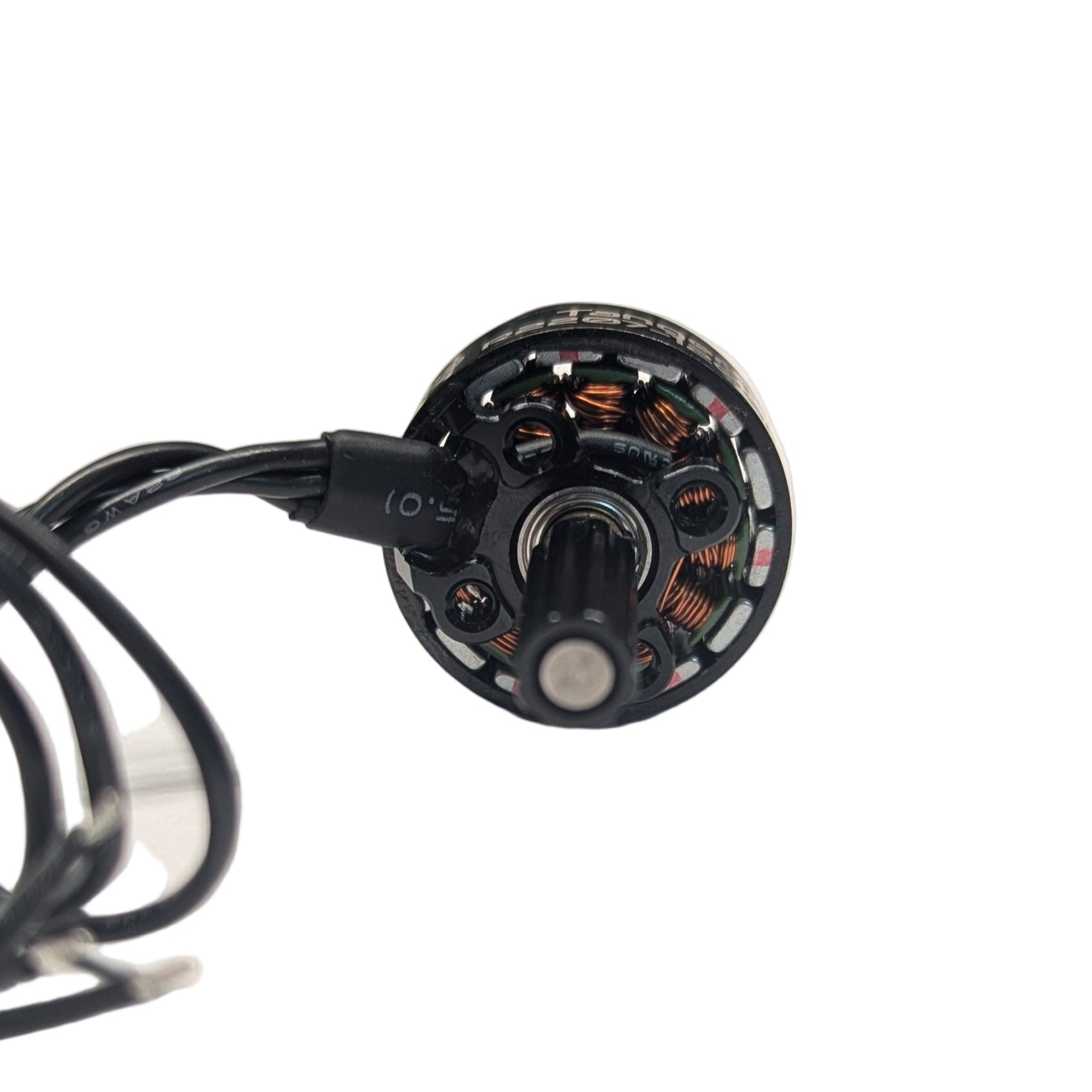

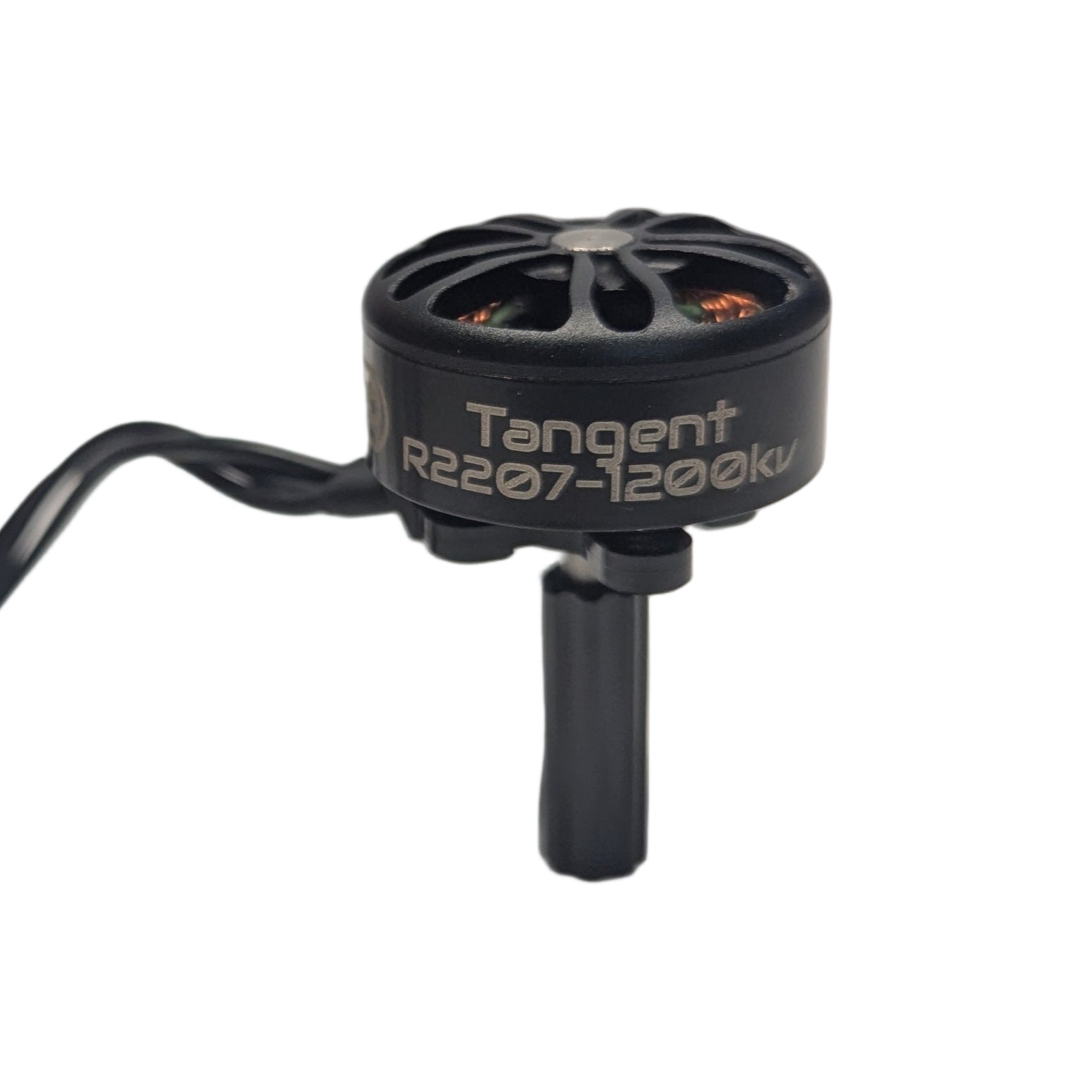

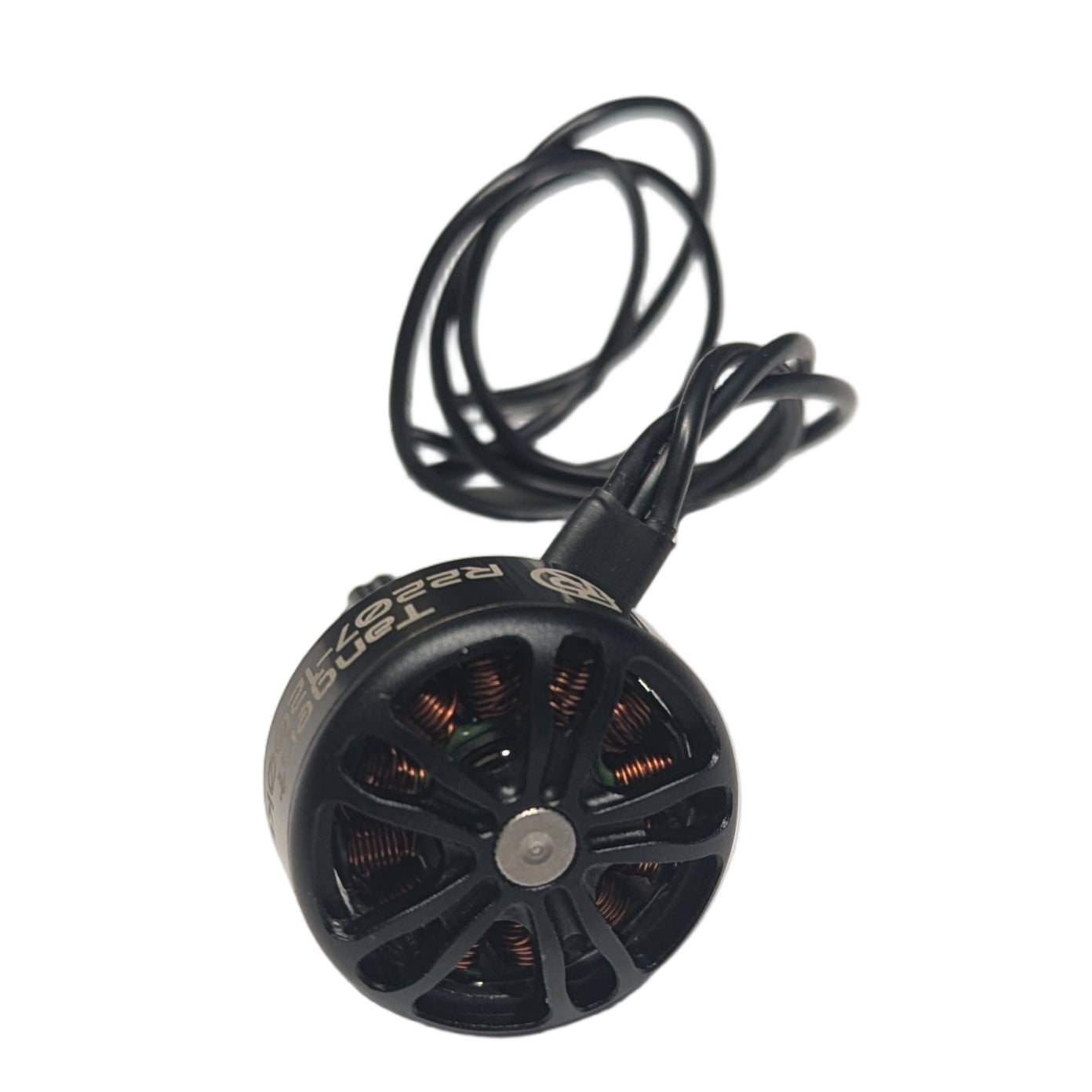

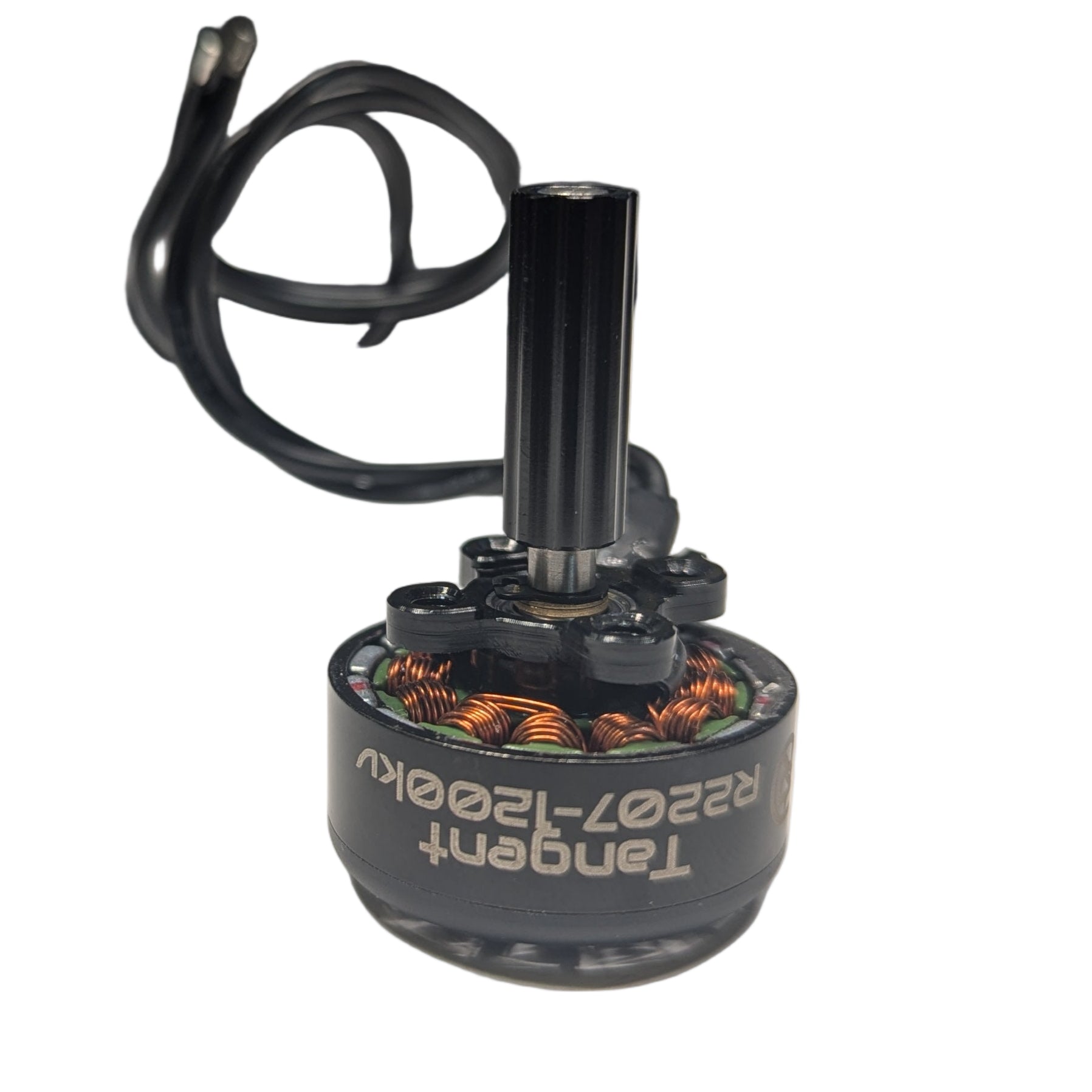

Have you wanted to build a tangent drive robot? Normal drone motors make structure challenging because the shafts come out the side opposite the mount. Now with repeat tangent drive motors, the shaft comes out the side where the mounting is, making tangent drive easier than ever before! Pair with Repeat drive axles to take the complexity out of your super speedy drivetrain! Use our Repeat AM32 dual brushless drive esc to get rid of the jitters and make your robot drive smoother than ever before!
Specifications:
- Motor Speed: 1200kv
- Voltage: 2-6S
- Comes with 20mm diameter knurled tangent drive shaft
- Suggested 0.8mm to 1.2mm interference (depending on wheel design)
- Weight
- 36.1g with full length wires
- 34.1g with shortened wires
Make sure to test out the chosen interference amount with your specific chassis and wheel designs. Too little interference and the shaft slips on the wheels before they slip on the ground. Too much and you’ll just be loading your motors too much causing them to burn out eventually

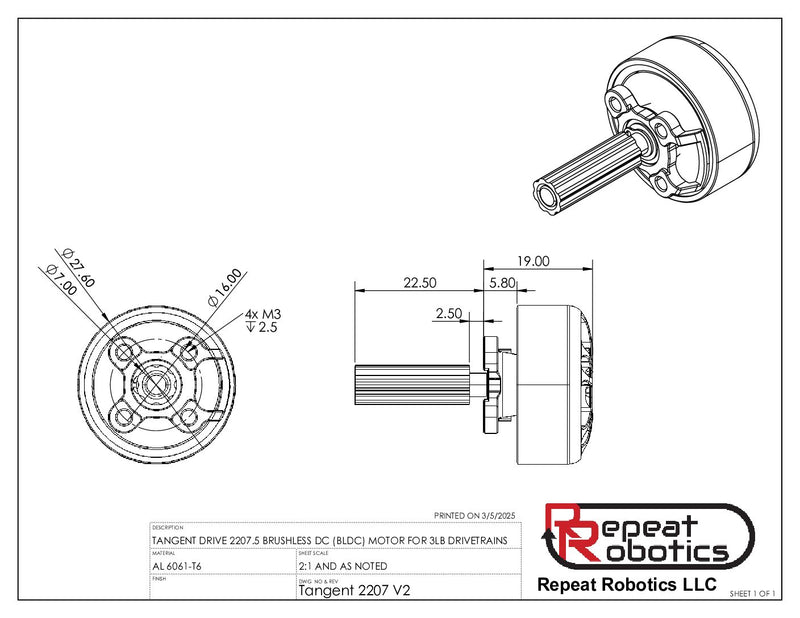

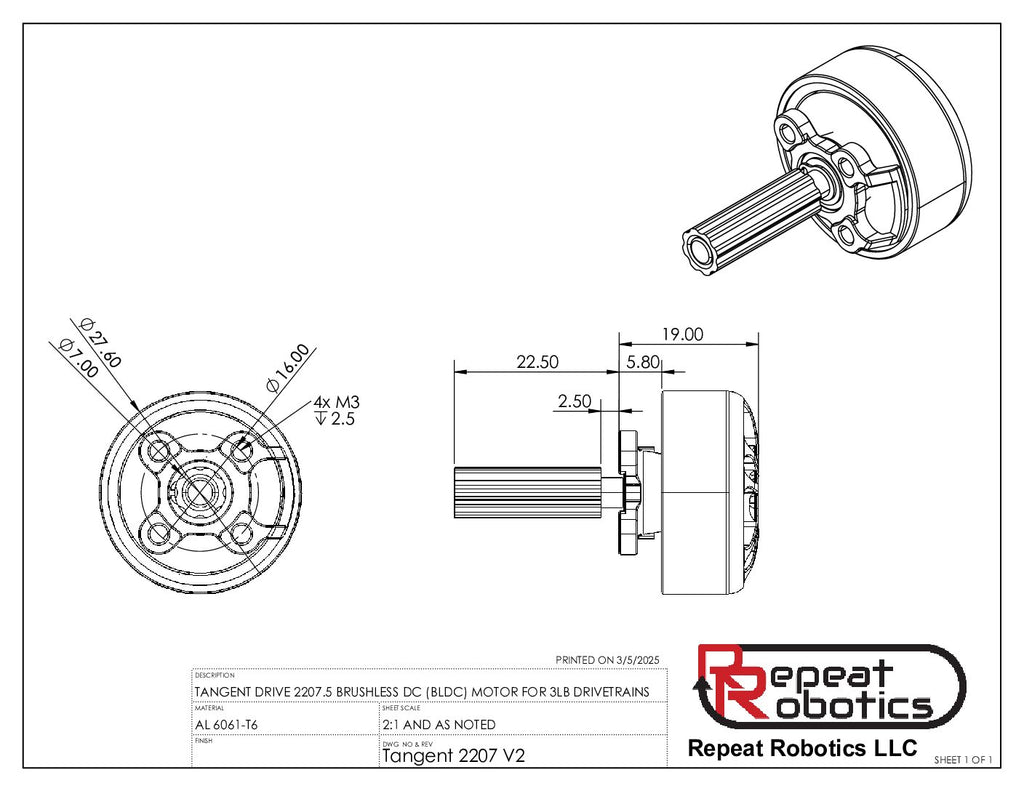

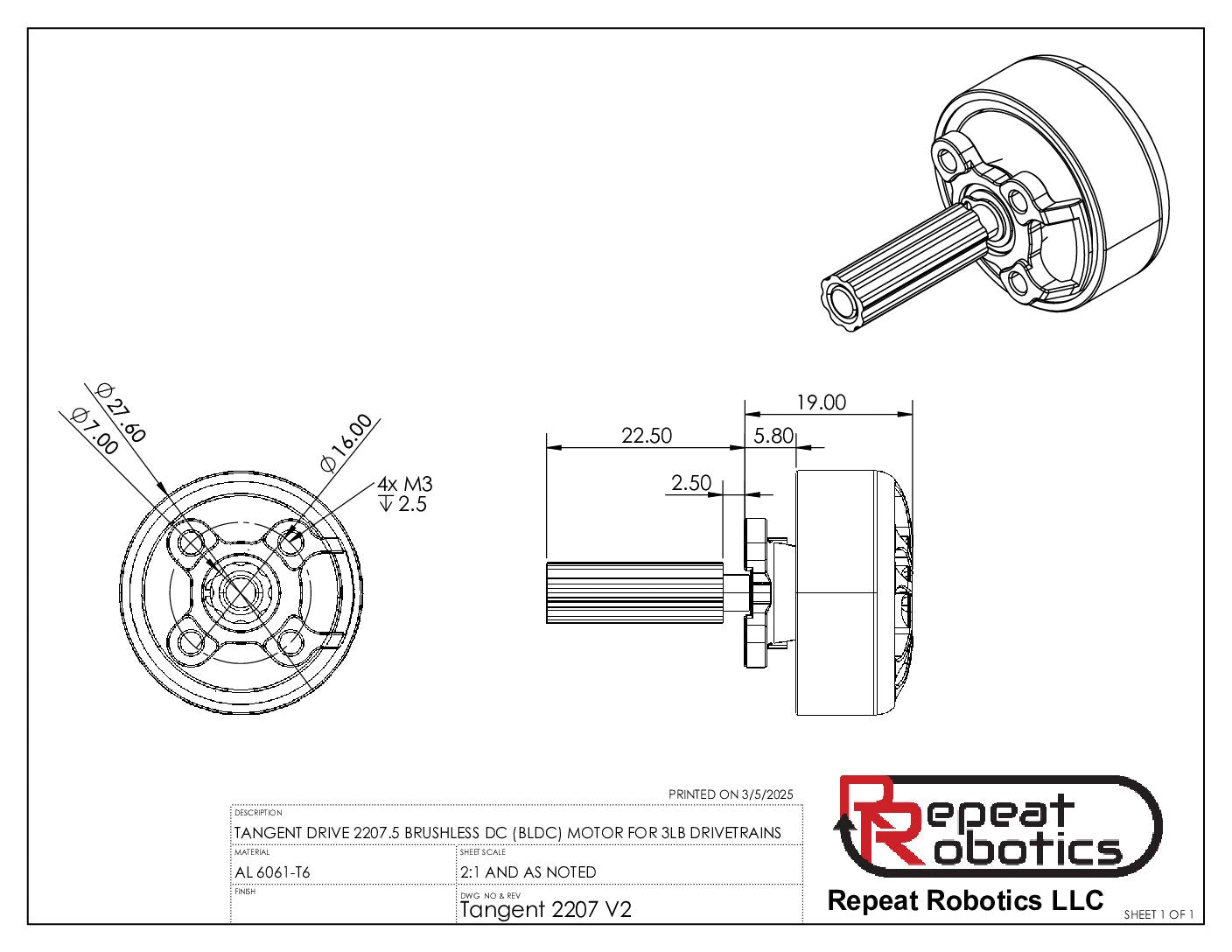

Cad Link:
https://grabcad.com/library/repeat-tangent-drive-2207-1
