WARNING: REPEAT DRIVE ESCS ONLY WORK WITH BRUSHLESS MOTORS.
Whether Repeat drive mini, repeat drive max, or another brushless option, these ESCs are designed for smooth bidirectional movement and great low rpm high torque control.

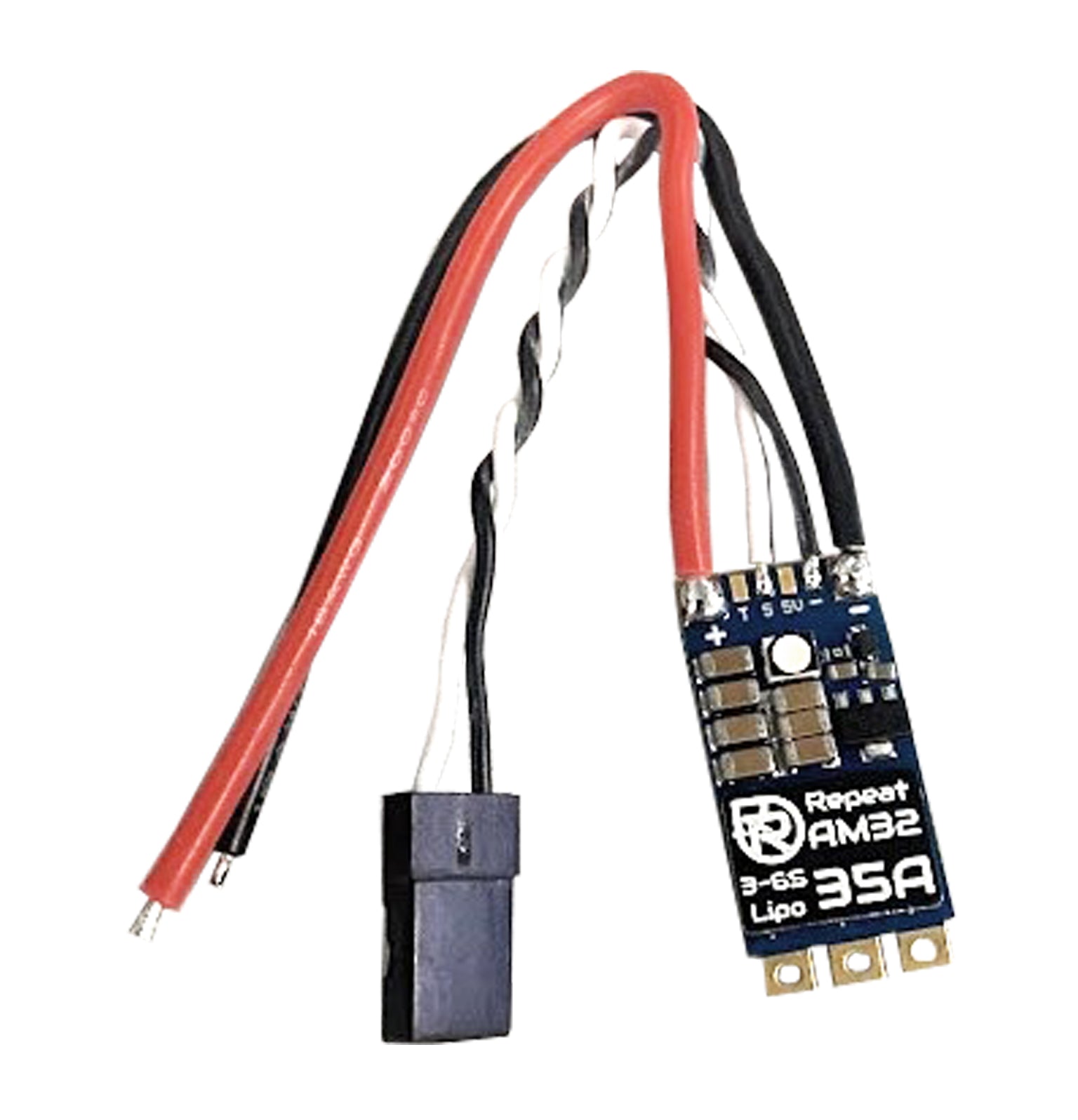

Repeat drive AM32 ESC is a 35A custom AM32 firmware ESC that is pre-programmed for smooth bi-directional movement. Take all the guessing out of brushless drive.
Simply solder the three wires from your brushless motor onto the pads, plug into your receiver, and drive away! 6S capability has been added to make these ESCs work with even more bots!
Designed for use with Repeat Drive Max motors, but should also be able to drive any off-the shelf Antweight or Beetleweight brushless drive motors with minimal tuning.
Specifications:
- 35A continuous current rated
- Weight: ~5g (before wire shortening)
- Size: 25x13x5mm
- AM32 firmware (custom brushless drive firmware developed for rock crawlers)
- Comes pre-flashed with Repeat Drive Bi-directional settings, tailored for Repeat Max or Repeat Mini
- 3-6S capable
- Programmable through the AM32 esc config tool available HERE
- Notes:
- This is a brushless ESC for converting to brushless drive. If your receiver was being powered from a BEC in your brushed drive you'll need to add a BEC.
- These ESCs do not ship with connectors, you'll need to solder the motor leads to the ESC or add your own connectors.
