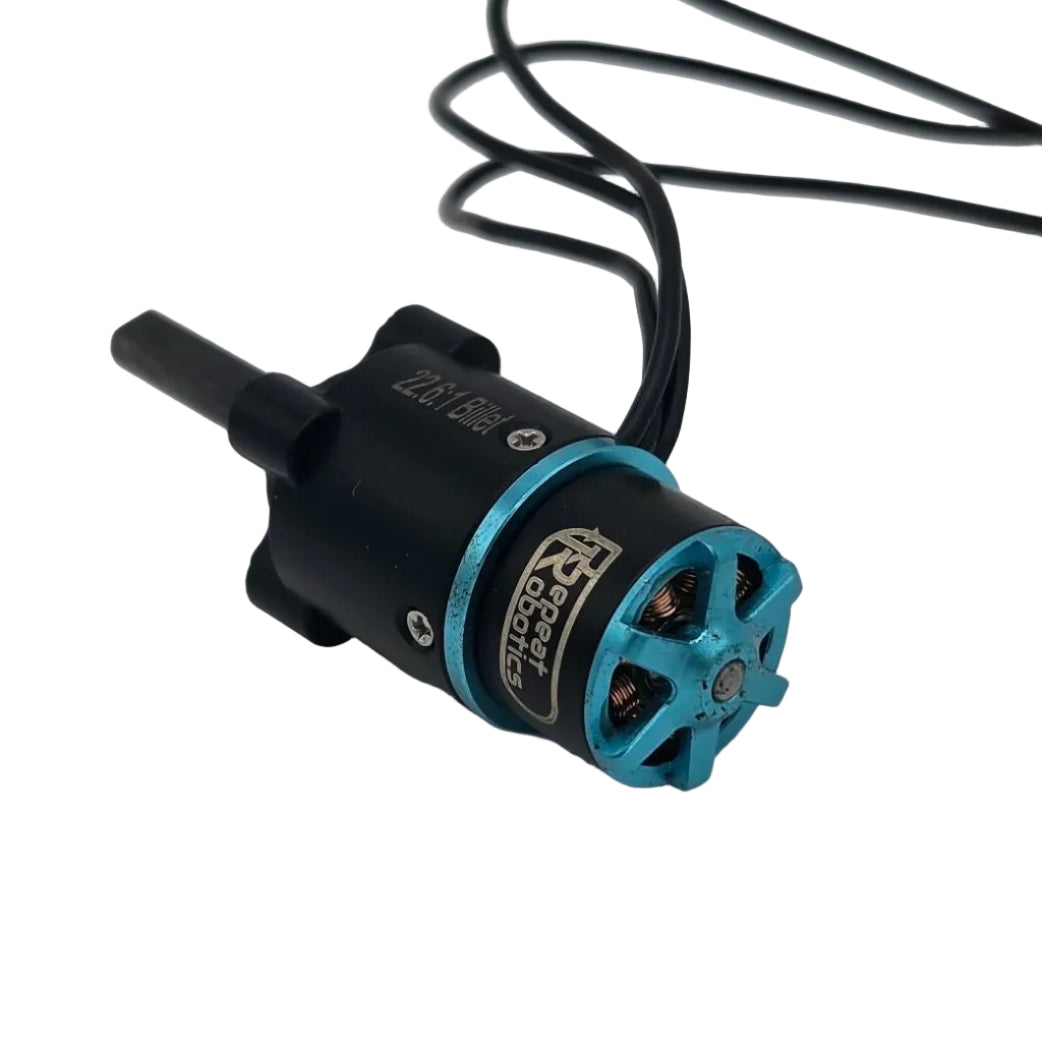

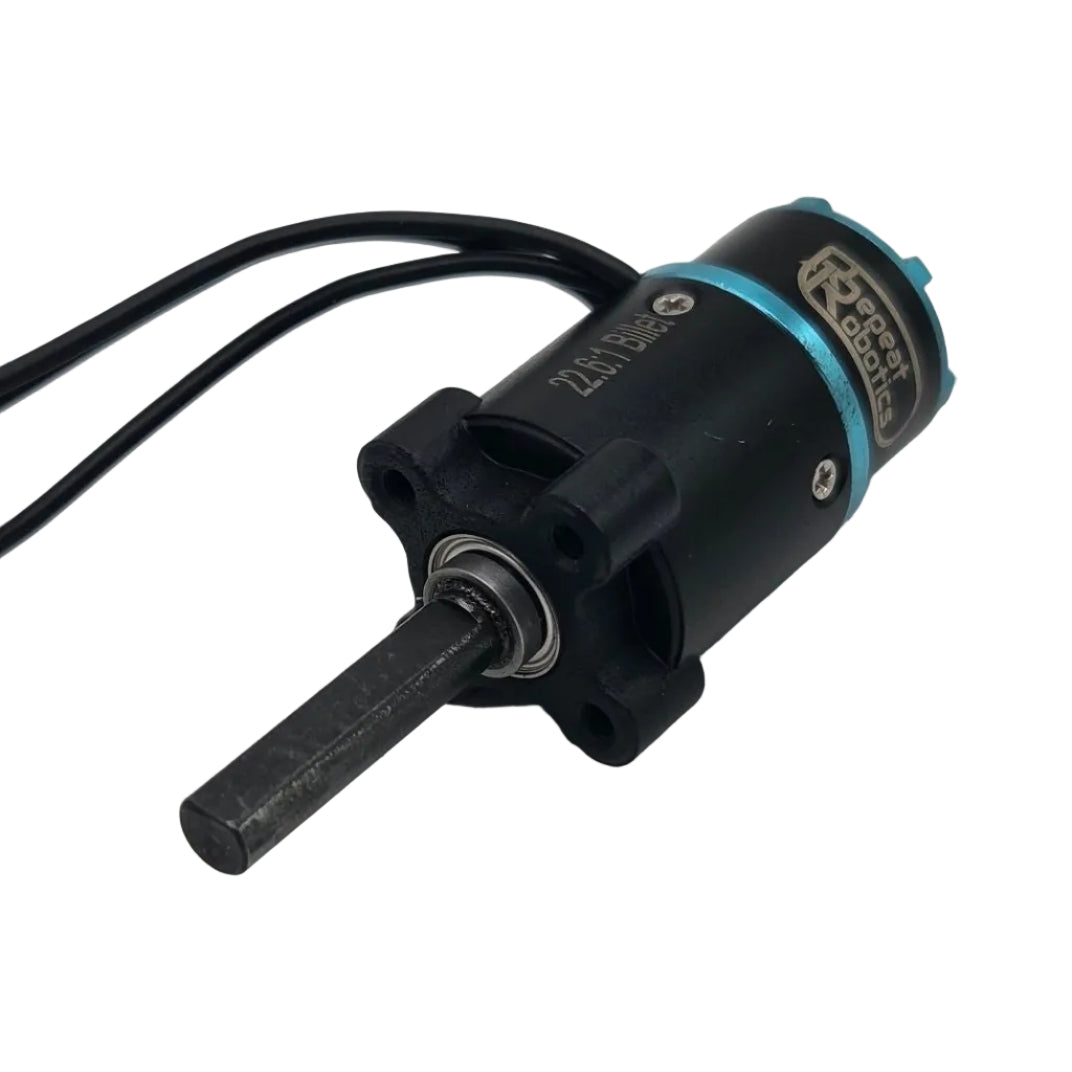

These are like the Repeat Pro in beetles, but in a convenient antweight size. this upgraded antweight drive motor has a custom tooled outer casing specifically to remove failure modes of the repeat mini brushed motors. No longer will a bushing failing lock up your drive. Rest easily knowing that too long mounting screws won't kill your motor.
Specifications:
- Weight: 24.6g
- Four lobed mounting pattern on the face makes for easy clamp mounting
- Dual ball bearings supporting the output shaft
- 4mm hardened steel billet output shaft

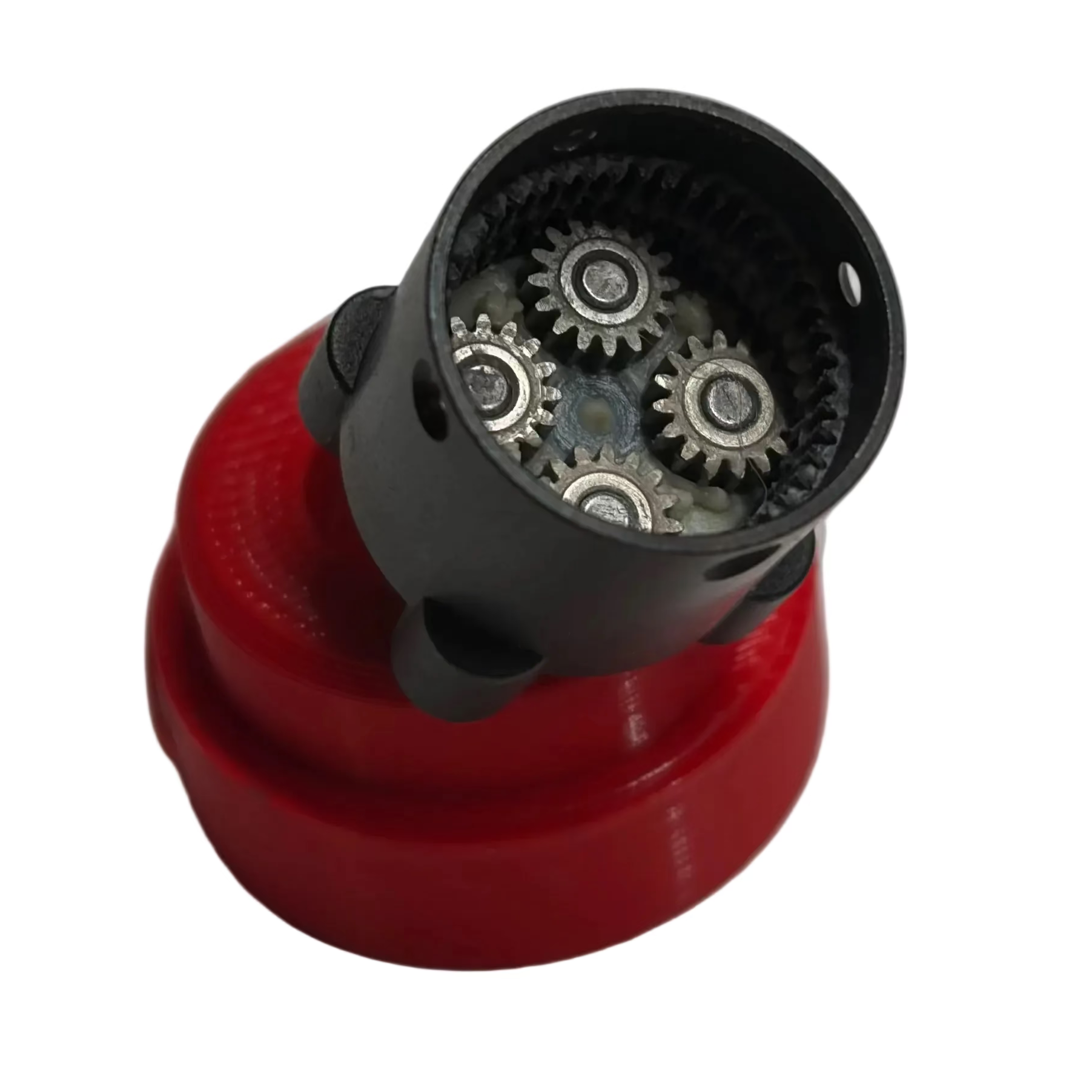

- 4 final stage planet gears (vs the standard 3)
- Machined planet gears for added durability
- 4x M2 tapped hole on a 14mm circle for mounting
- Custom designed 3500kv 1106 brushless motor
- 2-4s lipo rated voltage
- 16mm diameter, 22.6:1 all metal planetary gearbox
- Upgraded Mk4.1 motor has about 20% more torque

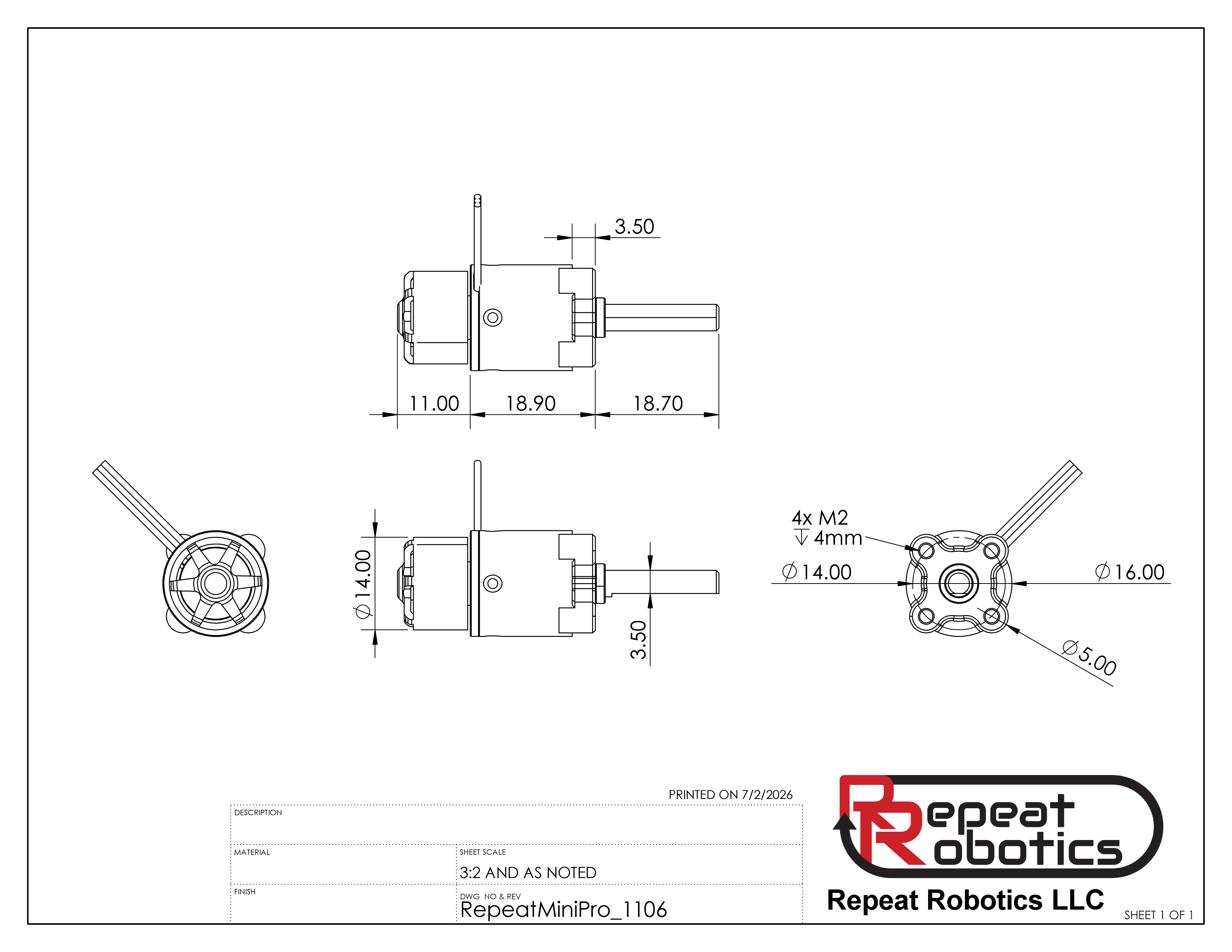

Cad Link: Click Here
Warning:
These gearboxes can only accept ~2mm of face screw engagement. Using screws that are too long will result in damage.
