Have you been looking for a super durable brushed drive solution? We put a high power 130 size motor on our durable Max gearboxes to create Repeat Max Brushed! Overkill in every way, these are the most durable option to power your beetleweight forward!
Requires a 6mm wheel hub. Works with common 4mm hubs (Twist Hubs, Banebots T40/T81, Repeat Eco)
Pairs great with the Repeat 15A Dual Brushed ESC and Fingertech Mega Spark Mounts.
Features:
- 6mm hardened steel shaft, 40mm length
- Durable 24mm Max gearbox
- High power 130 motor
- 71g overall weight
- 27:1 gear ratio
- Rated Voltage 2S-4S
- Standard 18mm mounting pattern with M2 threads.
- Sold Individually
Performance:
- 12V input
- 1070rpm free speed
5.25kg.cm stall torque
6A stall current

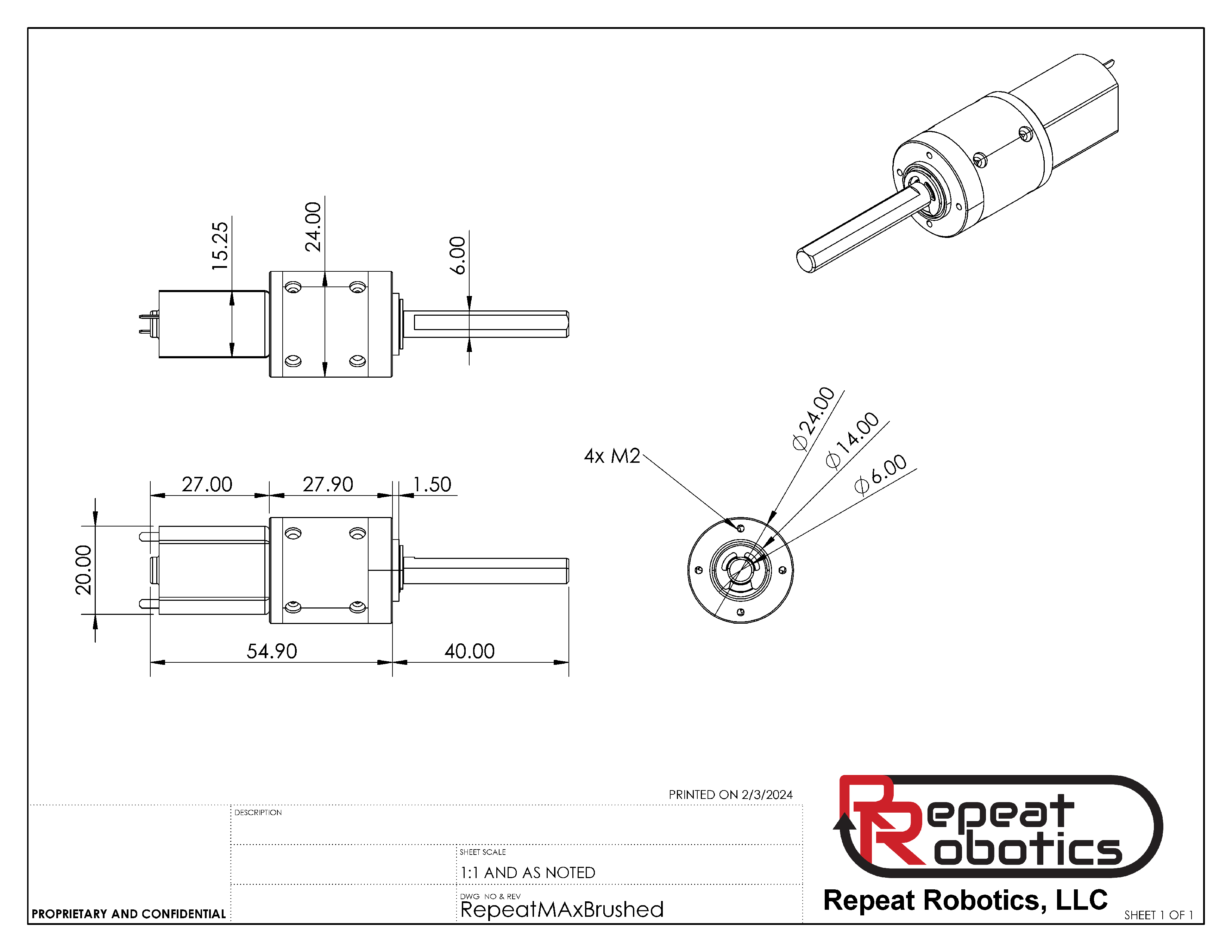

Cad Link:
https://grabcad.com/library/repeat-max-brushed-1
