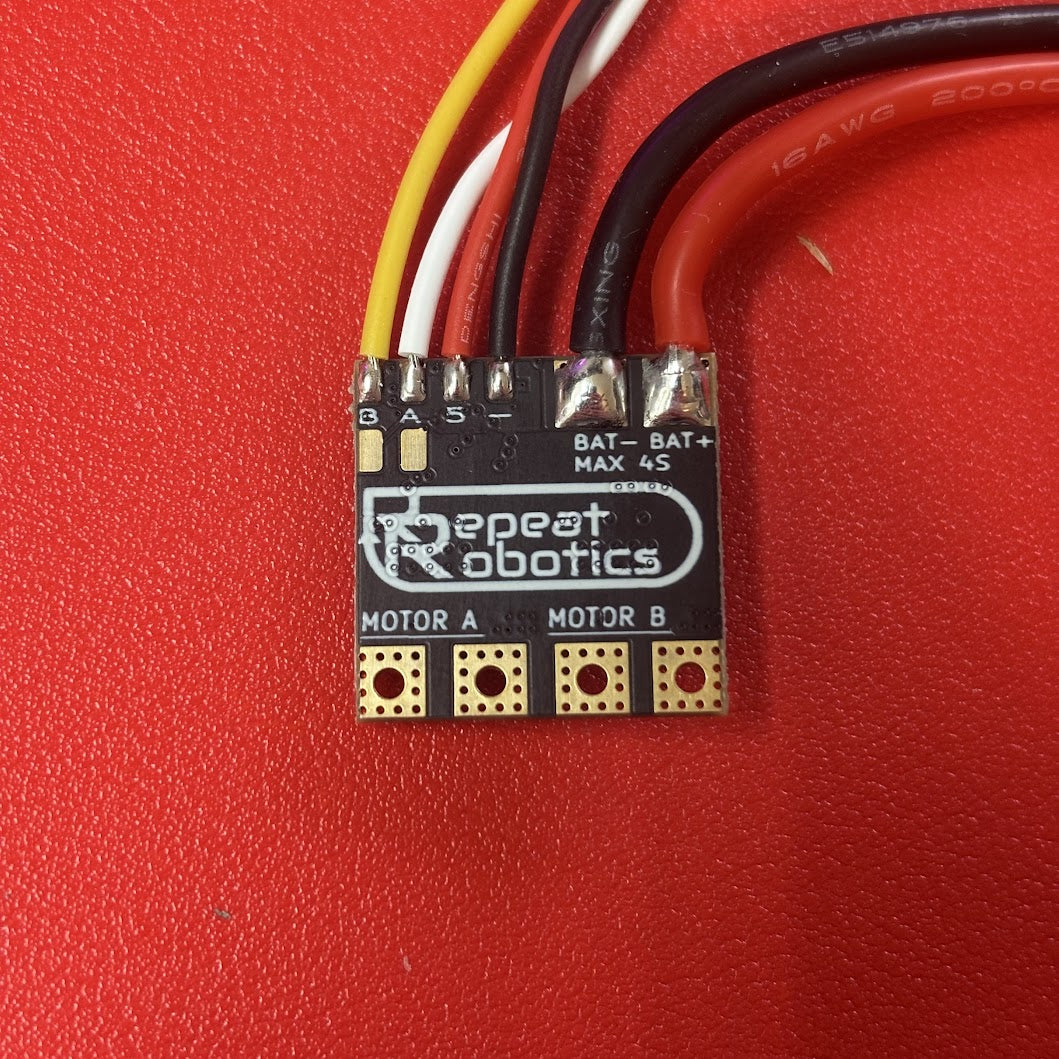

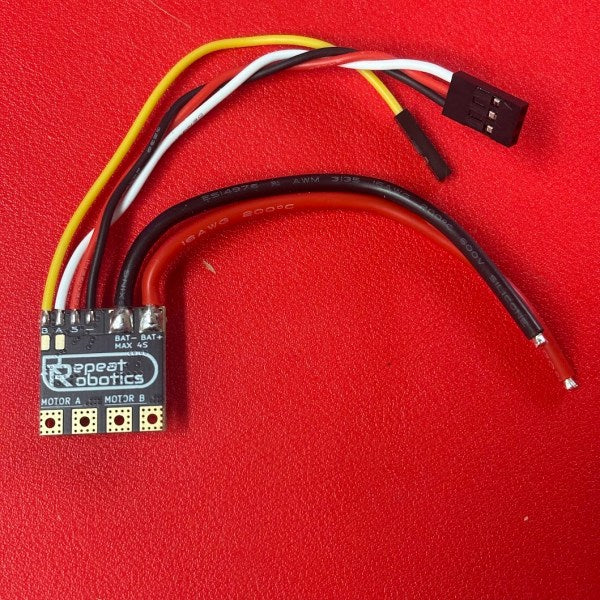

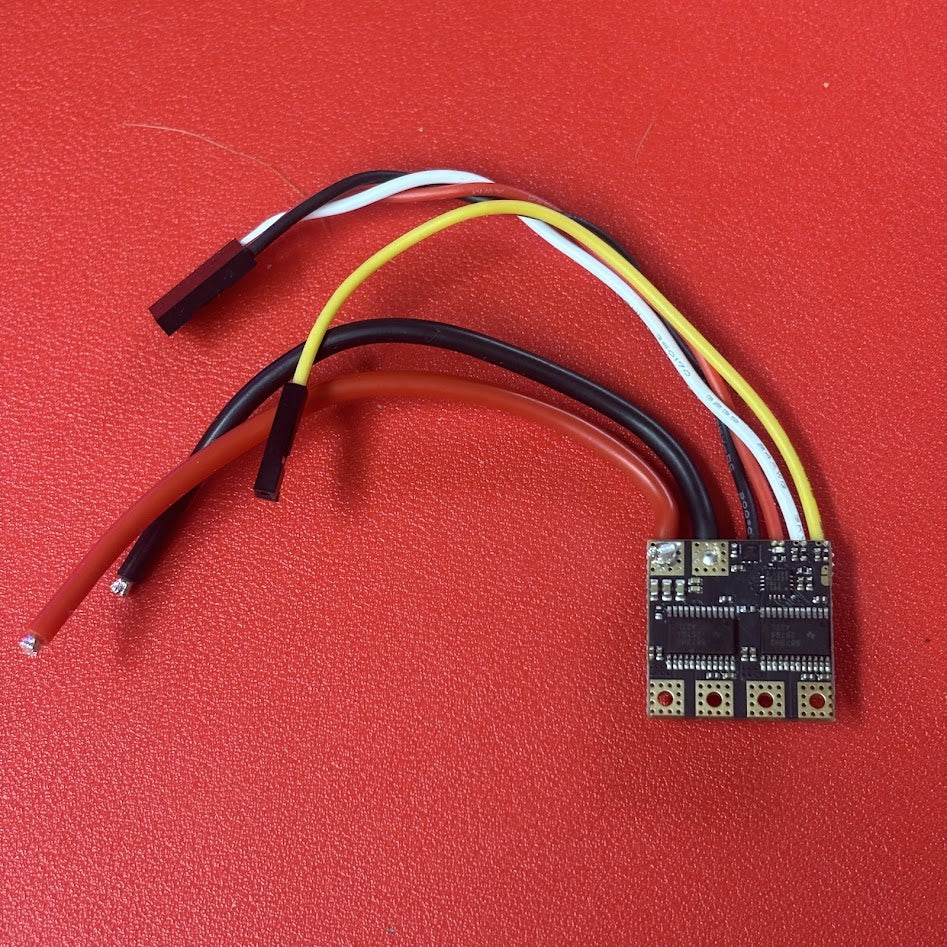

Do you like the simplicity of brushed drive? Want a durable esc in a tiny form factor? The Dominion DESC has built-in overcurrent and overtemp protections that limit the output power, but let you keep going. All this in the smallest package on the market! Measuring just 20 x 20 x 2mm, this esc packs a punch above its size! Also with a BEC to power your receiver! And the power and signal wires are already professionally soldered on! All this at an incredibly low price point.
This esc is perfect for beetleweight or even antweight drive systems, with up to 6A per channel on a 4S HV battery! Pairs perfectly with the repeat brushed Max or Compact gearmotors!
Specifications:
- Size: 21.2 x 21.2 x 2.5 mm
- Weight: 9g with full length 16awg power and 24awg signal wires
- Input voltage : 2-4S LiHV
- BEC: 5V 500mA
- Channels: 2x brushed
- Active current Limiting: Set 6.25A per channel
- Mixing: yes (comes with mixing disabled)
- Includes power/status LED

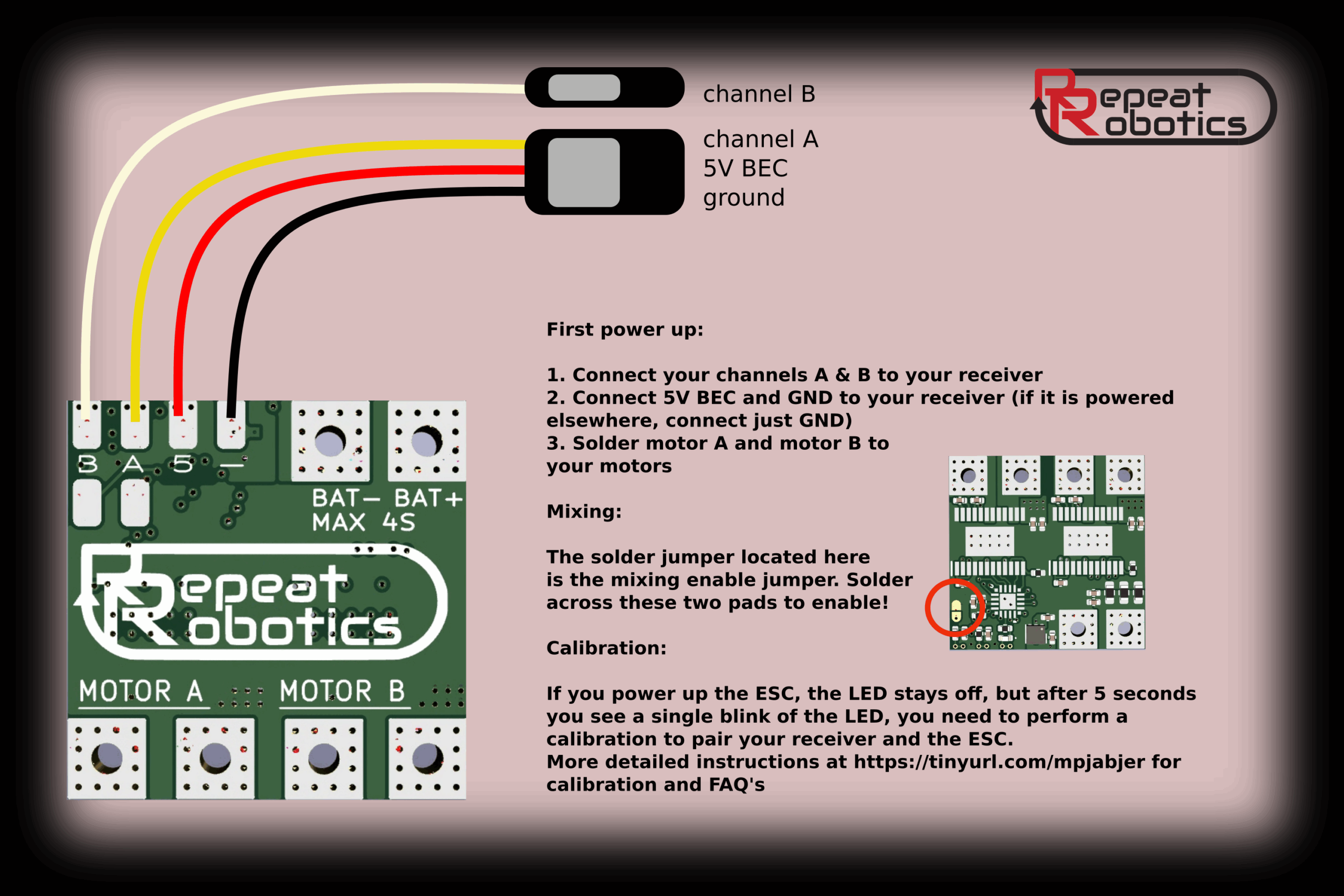

Take a look at the user guide here: tinyurl.com/mpjabjer
