Have you been looking for a super light and compact brushed drive solution? Weighing only 45g, Repeat Compact is the lightest Beetleweight grade brushed drive on the market! Save weight without sacrificing durability with a billet hardened steel output shaft!
Requires a 4mm wheel hub. Works with common 4mm hubs (Twist Hubs, Banebots T40/T81, Repeat Eco)
Pairs great with the Repeat 15A Dual Brushed ESC and Fingertech Mega Spark Mounts.
Features:
- Billet 4mm hardened steel shaft, 25mm length
- Dual bearings on the gearbox output shaft
- High power 130 motor
- 45.5g overall weight (before trimming shaft)
- Ring gear squared to 16.5mm flat to flat
- 22.6:1 gear ratio
- Standard 18mm mounting pattern with M2 threads.
- Rated Voltage 2S-4S
- Sold Individually
Performance:
- 12V input
- 1070rpm free speed
3.85kg.cm stall torque
4.3A stall current

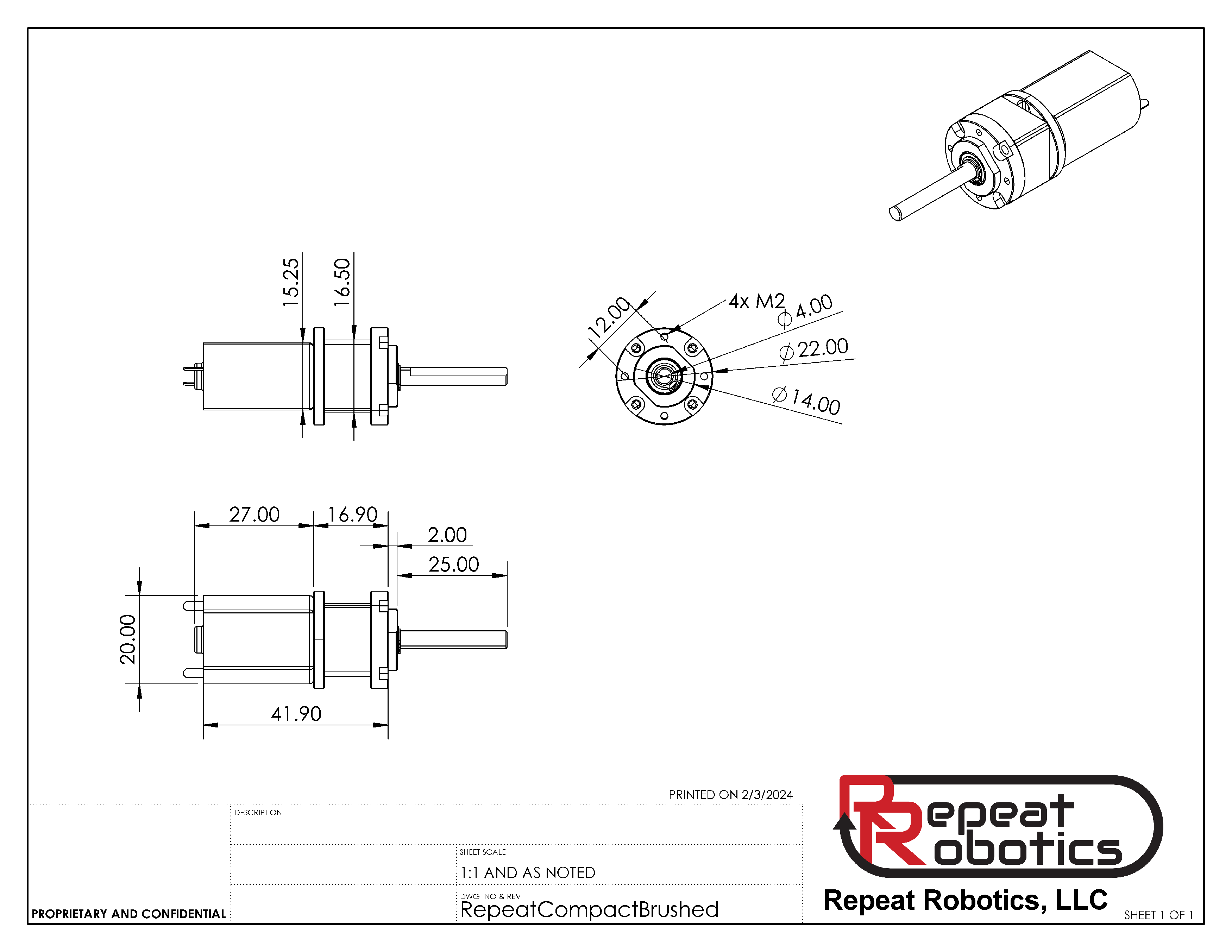

Cad Link:
https://grabcad.com/library/repeat-compact-brushed-1
