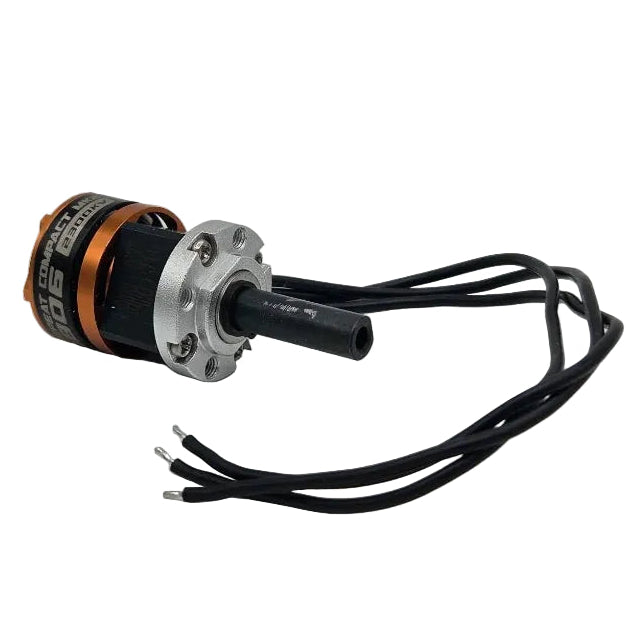

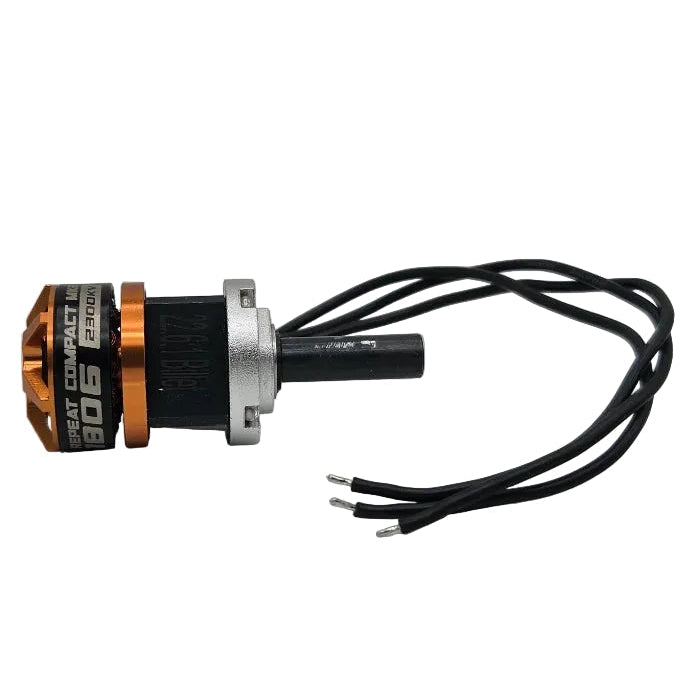

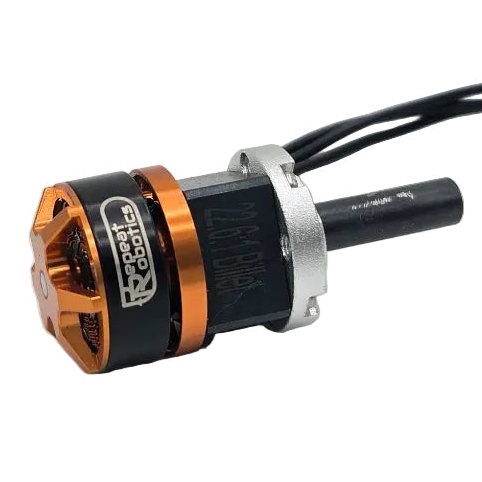

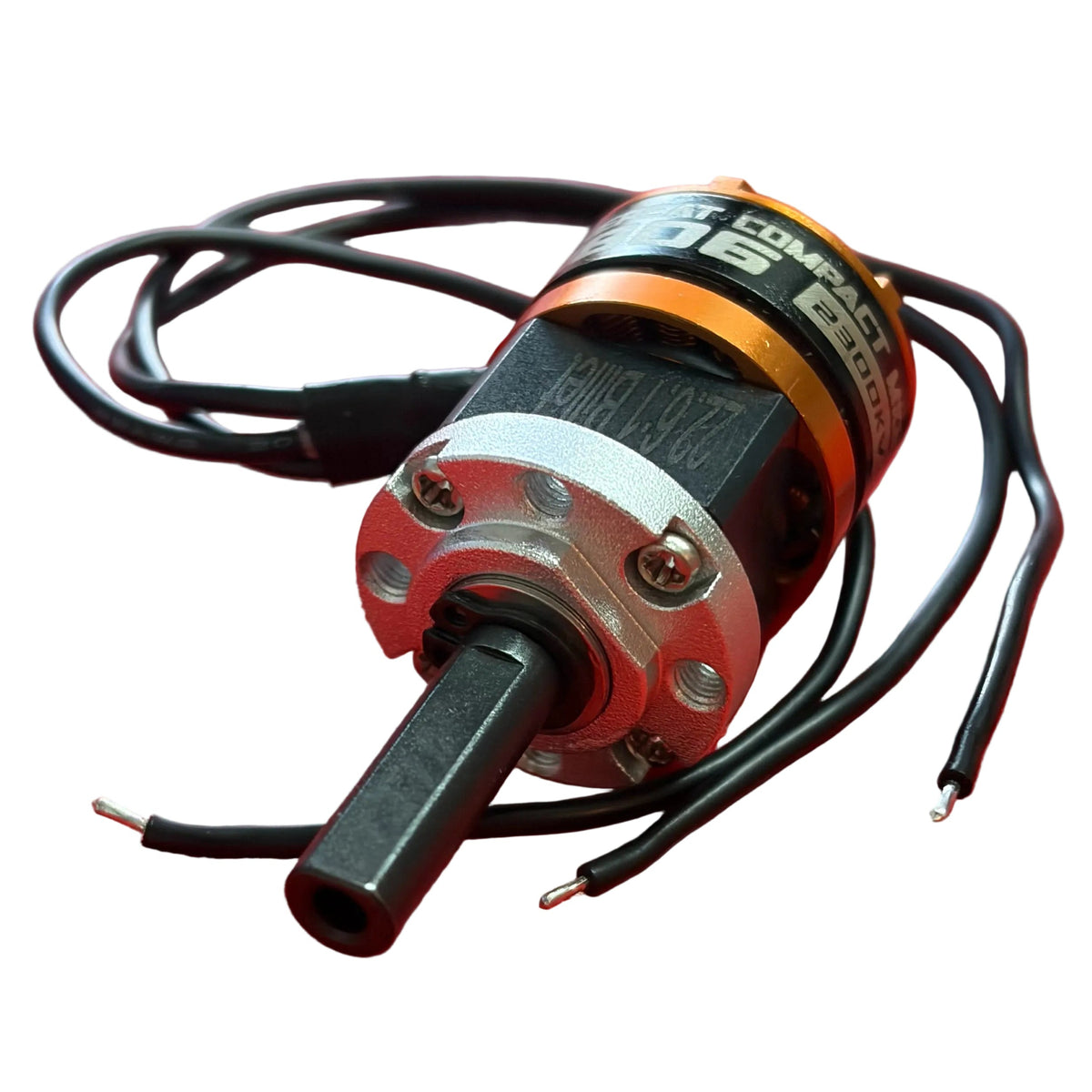

The Compact 1806 Mk2 is an upgradeed, lightweight planetary gearmotor engineered specifically for 3lb Beetleweight combat drive. Dropping weight down to just 42g, the Mk2 brings structural upgrades: a billet 6mm hollow output shaft, machined internal gearing, M3 mounting, 4-planet gears in the final stage, and a D-shaft motor pinion to eliminate pinion slip. Try one out today!
Features:
- Weight: 42g with full wires, 39.5g without wires
- 6mm hollow billet hardened steel shaft

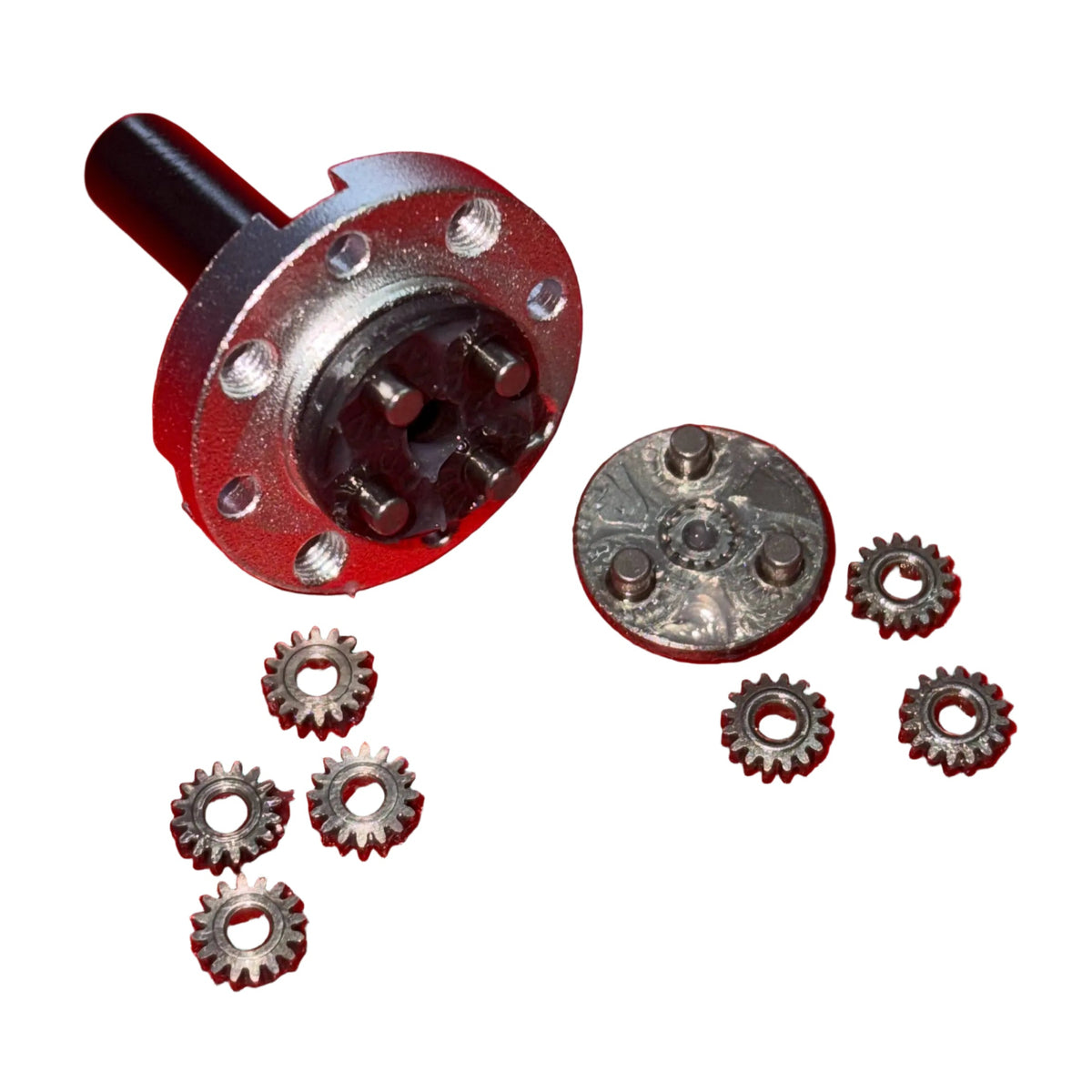

- Hobbed and hardened steel internal gearing
- 4 final stage gears for 33% more strength
- D-shaft pinion gear to eliminate pinion slip
- 4x M3 x 19mm mounting hole pattern
- 22.6:1 reduction ratio
- 2300kv 1806 redesigned for smaller size and lighter weight
- 1130 RPM on 3S, 1500RPM at 4S lipo
- Voltage Rating: 2-5S
Cad Link: Click Here
