The "Pro" gearbox has arrived in Ant class!!

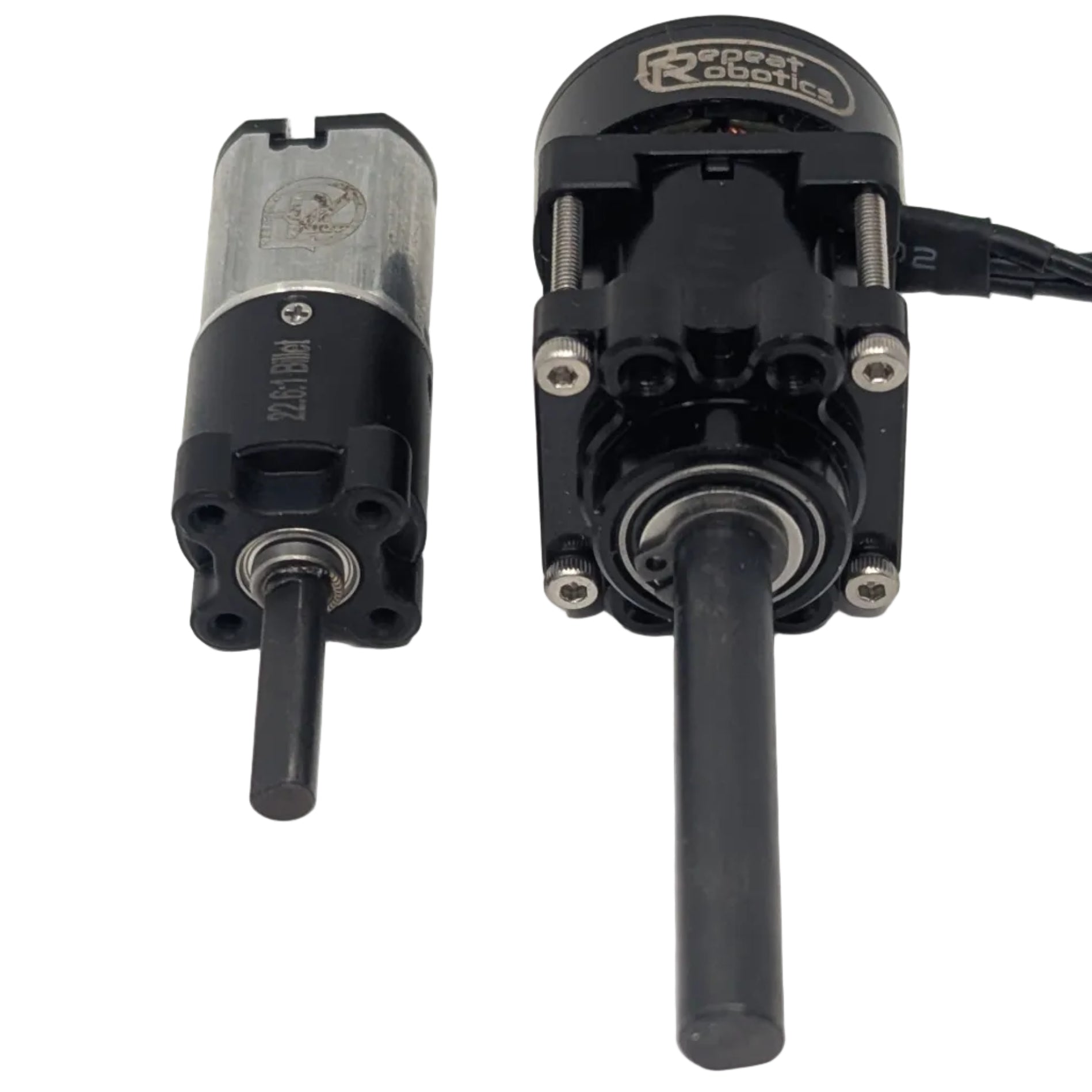

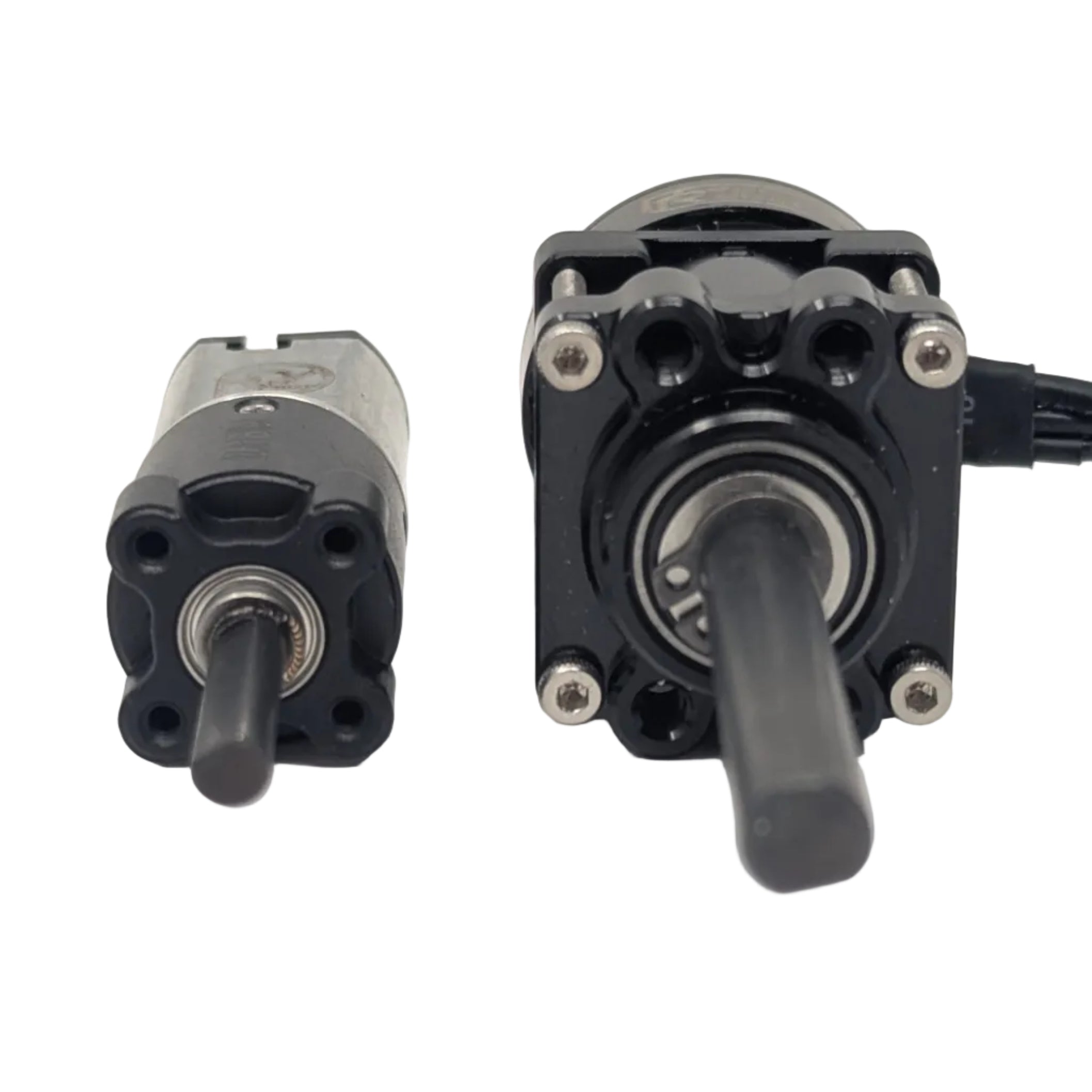

The Repeat Pro beetle drive has proven itself as an incredibly durable gearbox many times over. It's become the go to for durability and performance in the beetle class. Check out the included side by side pictures of the Mini Pro and Beetle pro to see the comparison.
Now, it's been scaled to ant size as a great upgrade to standard 16mm motors. It comes with a beefy 4mm shaft exiting from an all metal custom designed gearbox. Note that these are not a standard mounting pattern and require you make your own mounts or add proper mounting holes to your frame.
Requires a 4mm wheel hub. Works with common 4mm hubs (Twist Hubs, Banebots T40/T81, Repeat Eco)
Features:
- Sold Individually

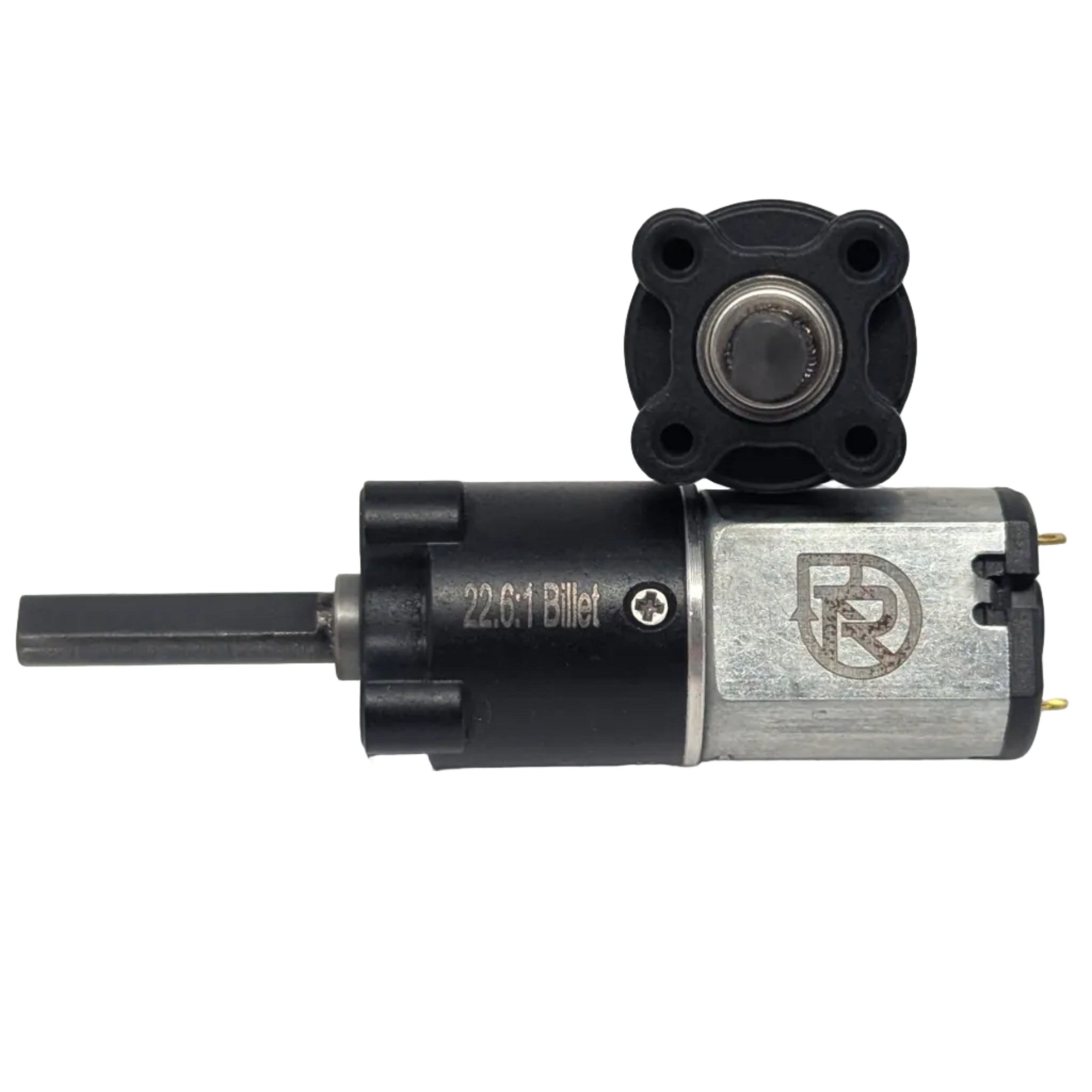

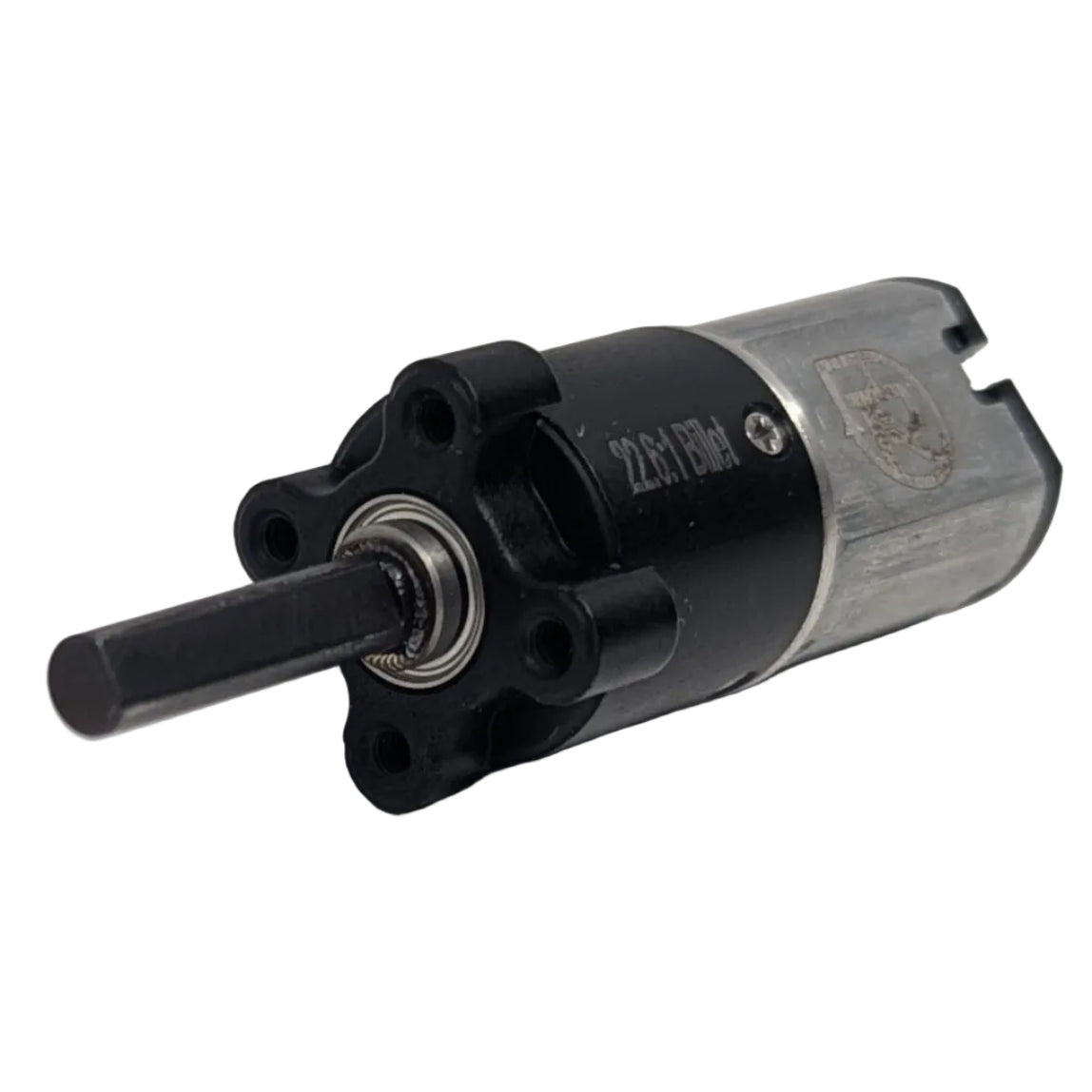

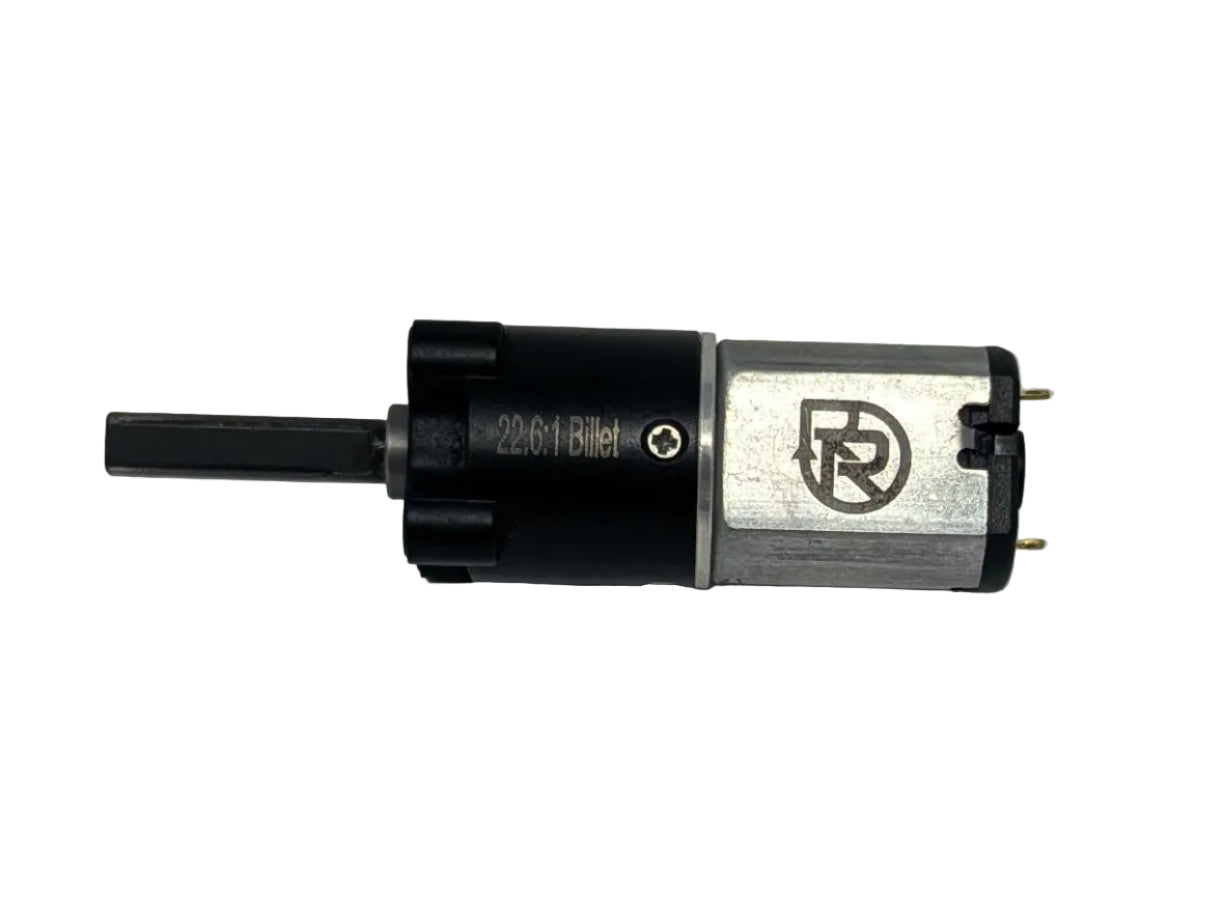

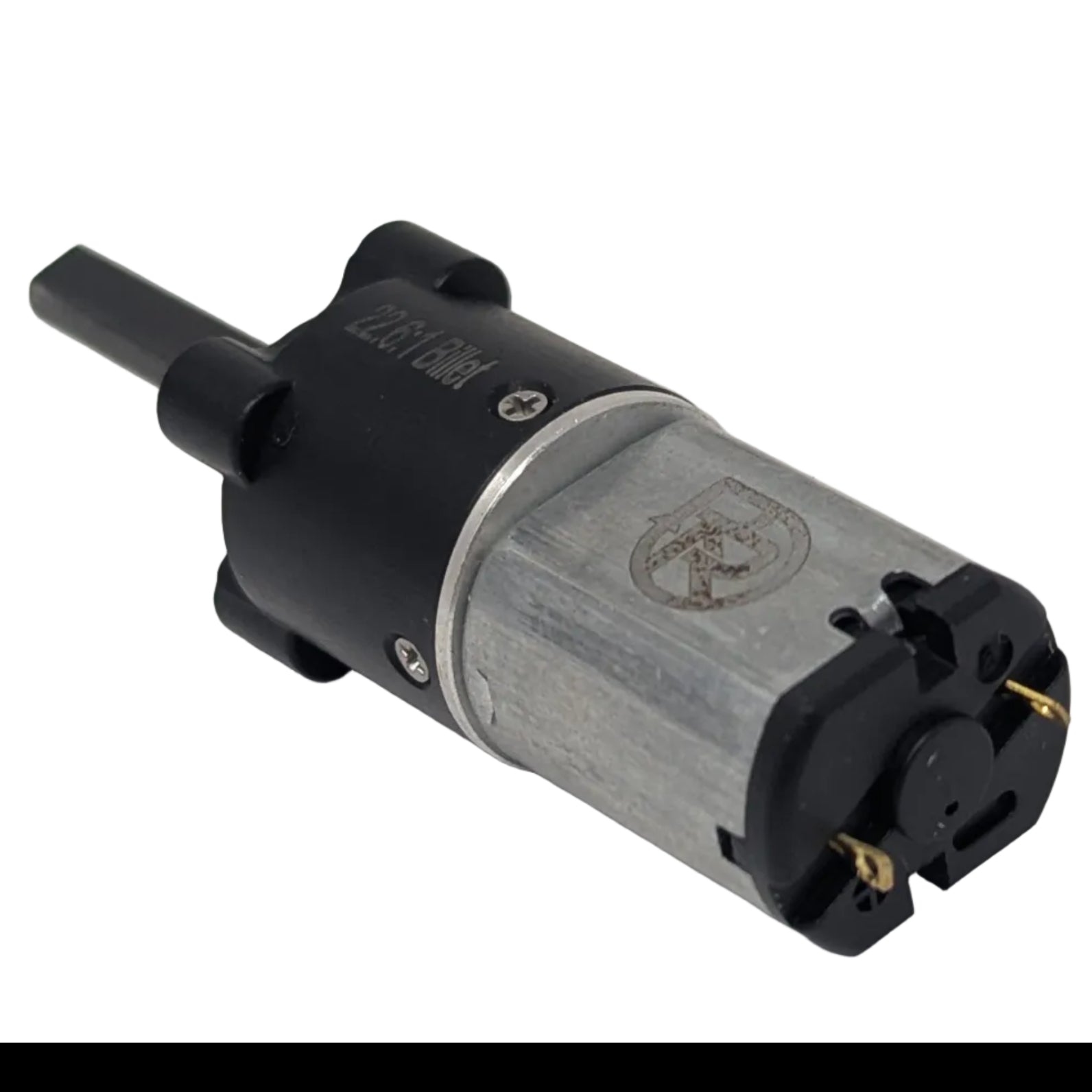

- 16mm diameter, 22.6:1 all metal planetary gearbox
- 2s-4s rated voltage

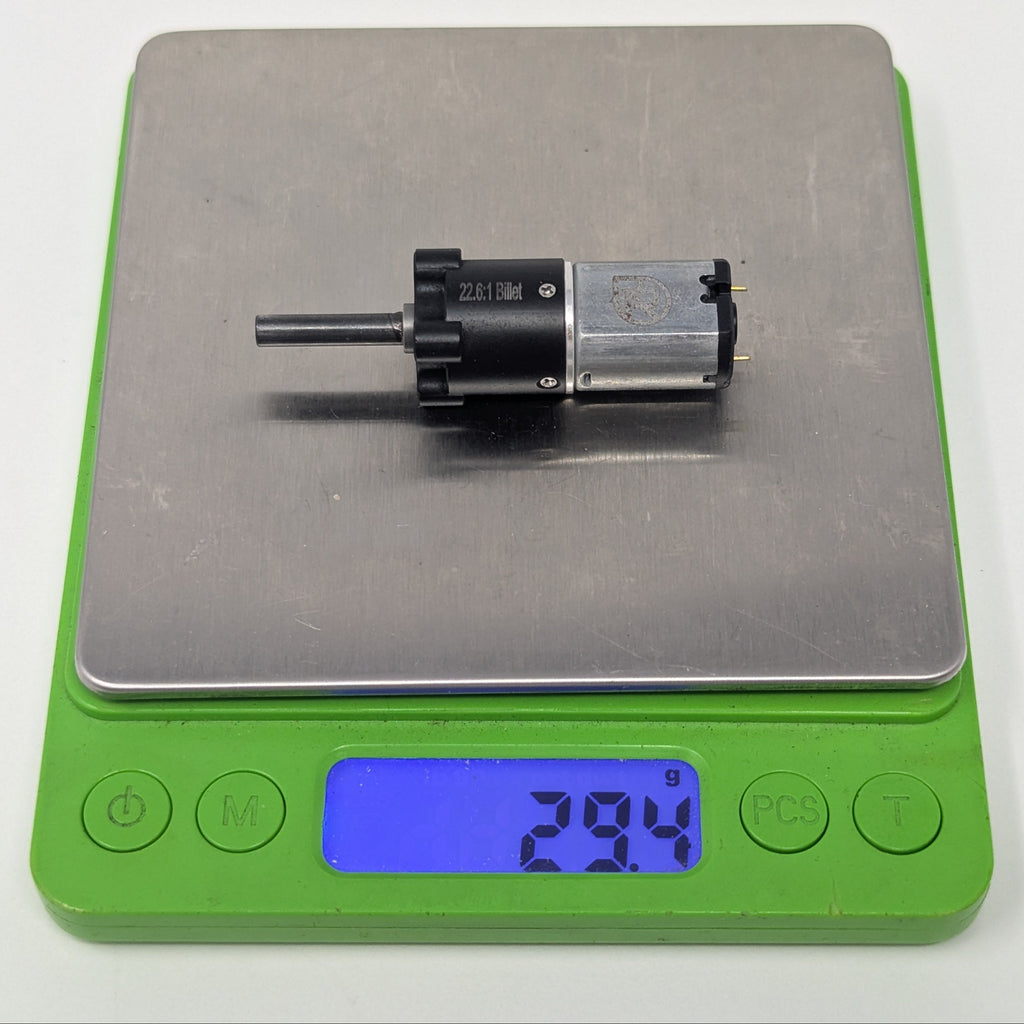

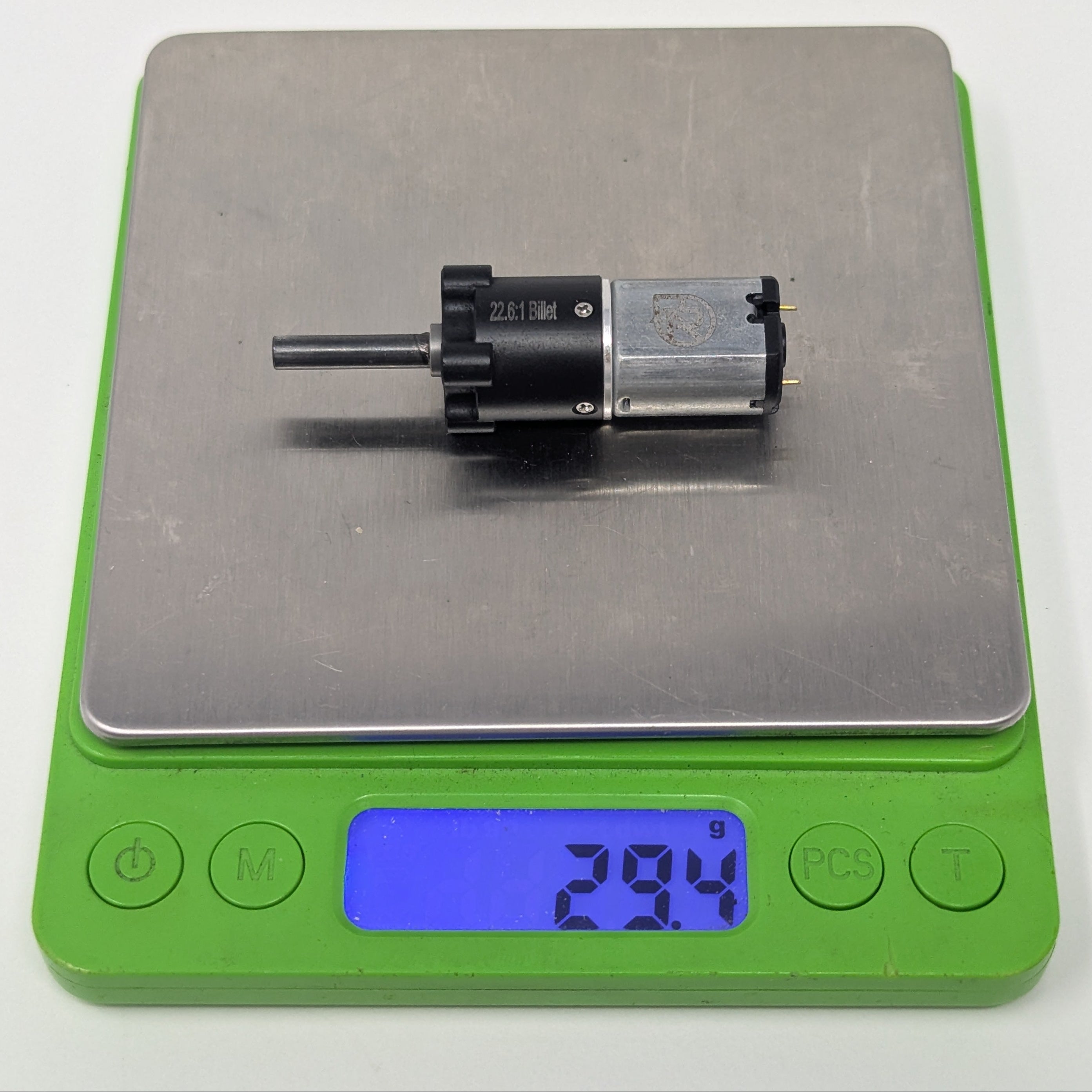

- 29.7g weight

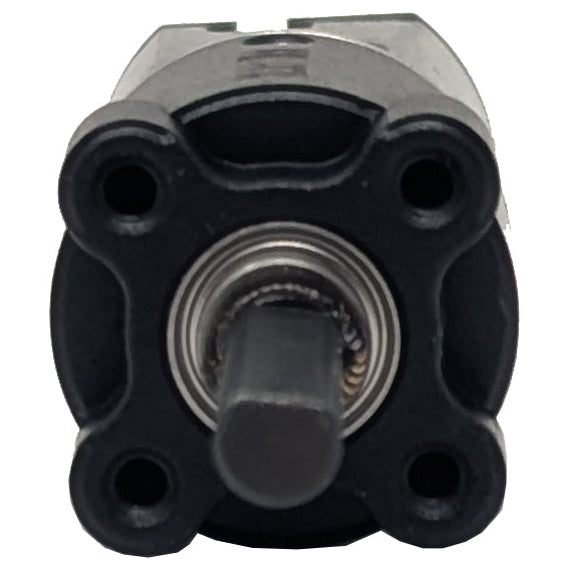

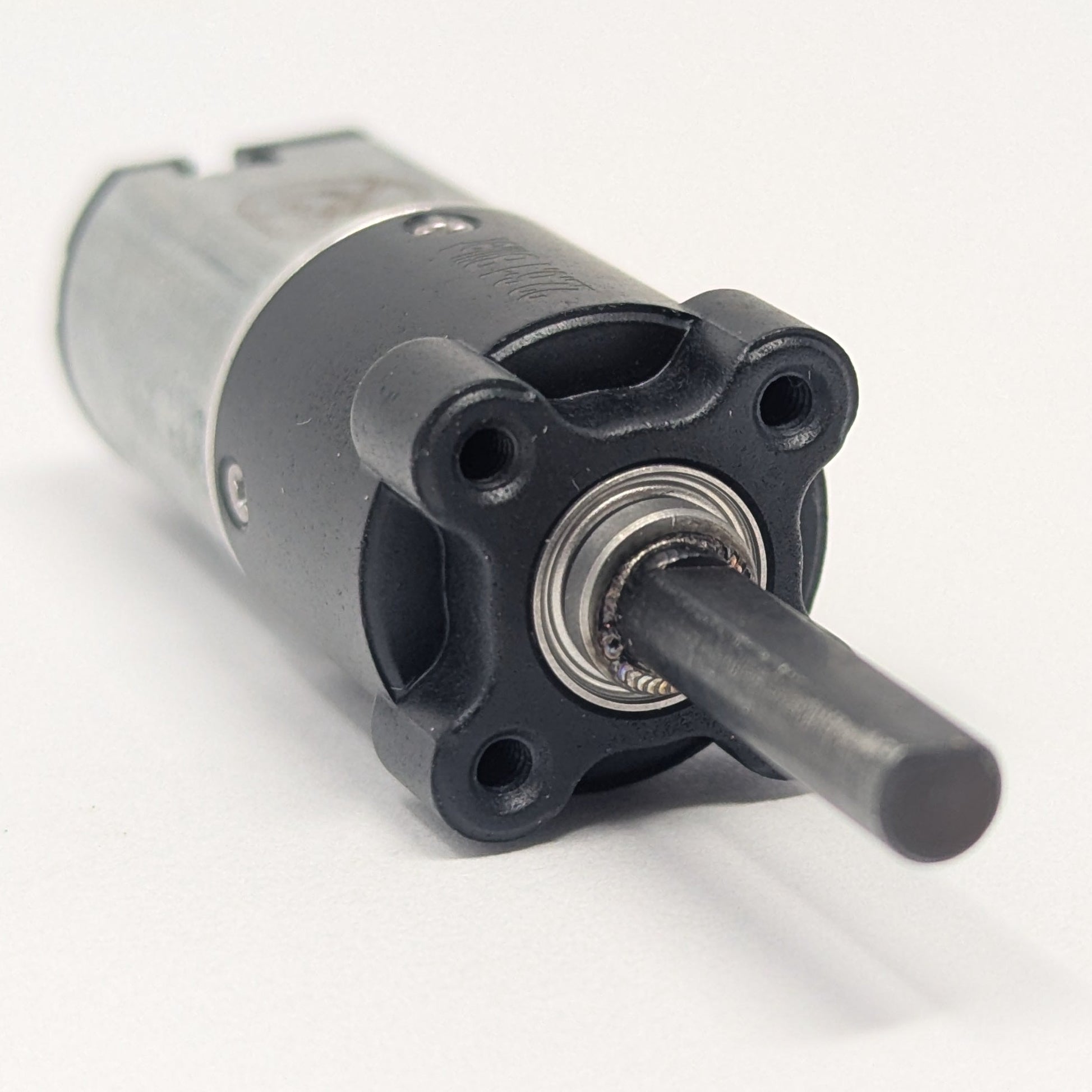

- Four lobed mounting pattern on the face makes for easy clamp mounting
- Dual ball bearings supporting the output shaft
- 4mm hardened steel billet output shaft
- 4 final stage planet gears (vs the standard 3)
- Machined planet gears for added durability
- 4x M2 tapped hole on a 14mm circle for mounting
- Custom wound 030 brushed motor
- Comes ready for combat, just solder the motor to the esc leads and you’re on your way.
- Sold Individually
- CAD Link: Click Here
Performance:
- 12V input (3S)
- 1220rpm free speed
- 2A stall current
- 1187 g.cm stall torque
- 3.72W maximum power output
- 7.4V input (2S)
- 14.8v input (4S)
