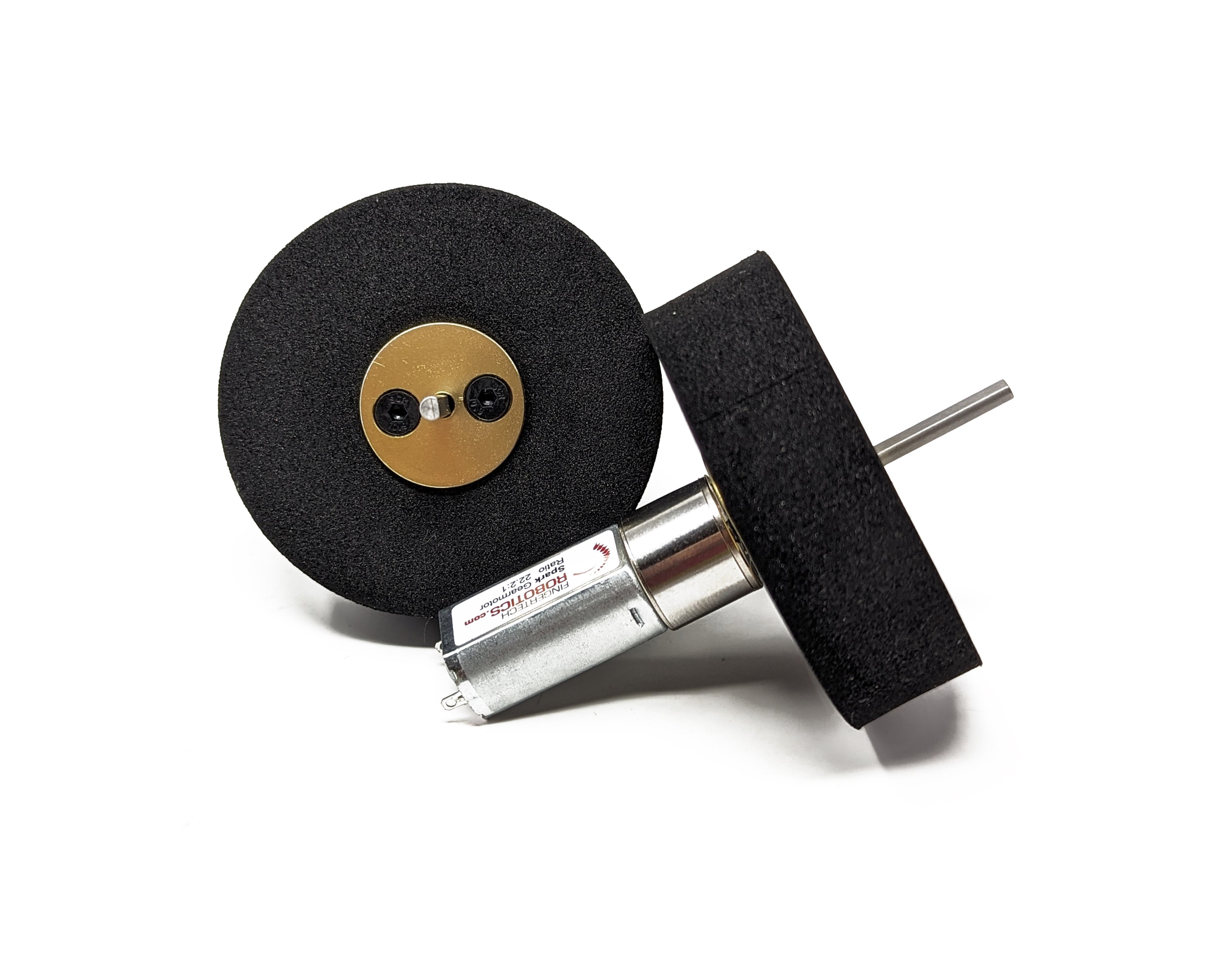

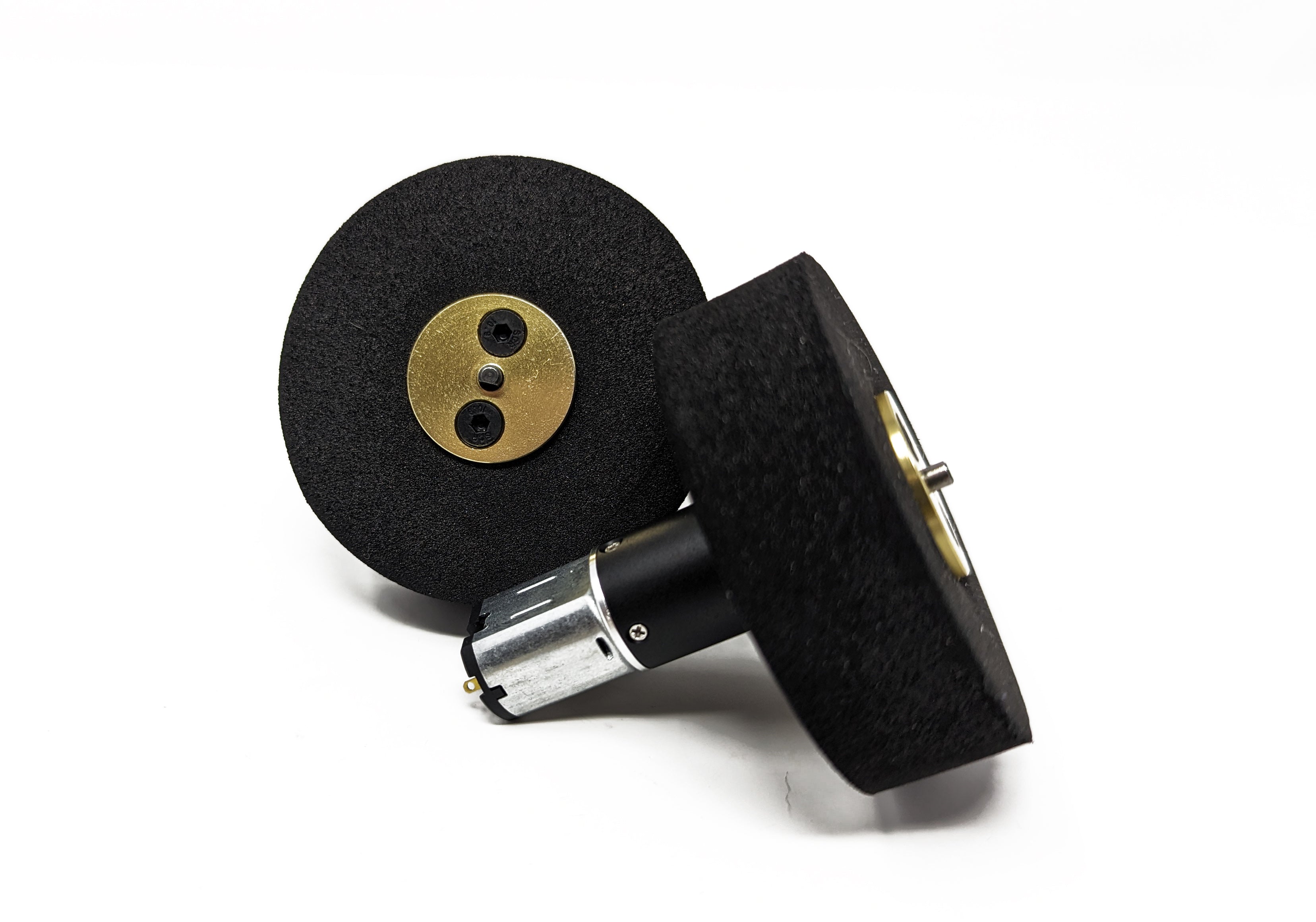

Want some cool GOLD wheels for your robot? Here's your chance and with added functionality over standard hubs, and at a lower price.
- Made from gold anodized 6061-T6 aluminum
- End plate screws in with 2x M3 x 8mm flathead screws
- 0.75″ size hubs are held onto the shaft with 2x oversized M4 x 4mm setscrews
- 0.5″ size hubs are held onto the shaft with 1x oversized M4x4mm setscrews
- Come with holes for 3mm or #4 screws to mount a pulley to the inside of the hub
- Made for either 0.5″ or 0.75″ thick foam wheels
- New with V2
- Chamfer added to make installation easier
- New: Changed spline pattern to reduce wheel deformation
- New: Added rib on inner surface to prevent rubbing on chassis
-
Weight
- 3mm x 0.50″ – 13.7g
- 4mm x 0.50″ – 13.4g
- 3mm x 0.75″ – 17.85g - THIS ITEM
- 4mm x 0.75″ – 17.4g
- 6mm x 0.75″ – 12.45g
Find the 3D model here: https://grabcad.com/library/repeat-gold-eco-hub-mk2-1
