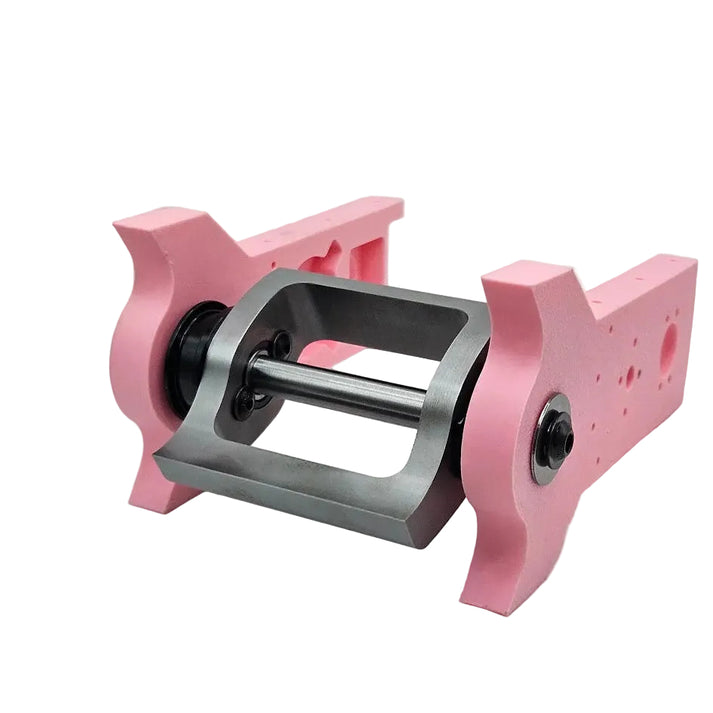

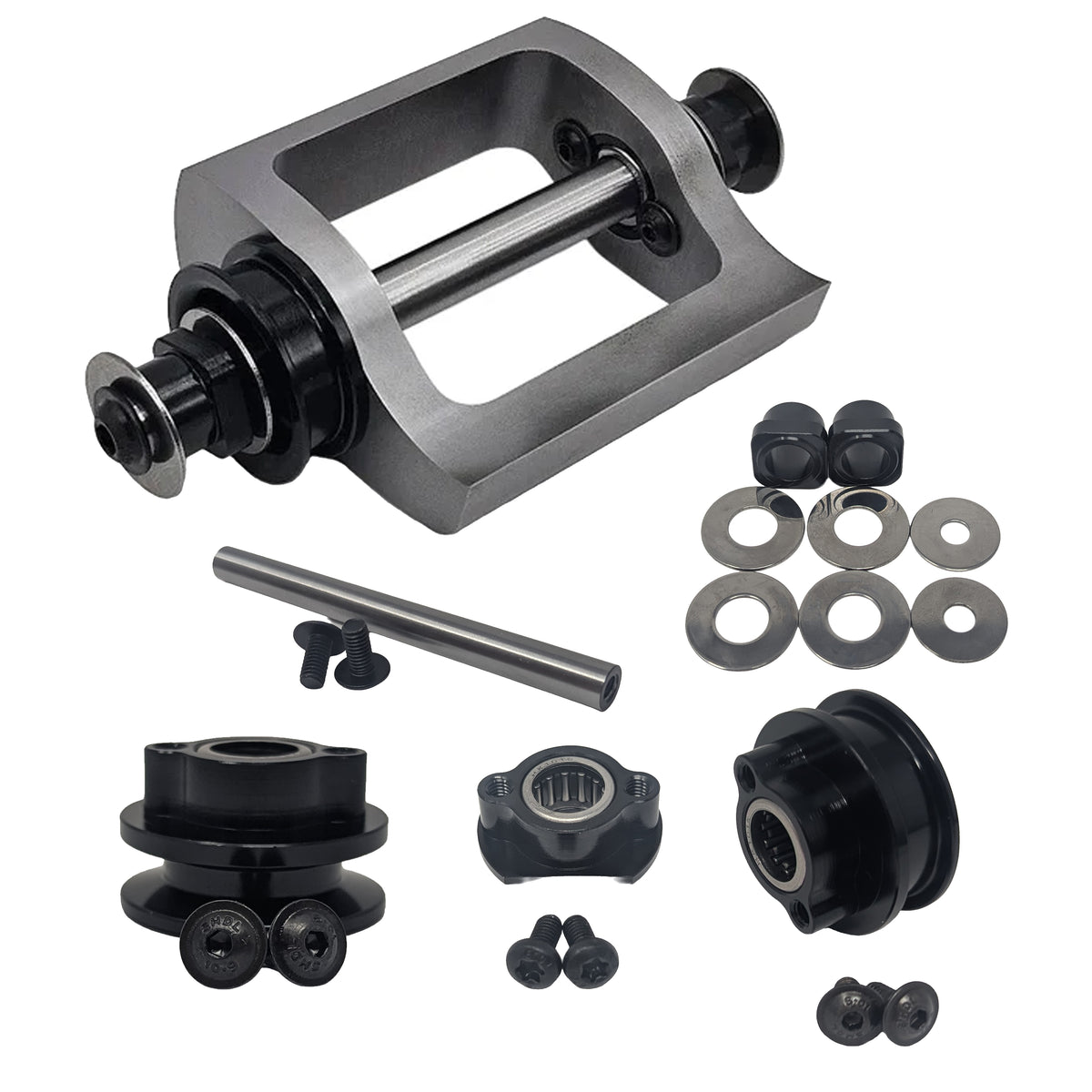

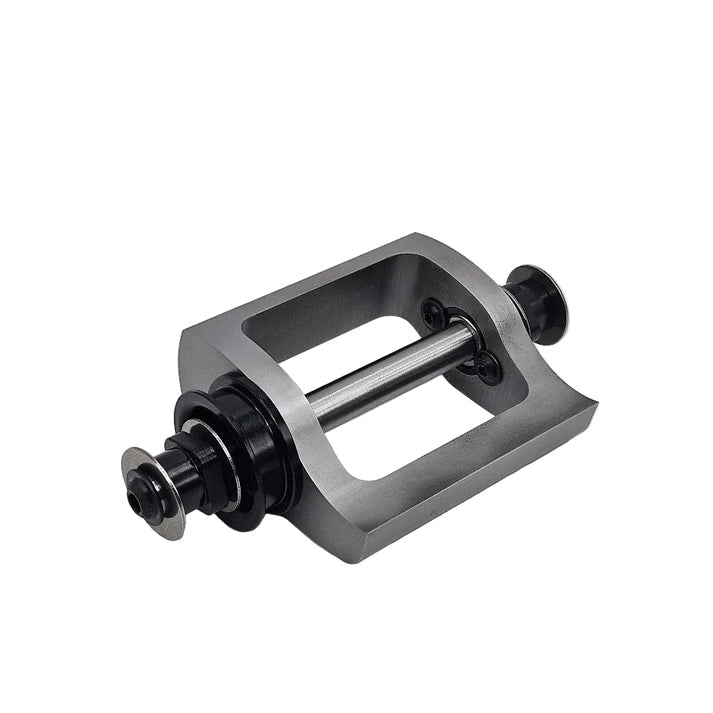

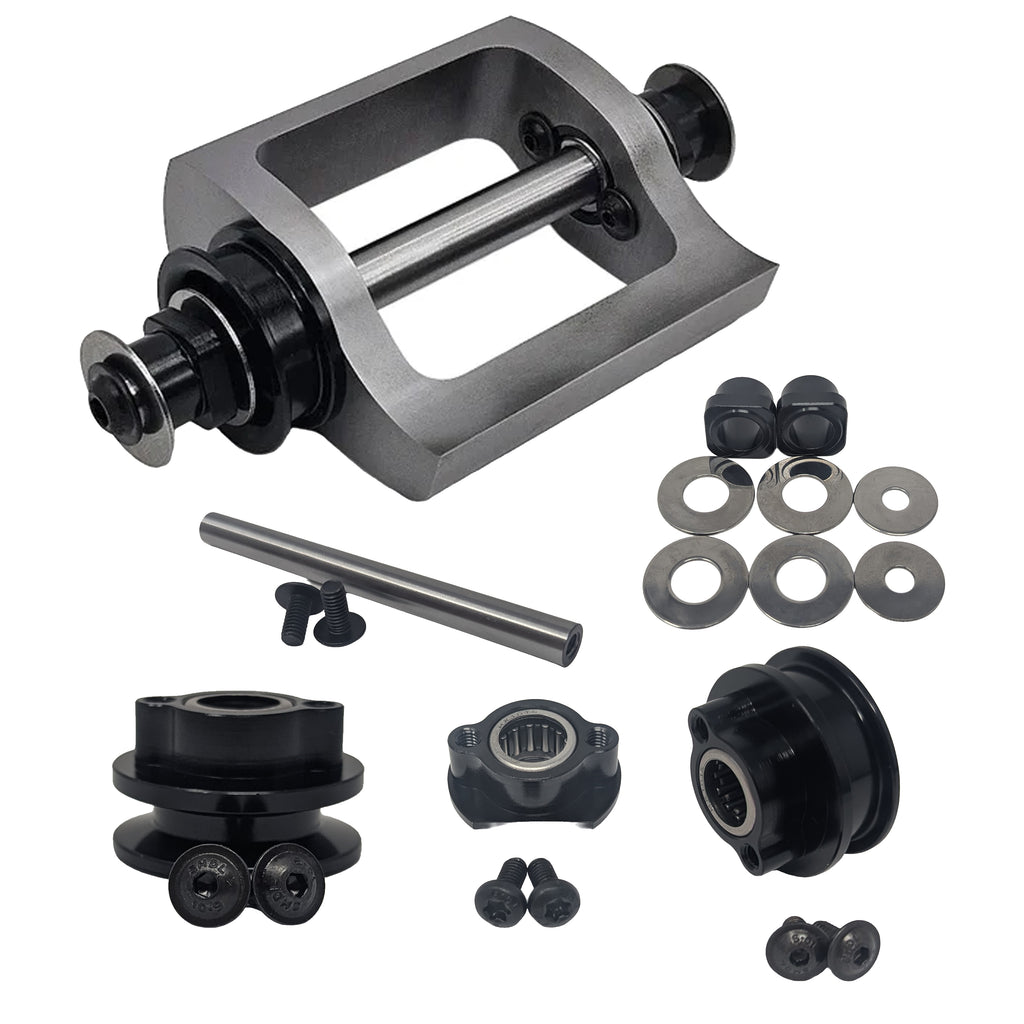

All the bits and pieces needed to run the Repeat Beetle Beater Bar system. Or, use them on your own creation. Details on each item below. The common setup consists of a pulley, a side insert, 10mm Frame Inserts & the 10mm Shaft

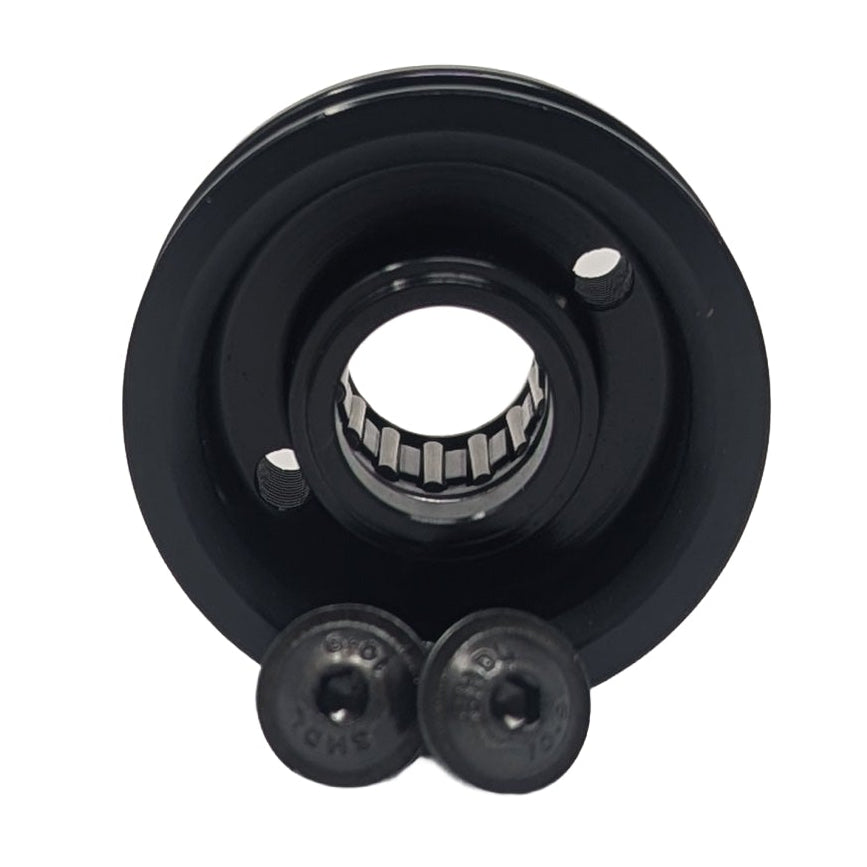

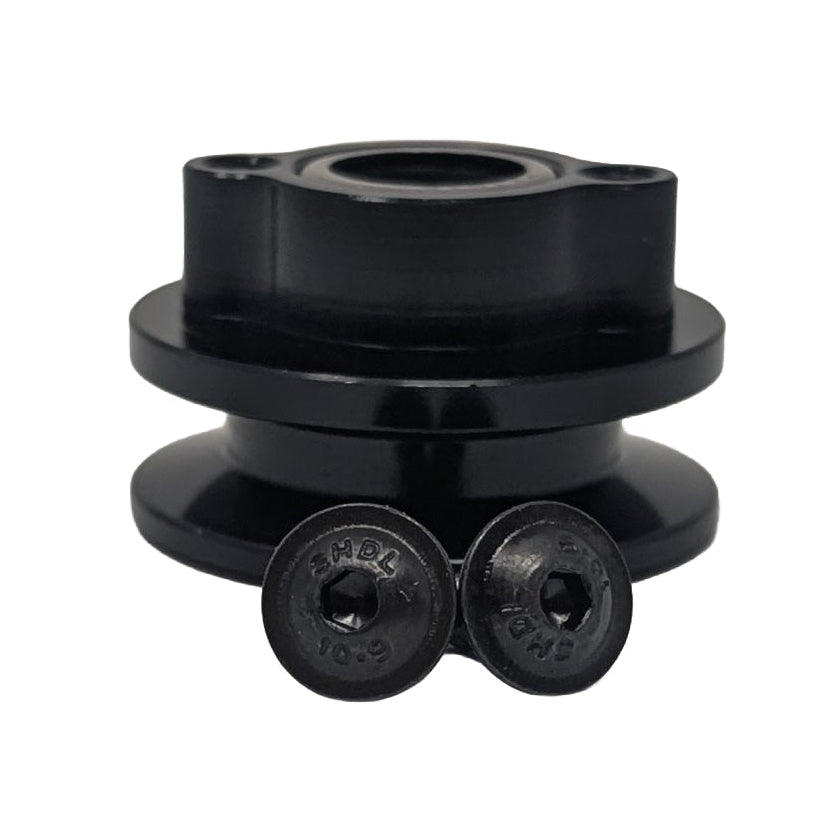

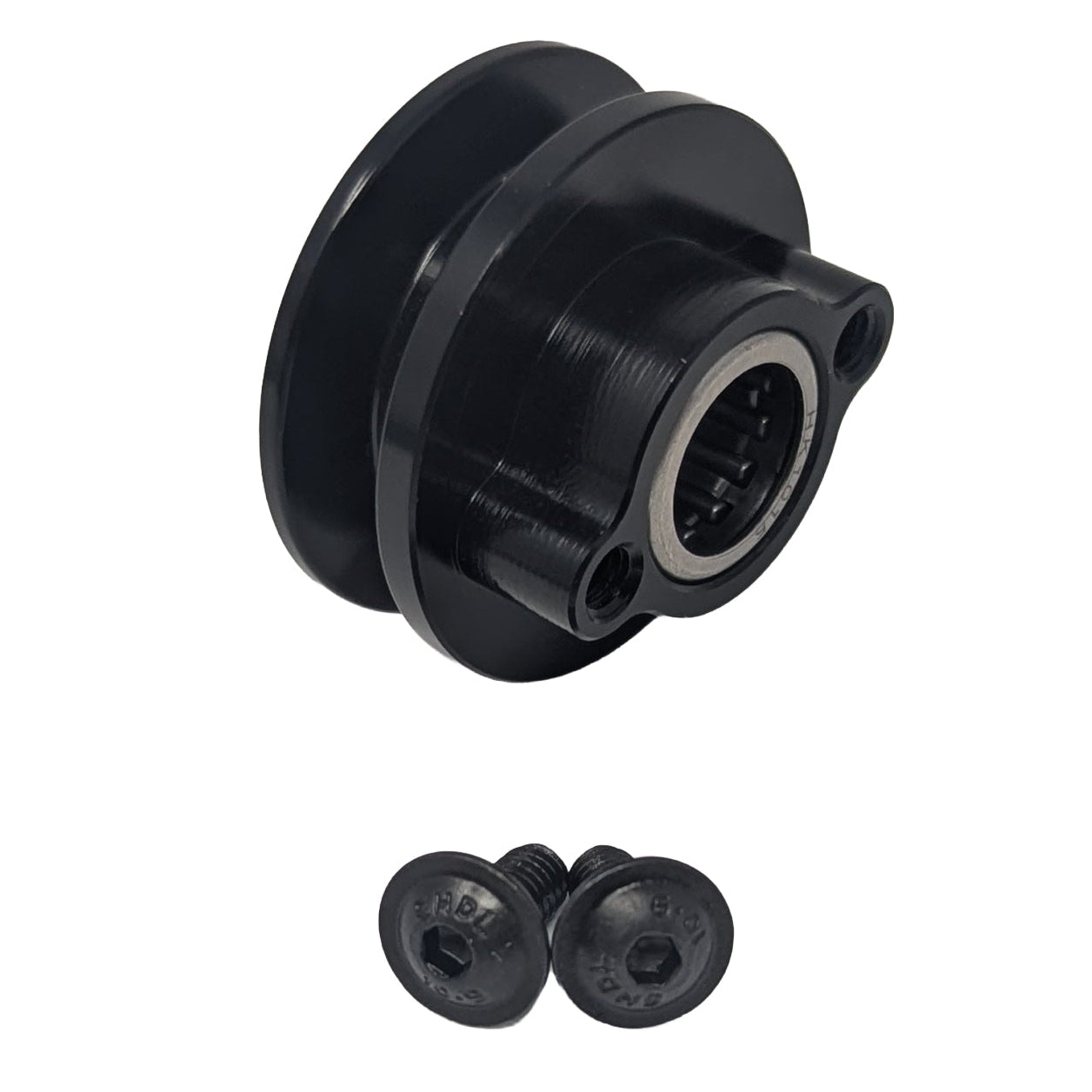

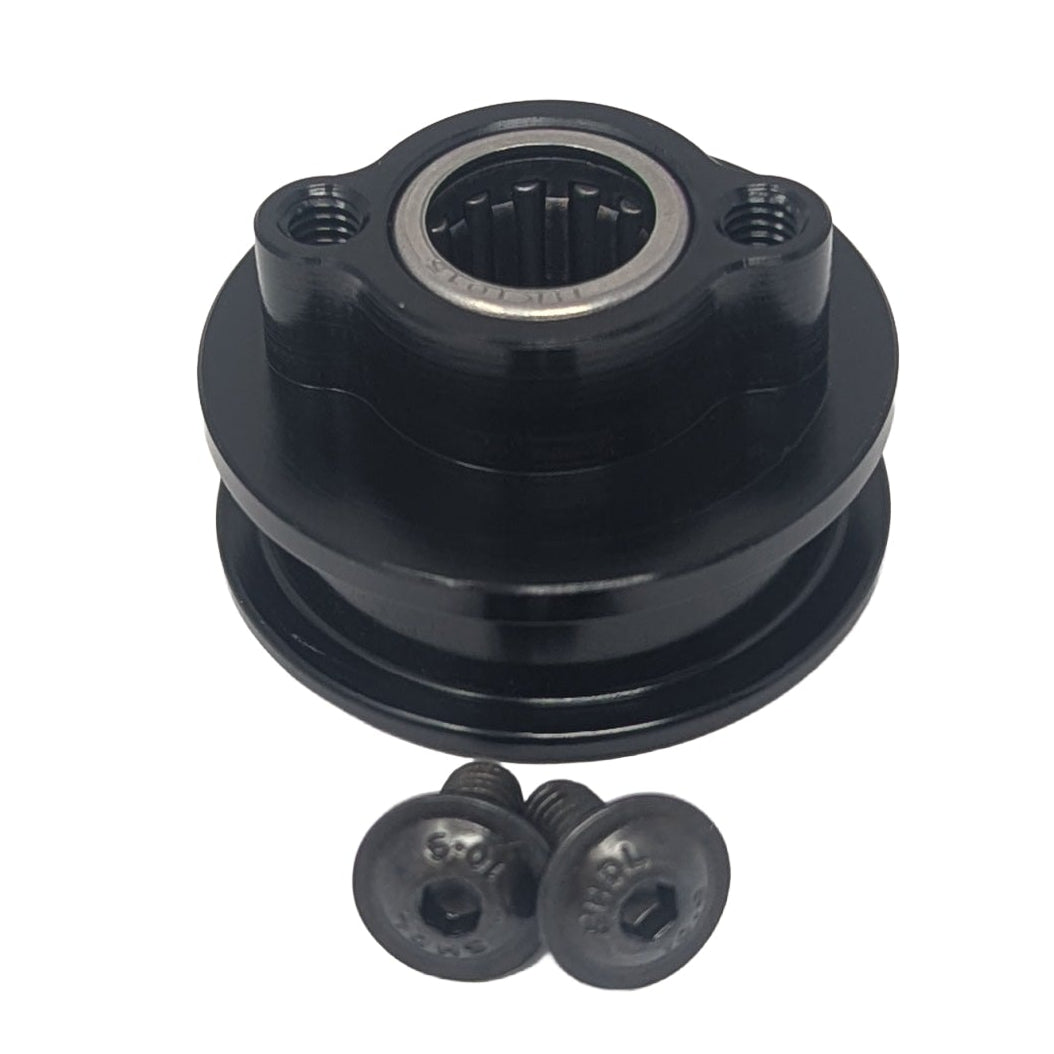

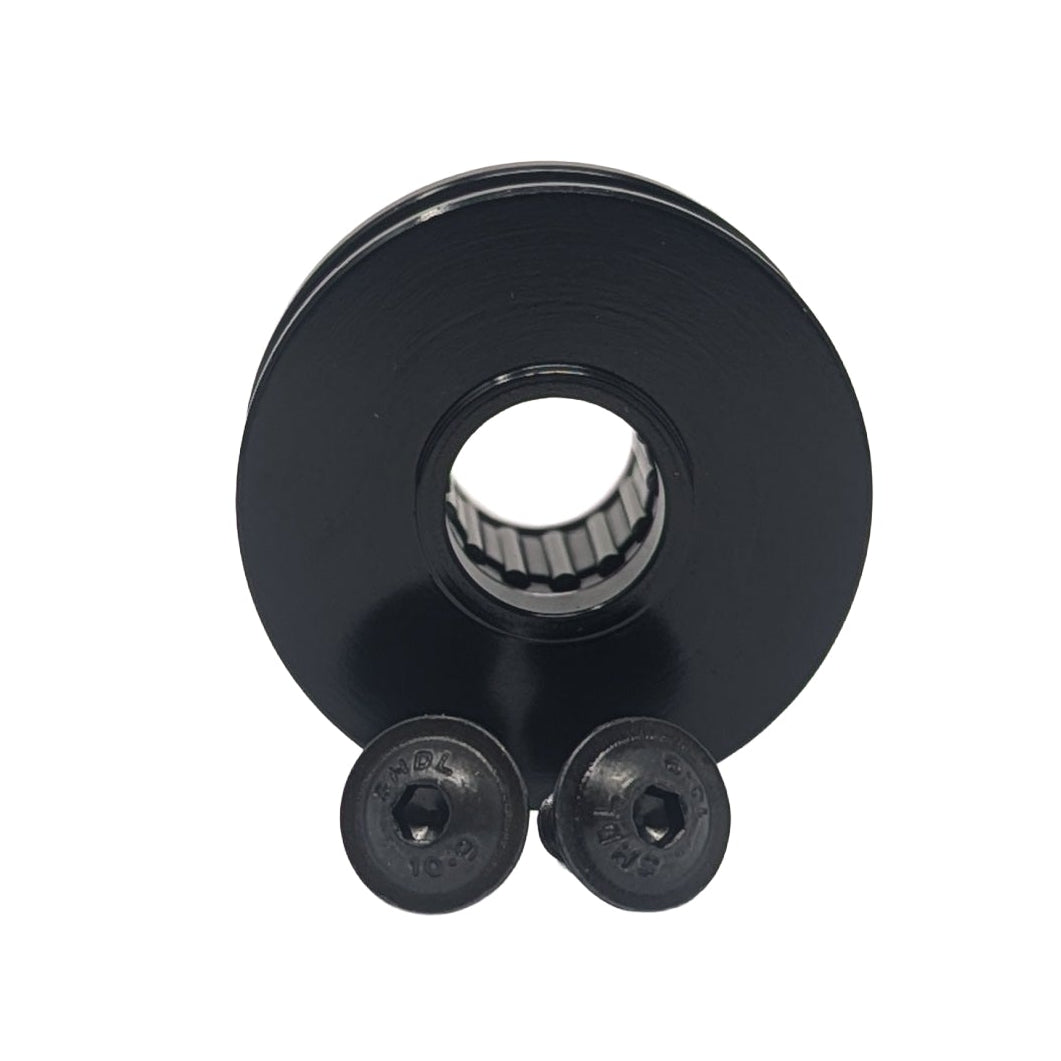

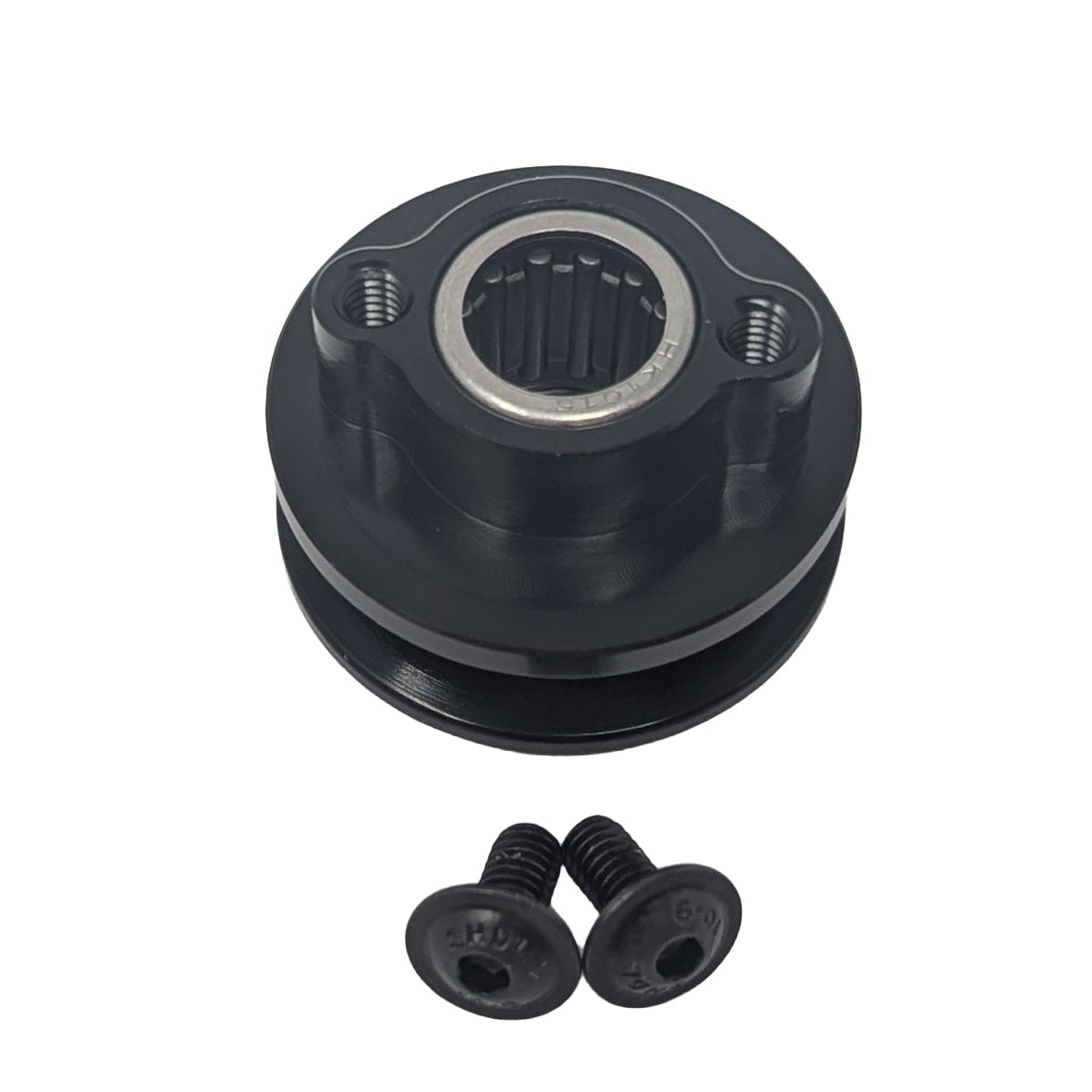

MB30 V Belt Pulley Inserts
- Includes 2x M4 screws to attach to beater bar
- V-belt pulley diameter - 30mm
- Weight (with screws): 24.8g

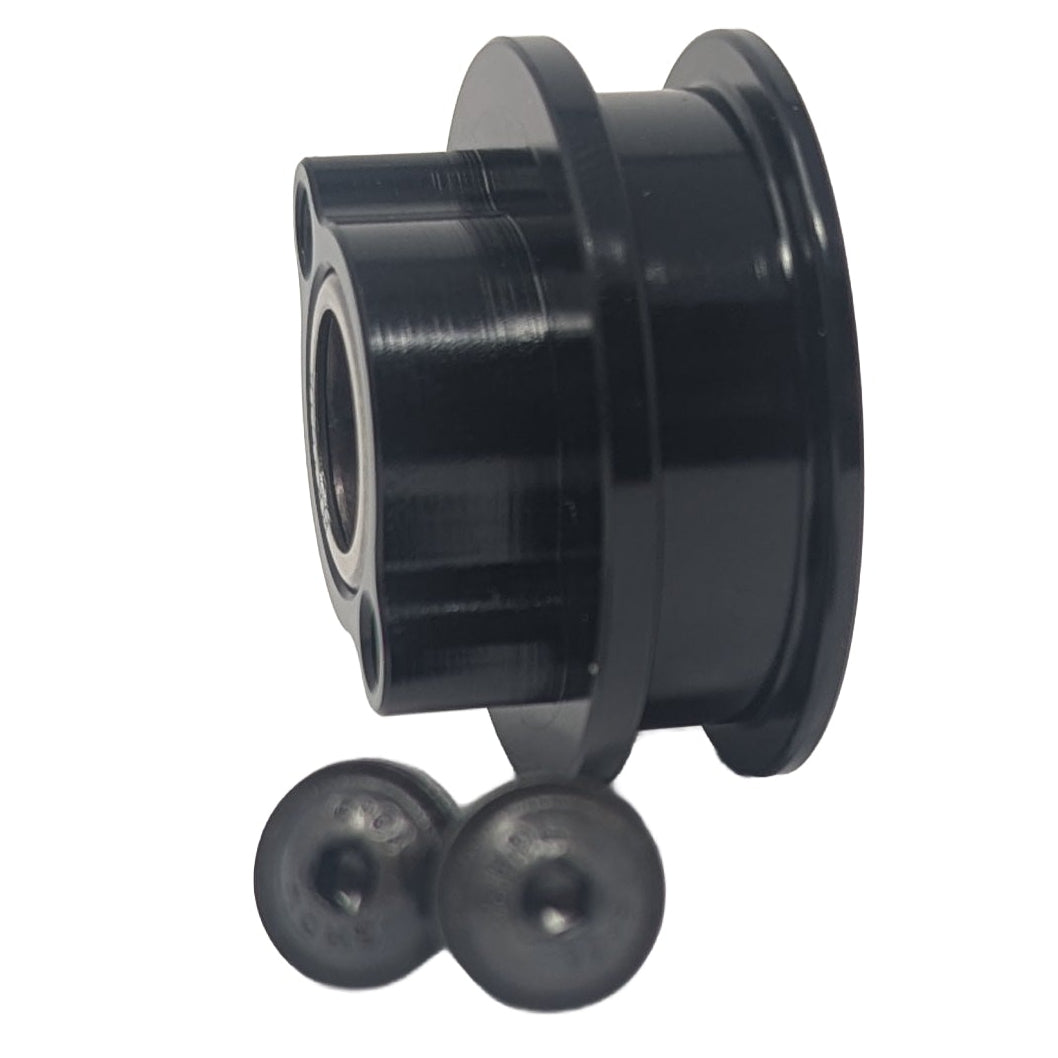

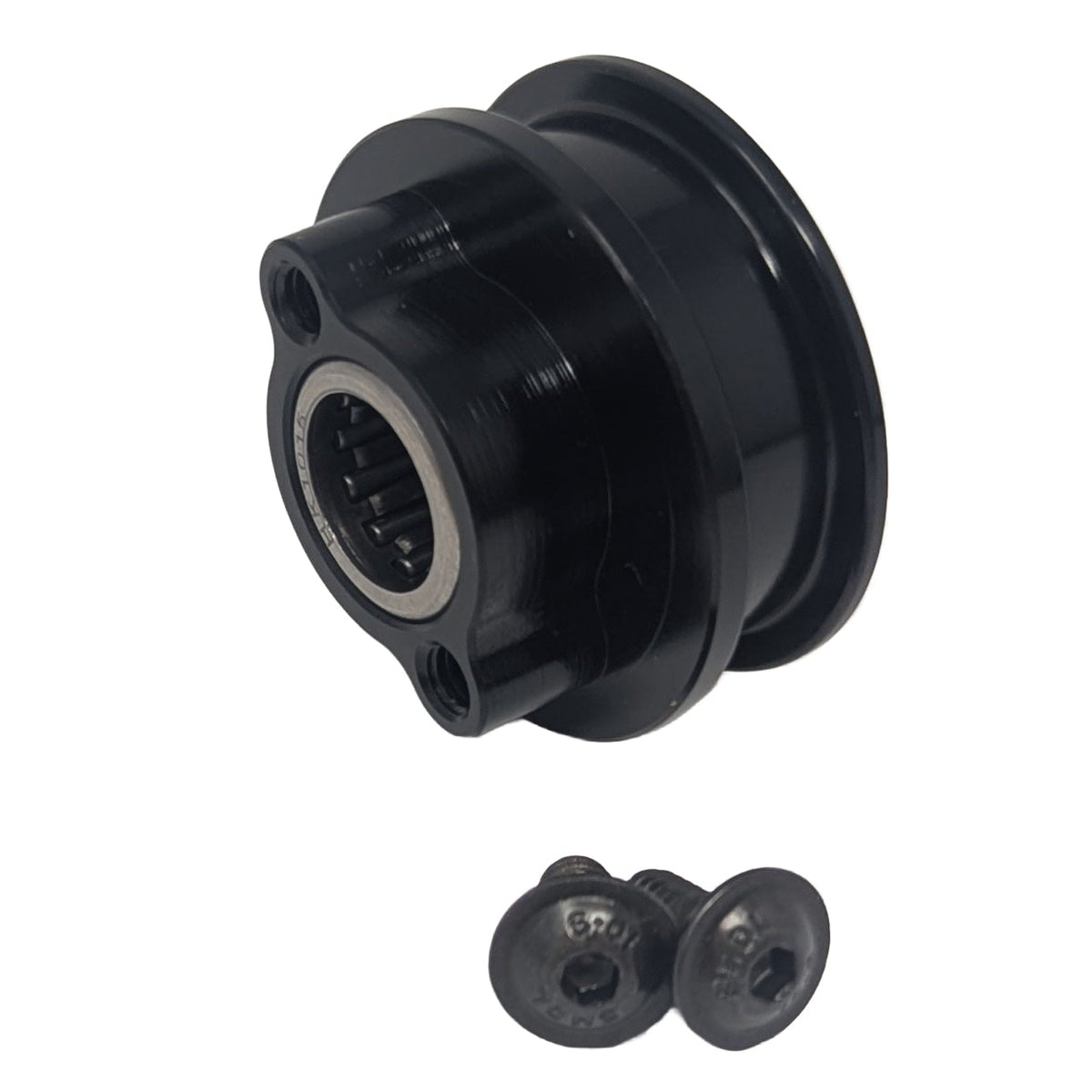

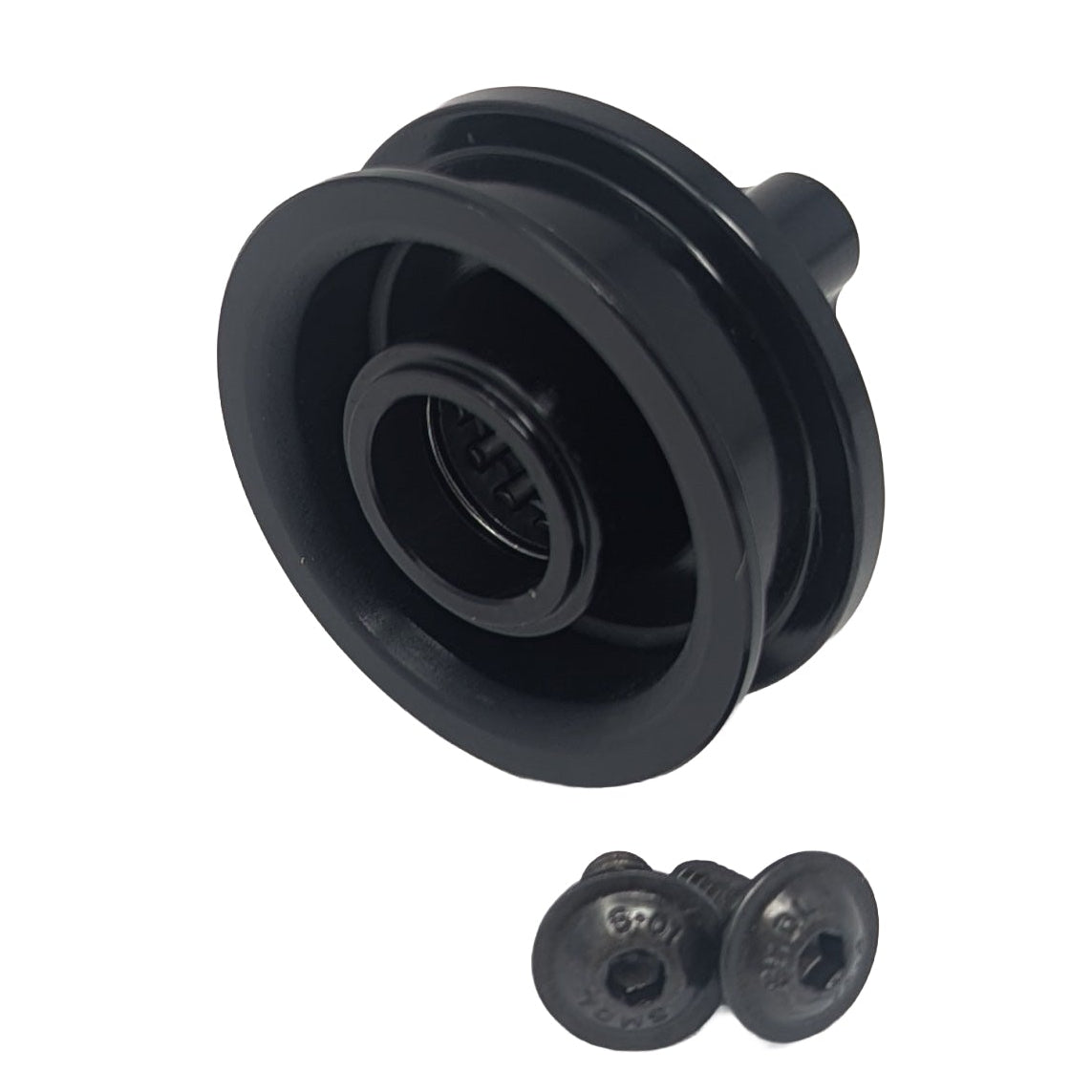

Flat Belt Pulley Inserts
- Includes 2x M4 screws to attach to beater bar
- Flat belt pulley diameter - 28mm
- Weight (with screws): 21.2g
- Made for use with 0.25" wide belts.

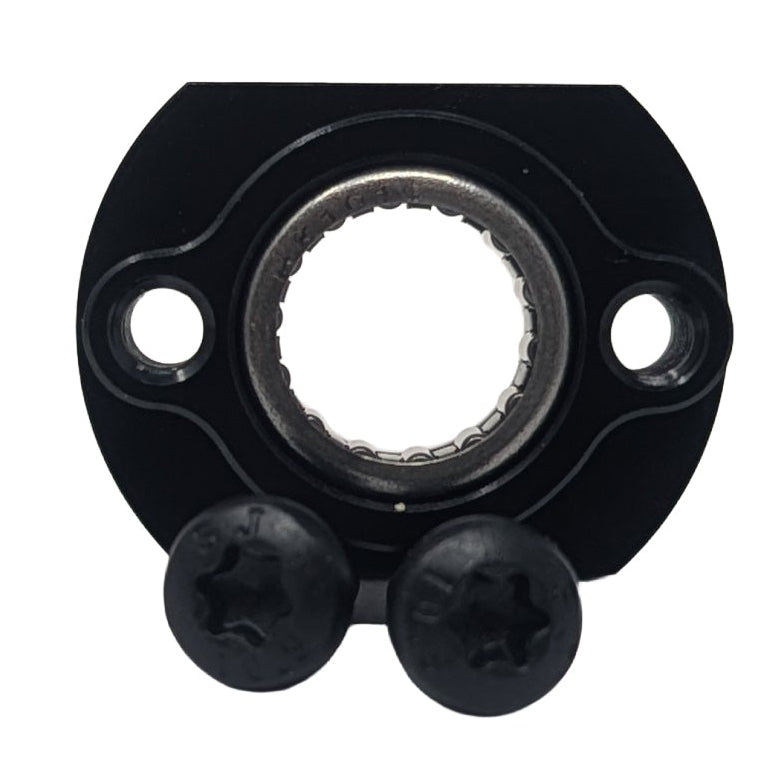

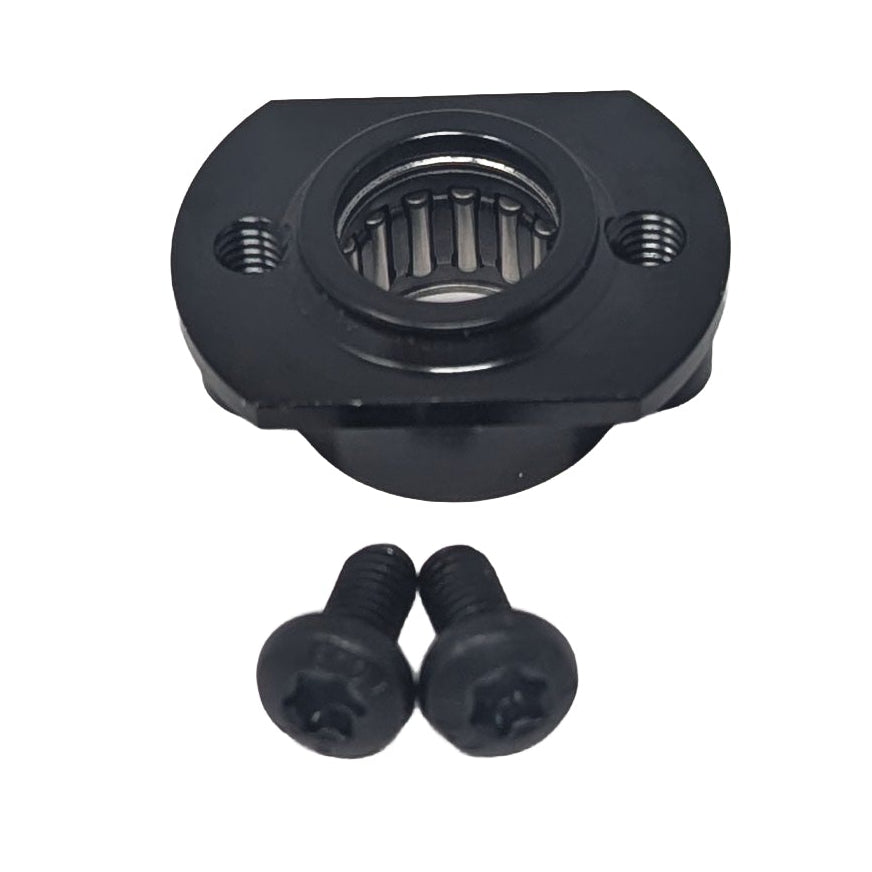

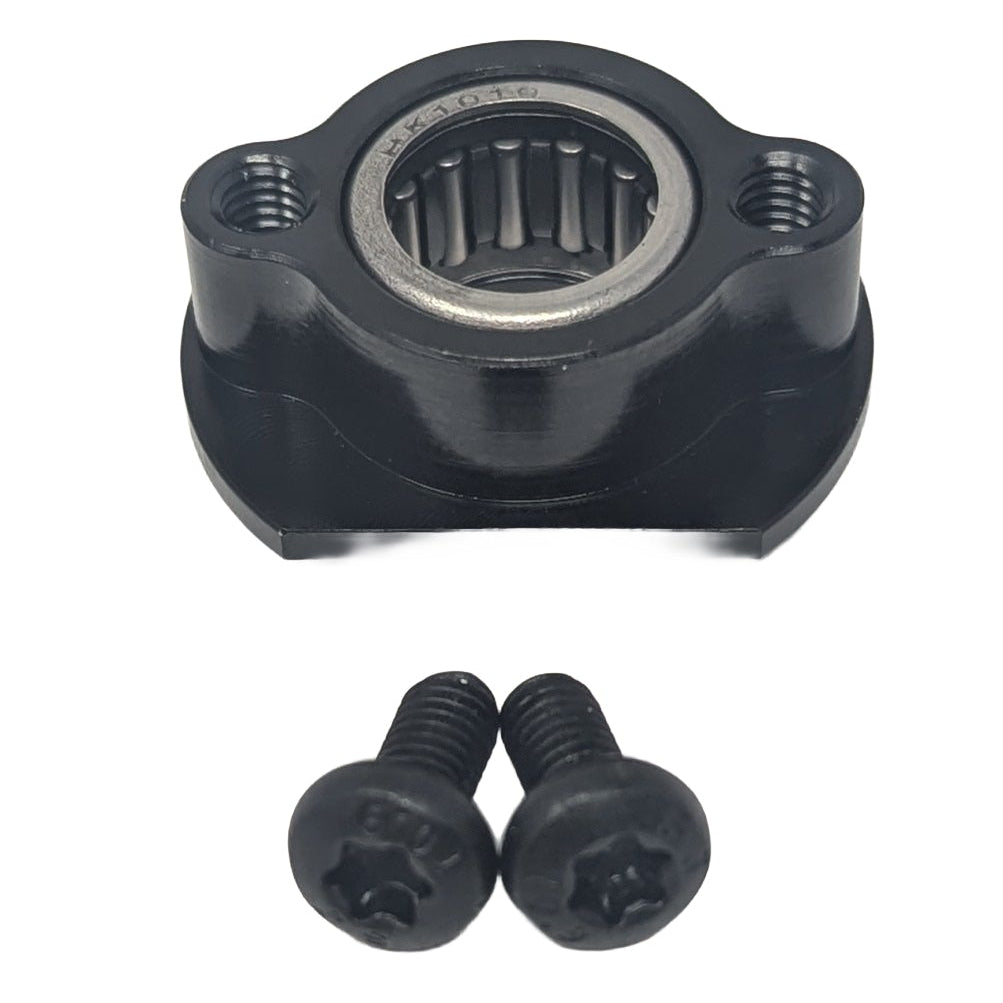

Side Insert
- Includes 2x M4 screws to attach to beater bar
- Weight (with screws): 11g

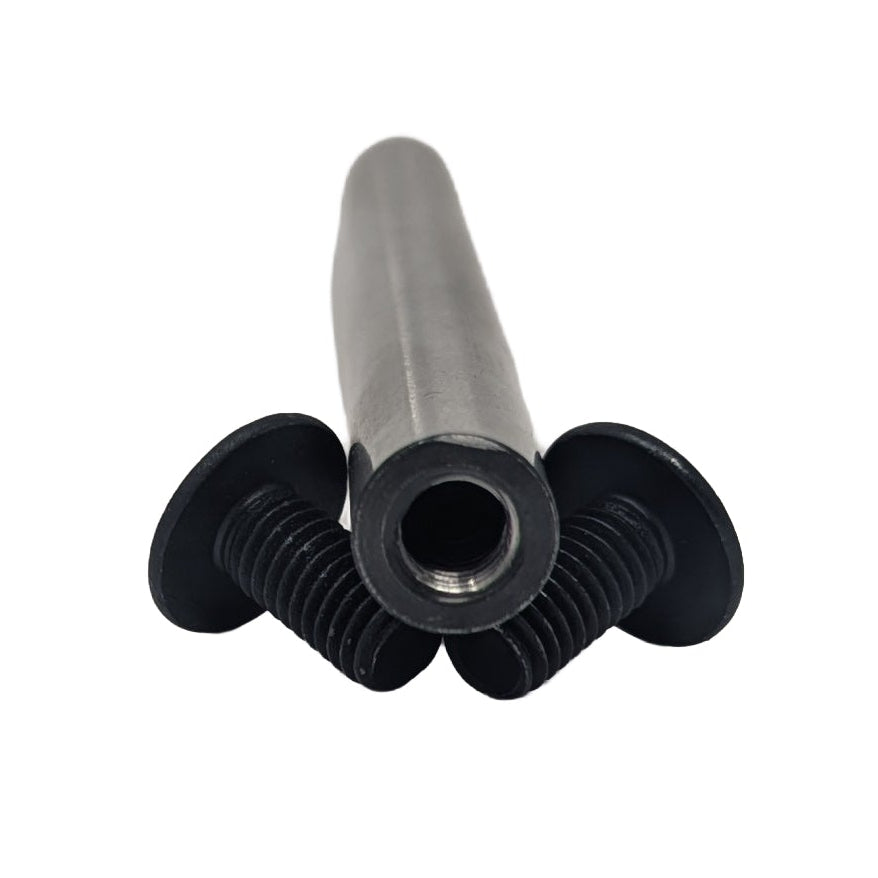

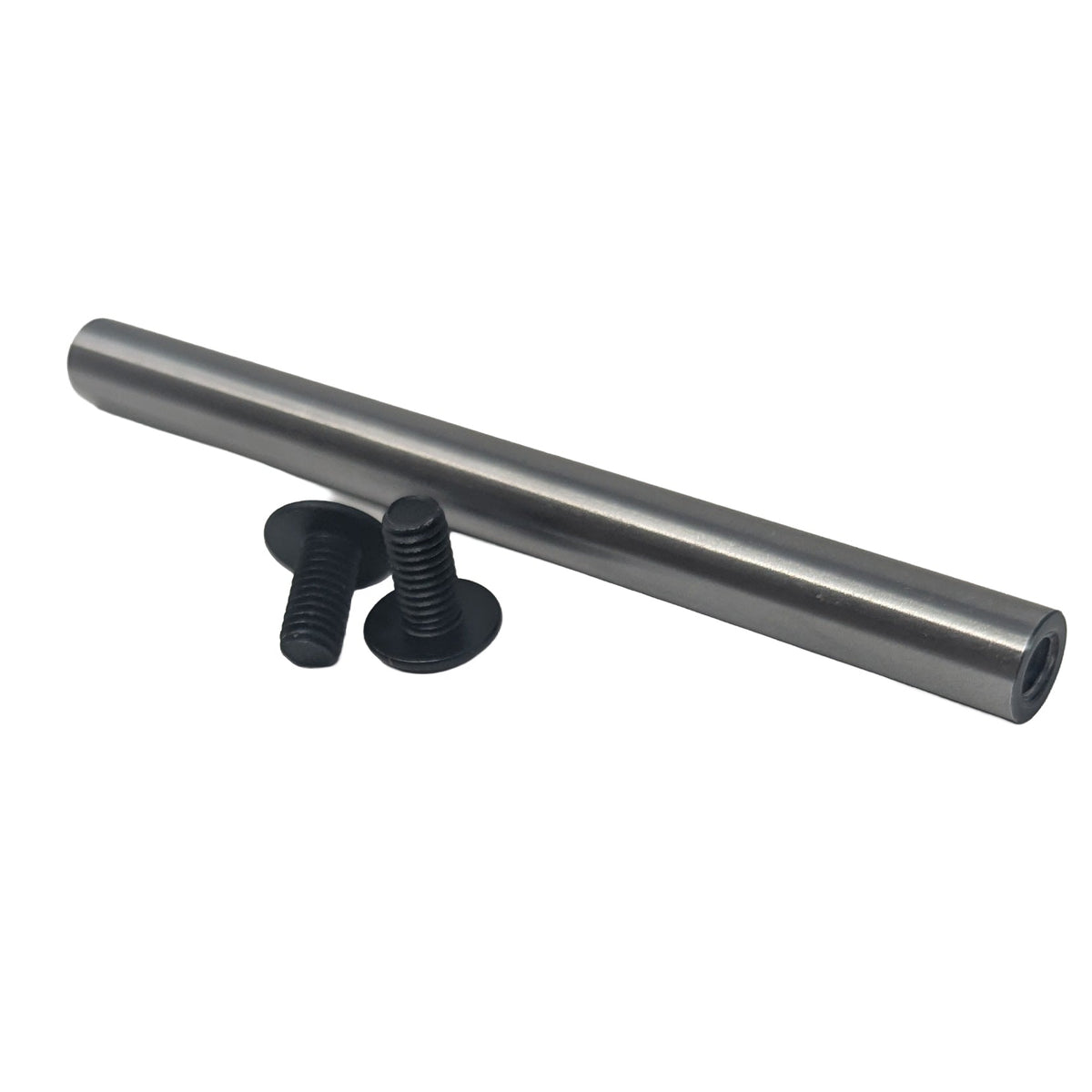

10mm Shaft
- Diameter: 10mm
- Length: 115mm
- Hollow shaft end-tapped for M6 screws
- Comes with 2x M6 flanged head screws
- Made from 52100 bearing steel
- Weight (with screws): 58.5g

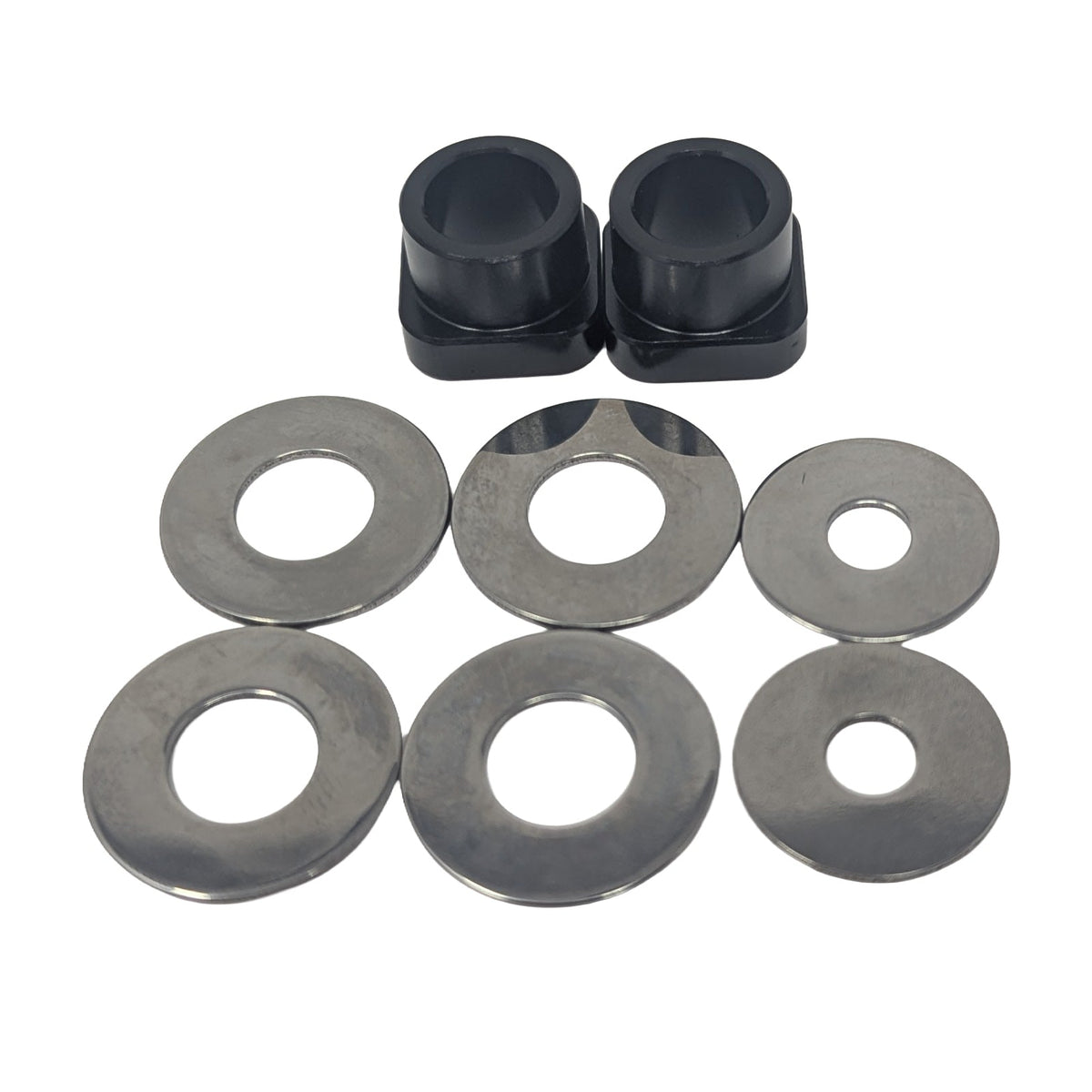

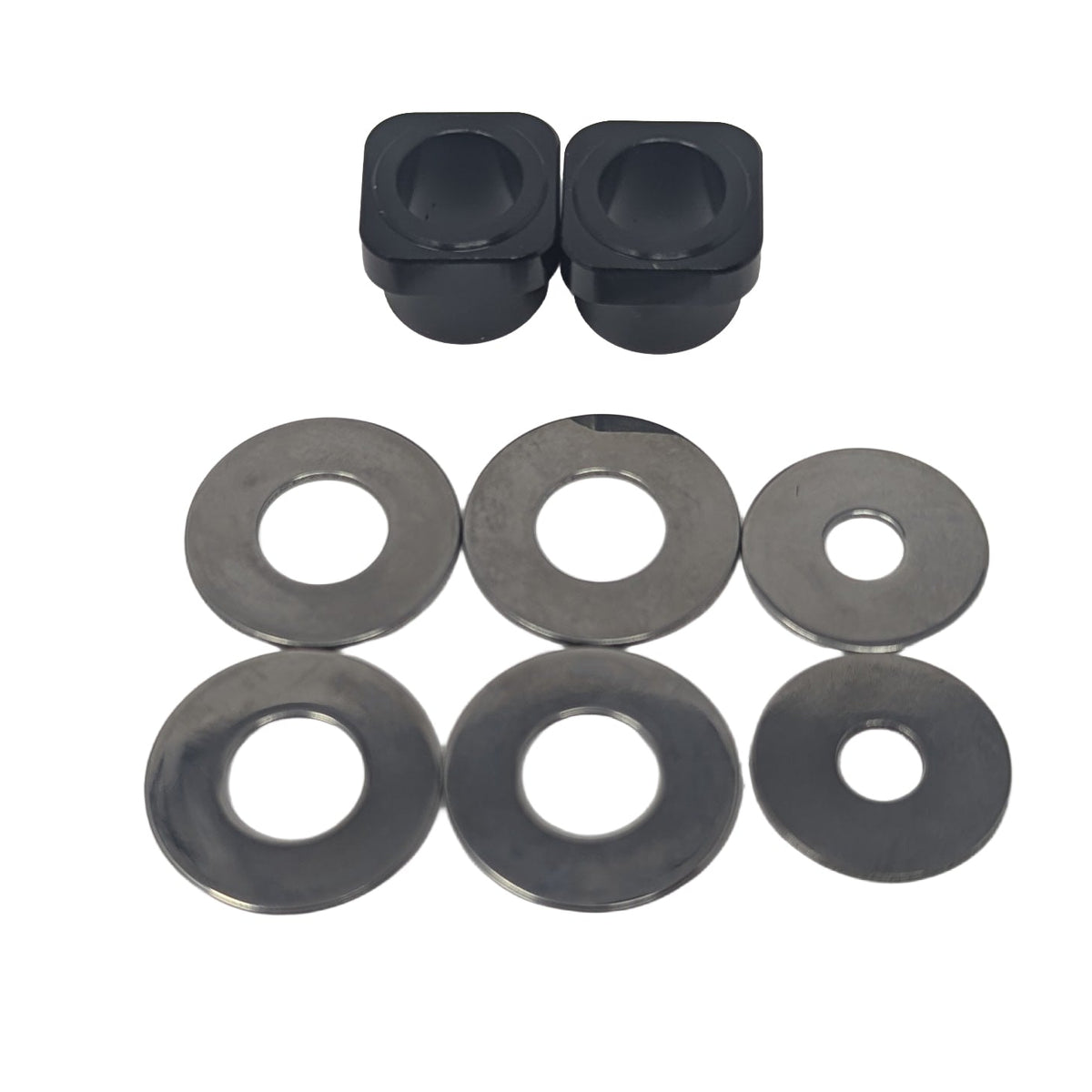

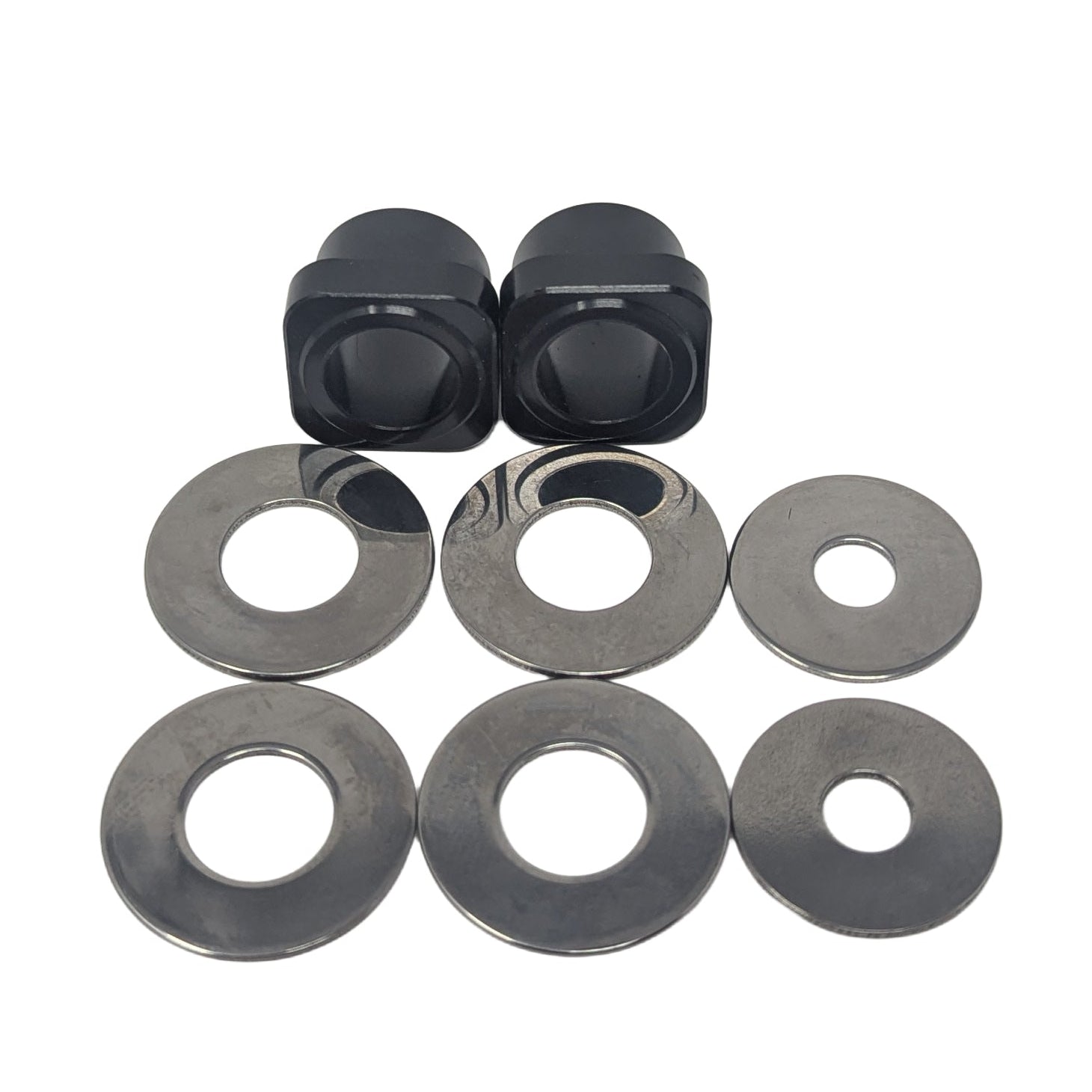

Frame inserts
- For 10mm Bore
- Includes washers for both sides of the frame
- Design based on those used in Kamino
- 7.2g (10mm, pair), 16.1g (10mm, pair, with washers)
CAD Link
