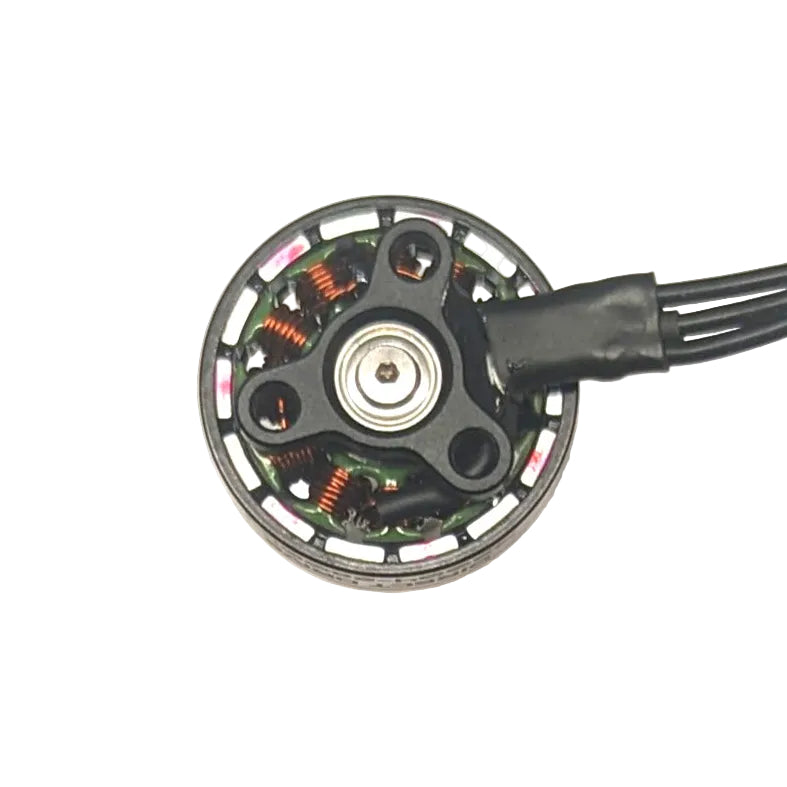

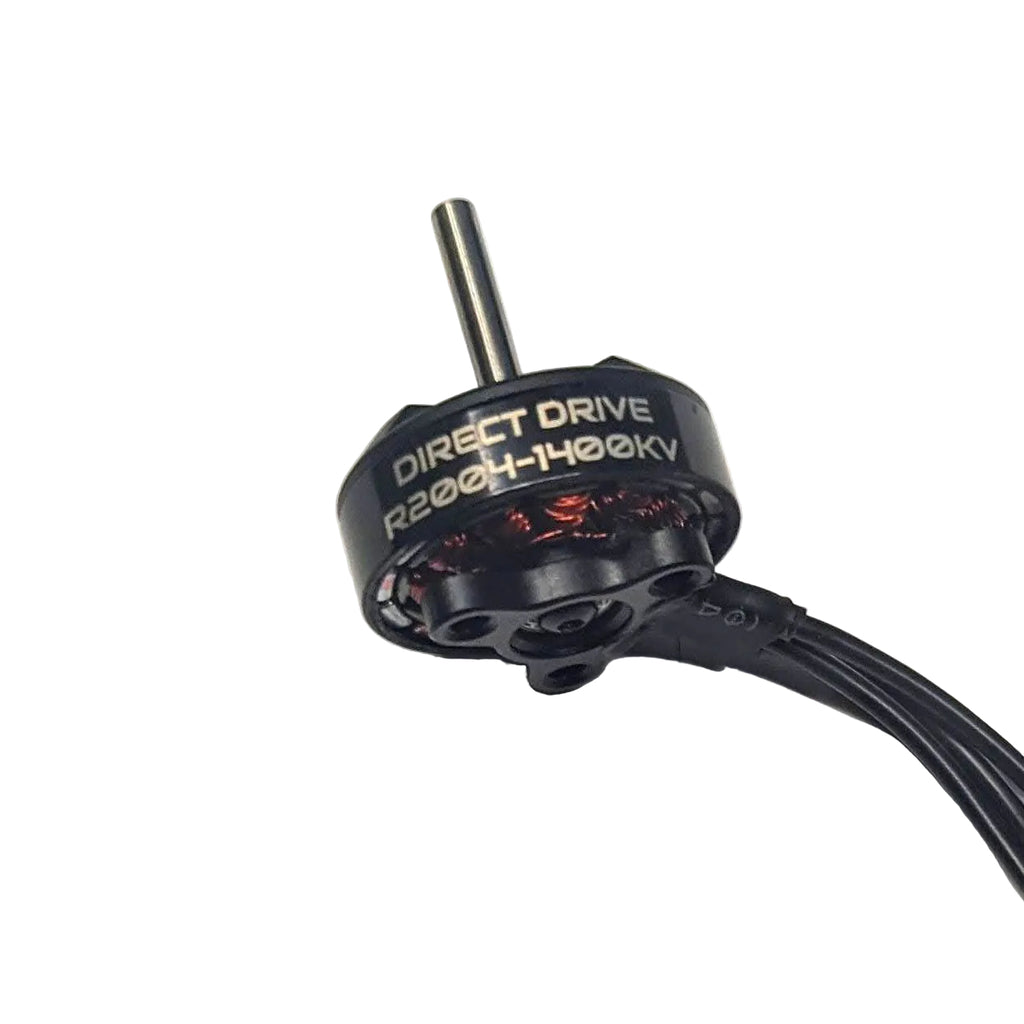

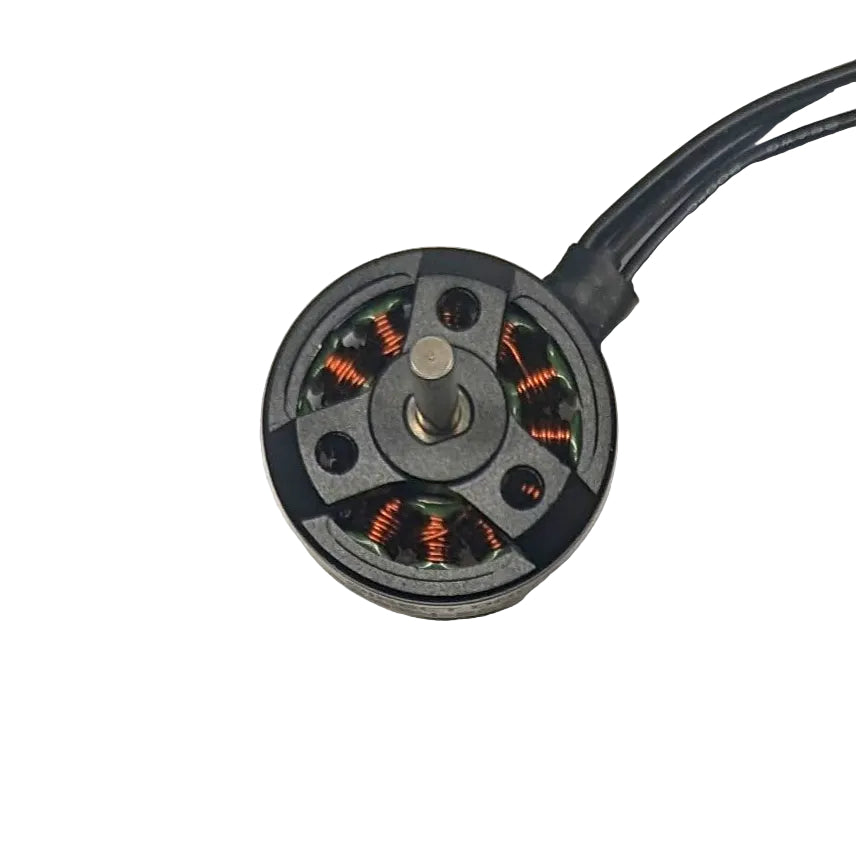

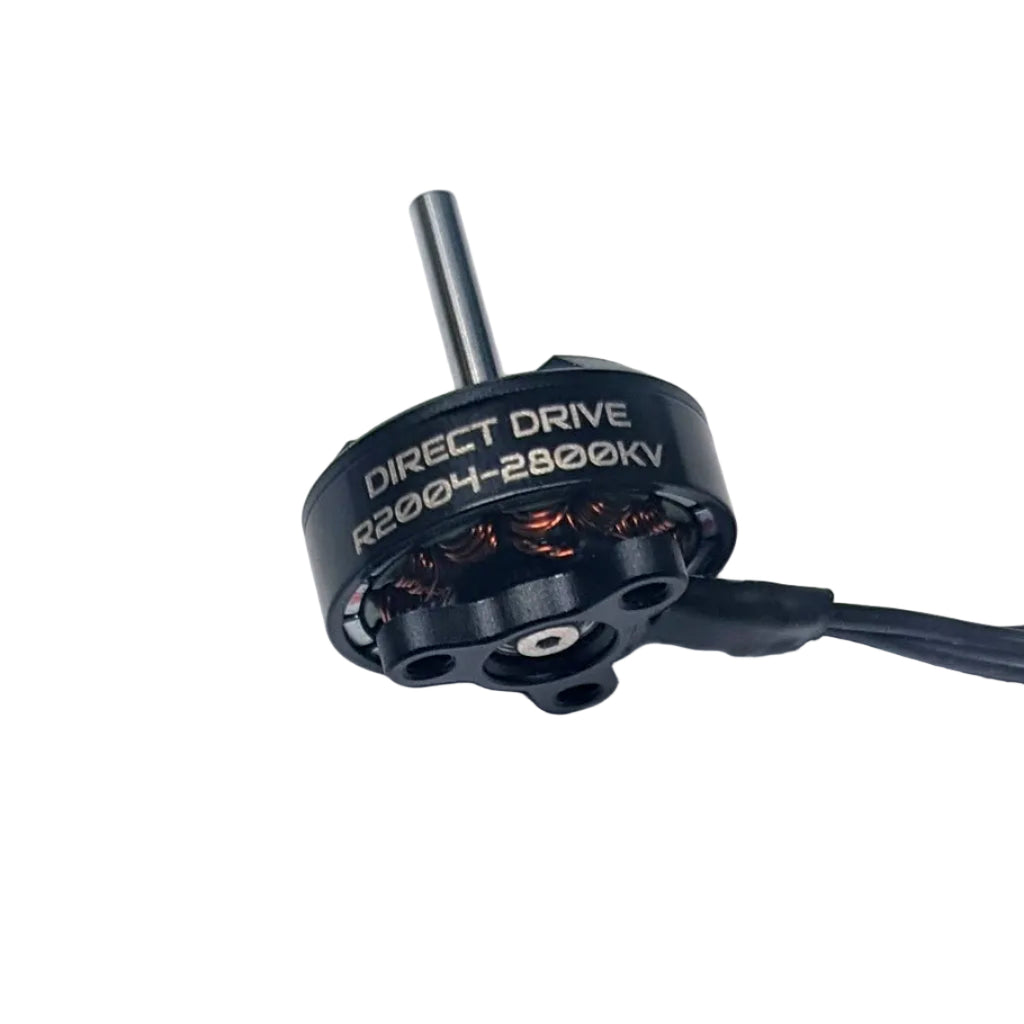

Specifications:
- 1400 or 2800kv
- 3mm shaft, ~15mm stickout
- 3x M3 tapped holes at 15mm diameter for both motor and blade mounting
- 15.8g without wires, 17.8g with full length wires
- Shaft structure re-designed to prevent can removal
- Shaft fastened with screw to prevent top from being ripped off
CAD Link: https://grabcad.com/library/repeat-2004-direct-drive-150g-motor-1
