Taking a good product and making it great, the new V2 redesign has major quality-of-life improvements! The V2 motors can support up to 10mm or 3/8" wide blades, and changing blades only requires removing 4 screws instead. of 7 with no need for pull tools! The entire motor is redesigned to improve single-side mount support. All this plus a few grams lighter weight than V1.
Blades that fit V1 will also work with V2.

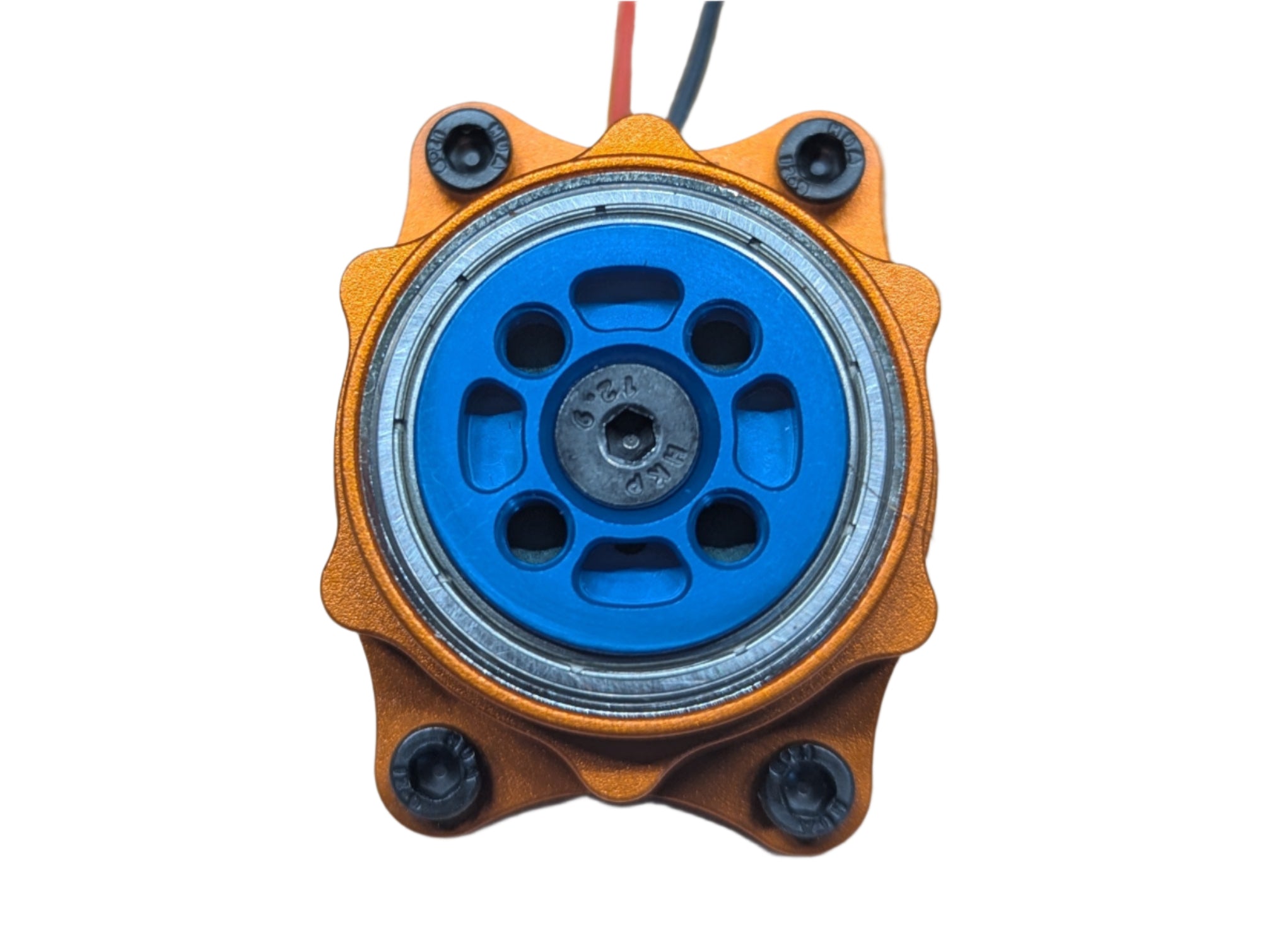

The RDY-5022 Hubmotor is an evolution beyond anything available for combat robots before. Enter the space age, with high-strength 6061 aluminum construction. Massive bearings. Battle-hardened epoxied magnets. Ultra-flexible high-temp silicone wires. Zero weapon belts. These are just some of what you get with your very own hubmotor!
What's Included when you buy a Complete Motor:
- 1X RDY-5022 complete motor, combat-ready out of the box!
- 4X M3 flathead screws to clamp halves together
- 1X M4 center screw
-

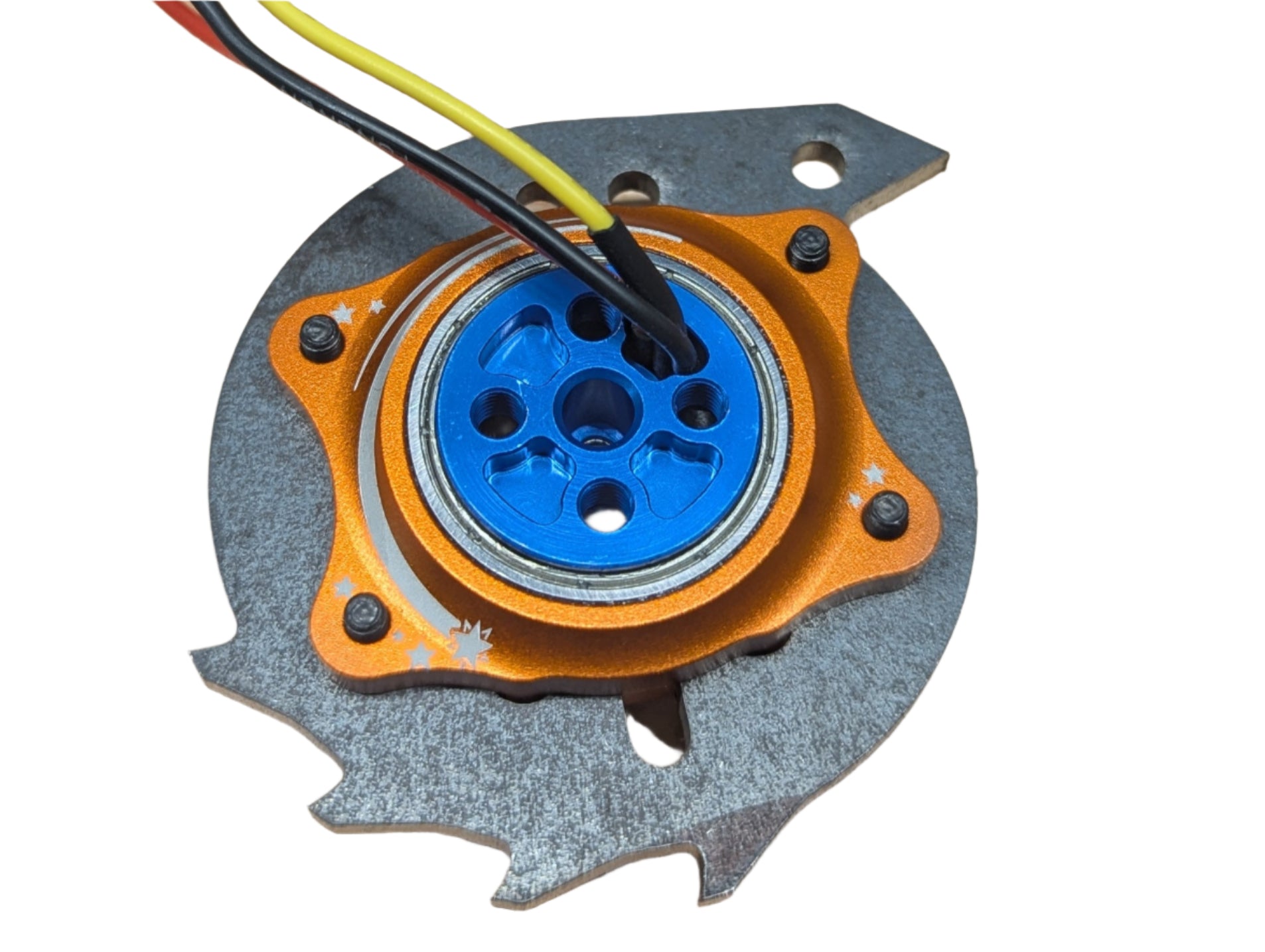

Optional: Add Sledgehog 3" AR500 Blade
Tech specs:
- Dimensions: ~50mm diameter, 22mm length
- Stator Size: Roughly 22 X 6mm
- Weight: 75 grams (2.65 oz, 0.165 lb)
- Gigantic 6704 bearings

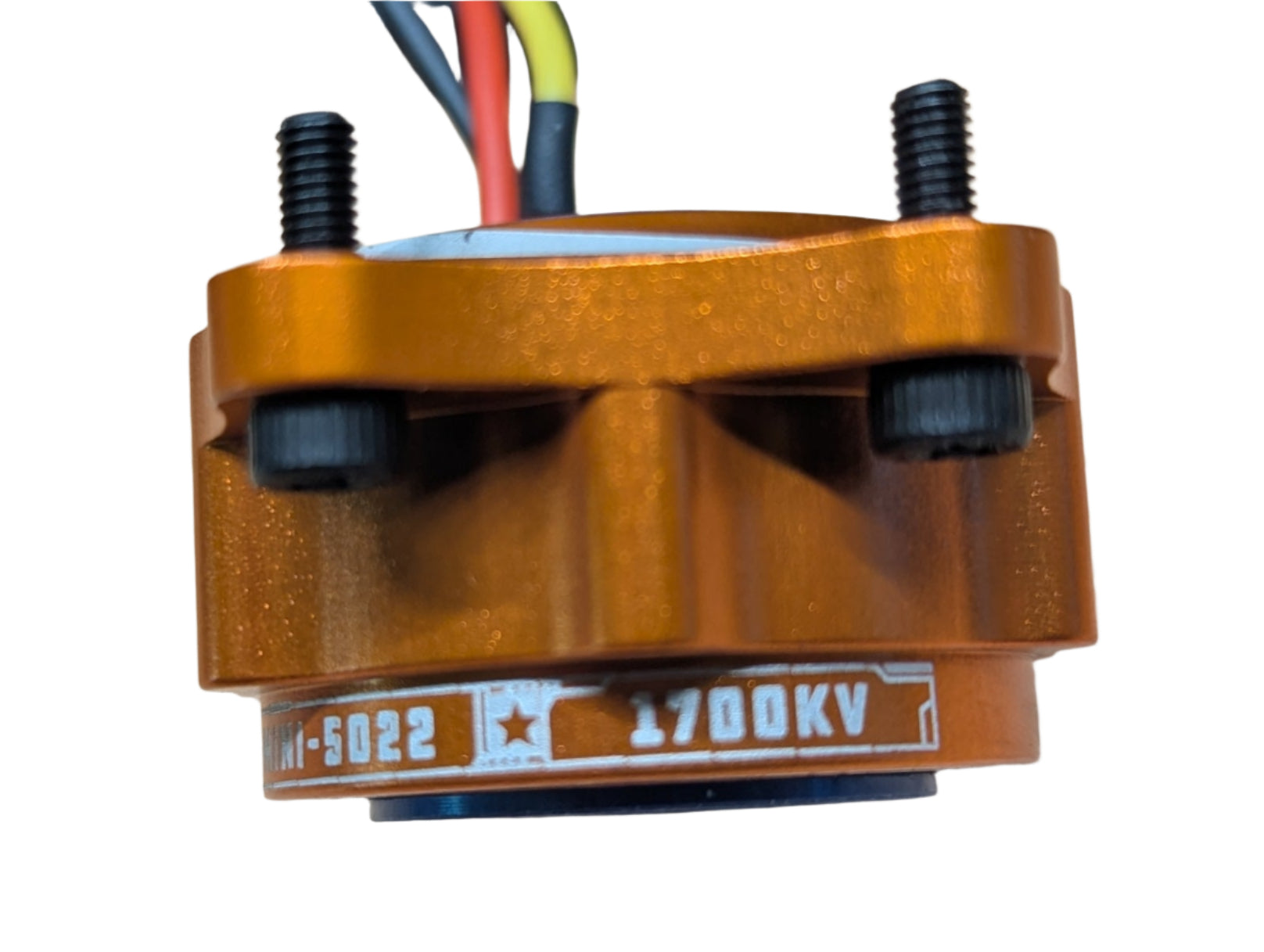

- KV: 1700kV or 1100kV
- Voltage: 2S-4S (be mindful of temperatures for 1700kV on 4S or higher)
- Power and Current: test data listed below. Our 35A ESCs are a perfect match.
- Mount with 8X M4 bolts, MAKE ABSOLUTELY SURE NOT TO USE SCREWS THAT THREAD TOO FAR IN OR YOU WILL DESTROY THE MOTOR COILS!
- No circlips, belts, or set screws!
- Super strong neodymium magnets
- Epoxied magnets and stator coils for extra durability
- High-temperature copper windings
- 20AWG silicone wires rated to 200 degrees C
- Shipped without connectors.

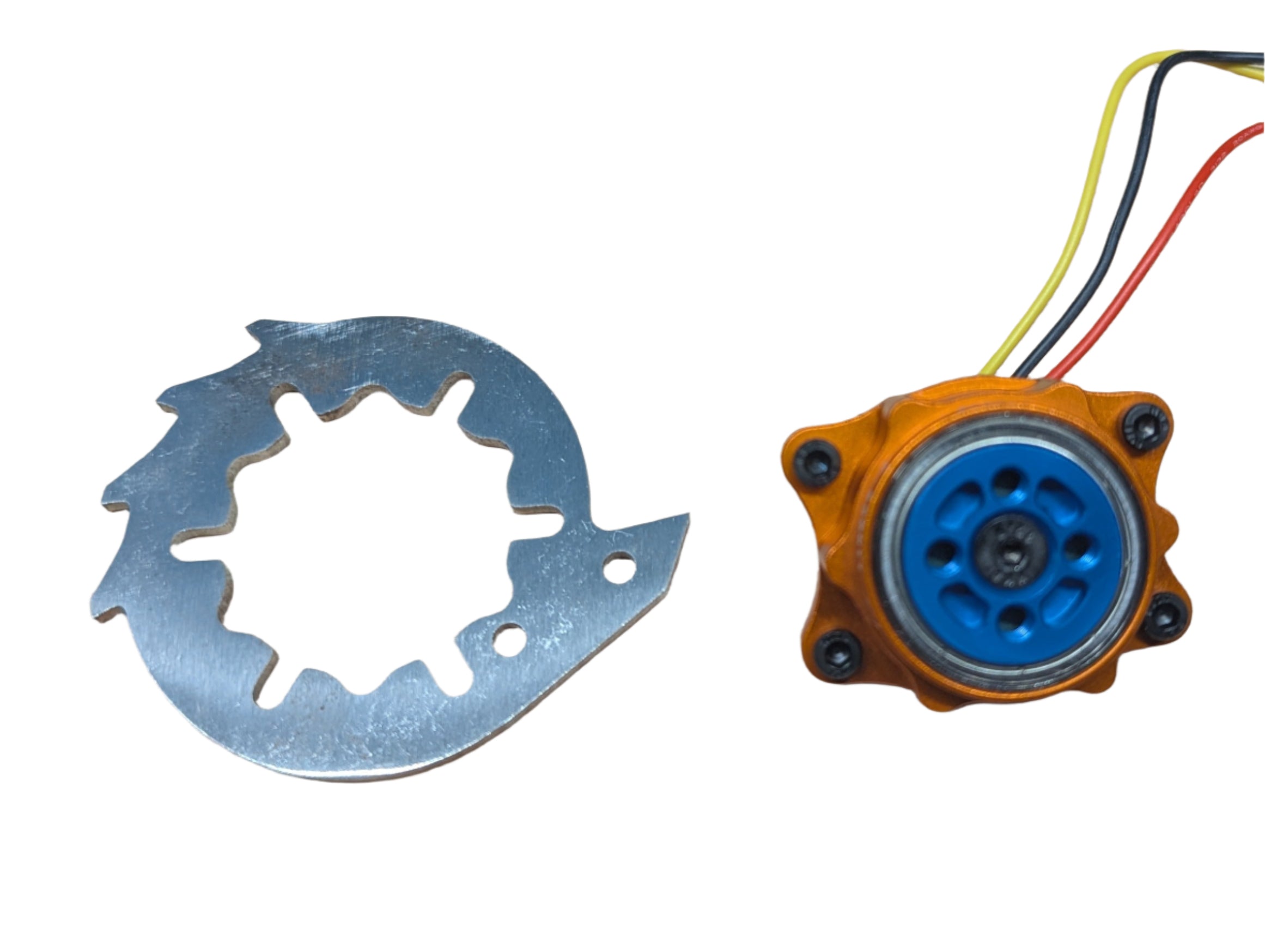

- V2 supports blades any thickness up to ~10mm or 3/8".
Find the 3D model here: 5022 CAD Model
CAD download includes Sonic's blade with the proper spline geometry needed. We recommend offsetting the spline by about 0.005" (0.15mm) from the actual motor profile for a better weapon blade fit.
Warning: The outside of this motor is like a big heatsink and can get very hot!
