Need a new servo for your Viper Lifter or a replacement for a Super Scooper kit? The new PBB 25KG is now the standard servo in all Super Scoopers and a perfect drop in for Vipers adding an extended range of travel.
Input: 4.8V - 10V If your robot's battery is higher than 9V, simply run the servo power from a 9V regulator.
Specifications:
-
Rotation True 120° in the standard PWM range of 1000-2000. With extended limits it can go beyond 180°, Rated rotation is 270° across a 500-2500 PWM Range.
-
Direction: Counterclockwise, same as Viper Lifter & Super Scooper. Stick up will move the arm up.
-
Dimensions: 40mm x 40.5mm x 20mm
-

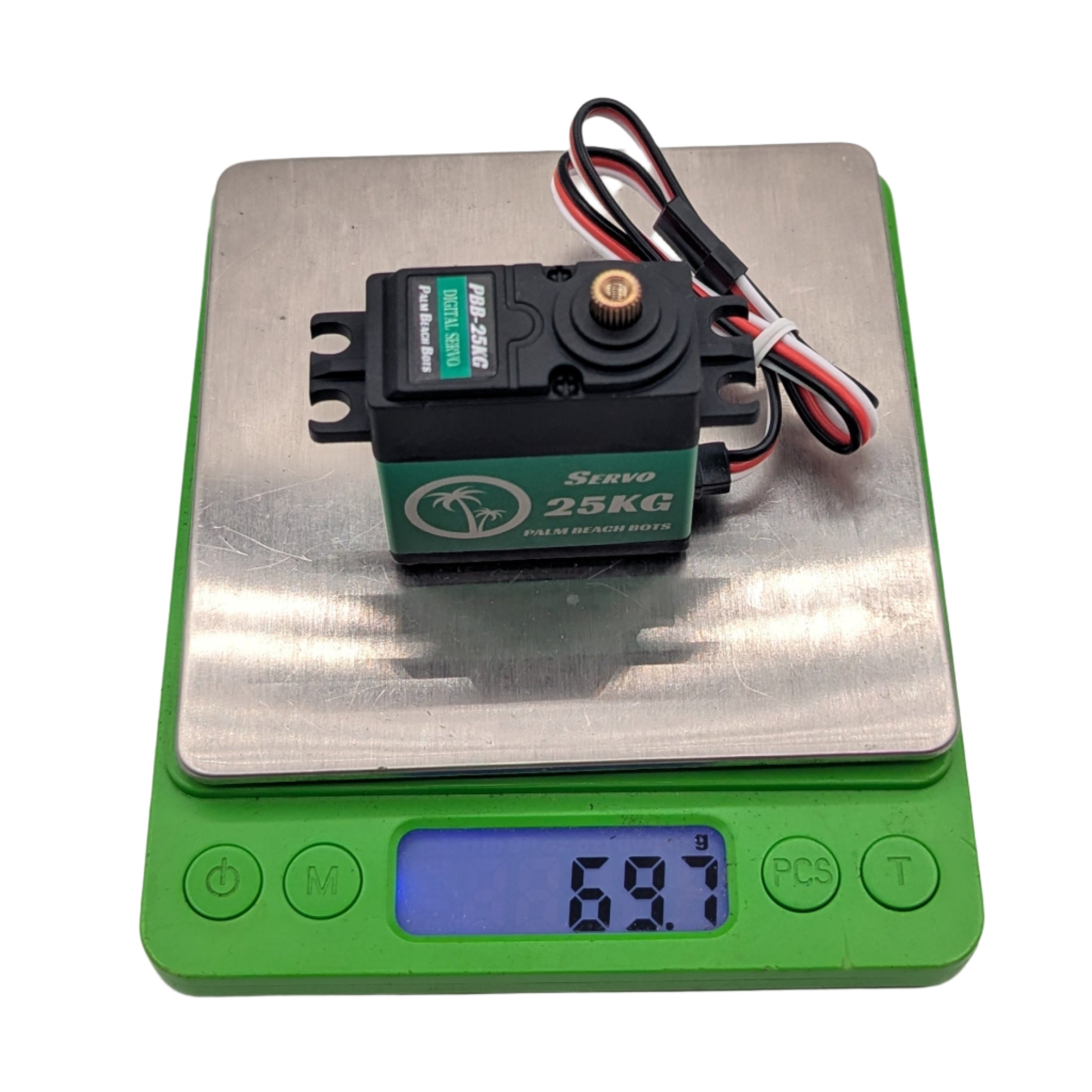

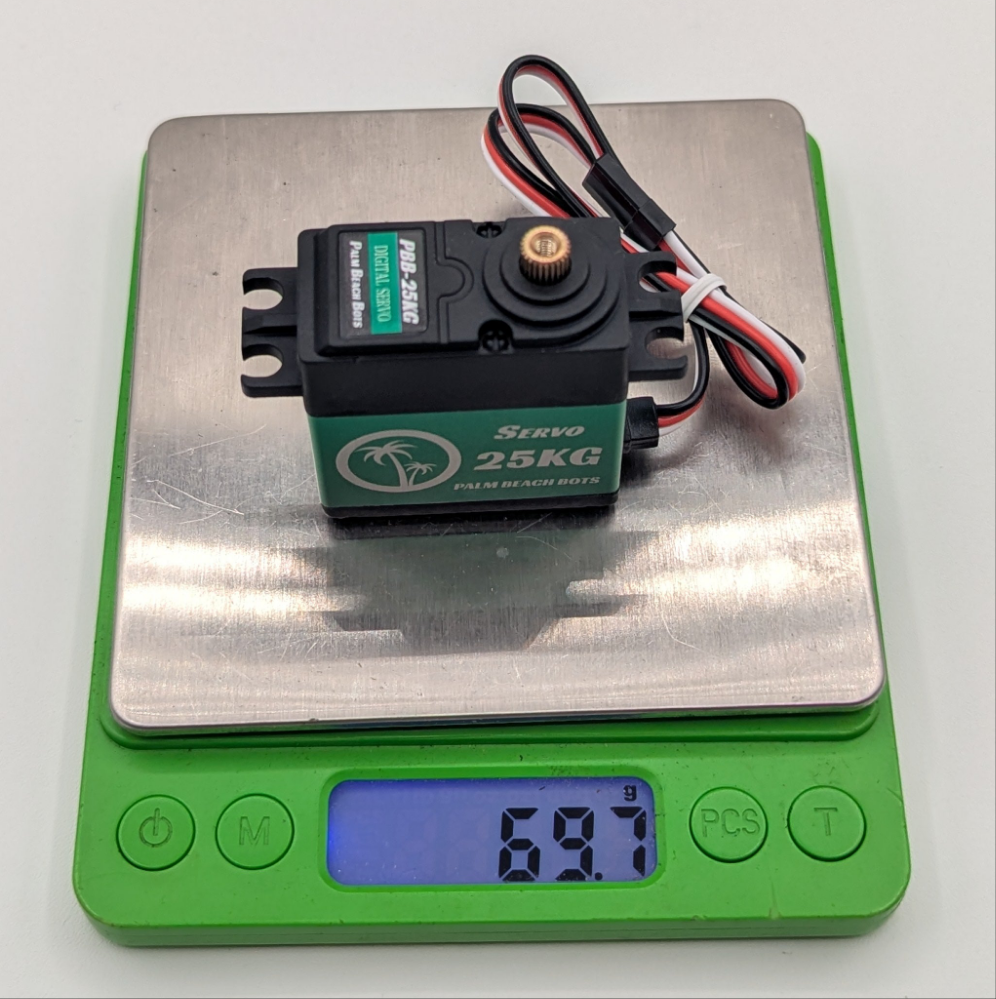

Weight: 69.8g

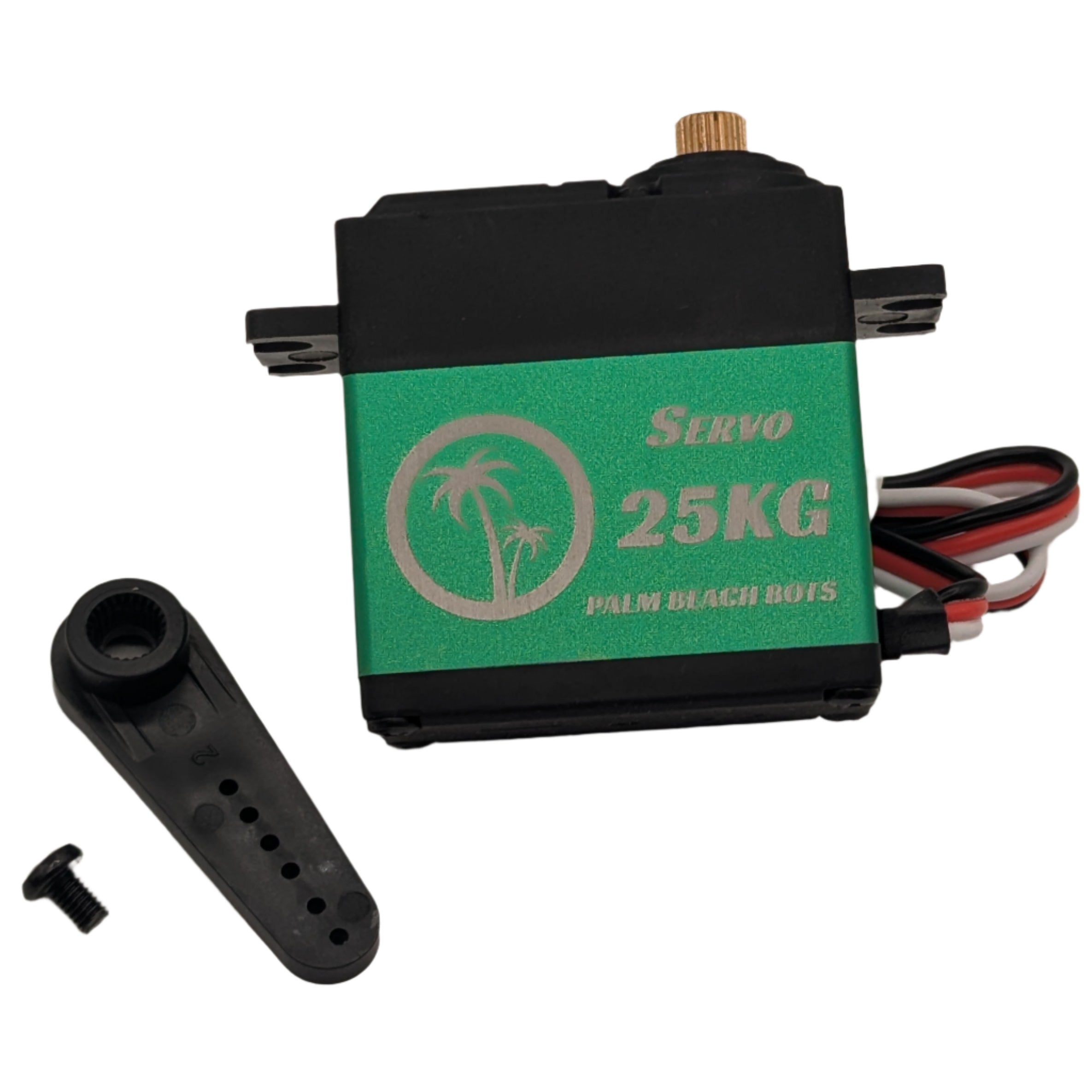

- Accepts 25T Futaba-splined servo arms.
Performance Info:
-
9.0V
- Speed: 0.11 sec/60 degrees
- Stall Torque: 30KG
-
8.4V (2S Lipo fully charged)
- Speed: 0.125 sec/60 degrees
- Stall Torque: 28.7KG
-
7.2V
- Speed: 0.14 sec/60 degrees
- Stall Torque: 26.8KG
-
4.8V
- Speed: 0.18 sec/60 degrees
- Stall Torque: 23.5KG
