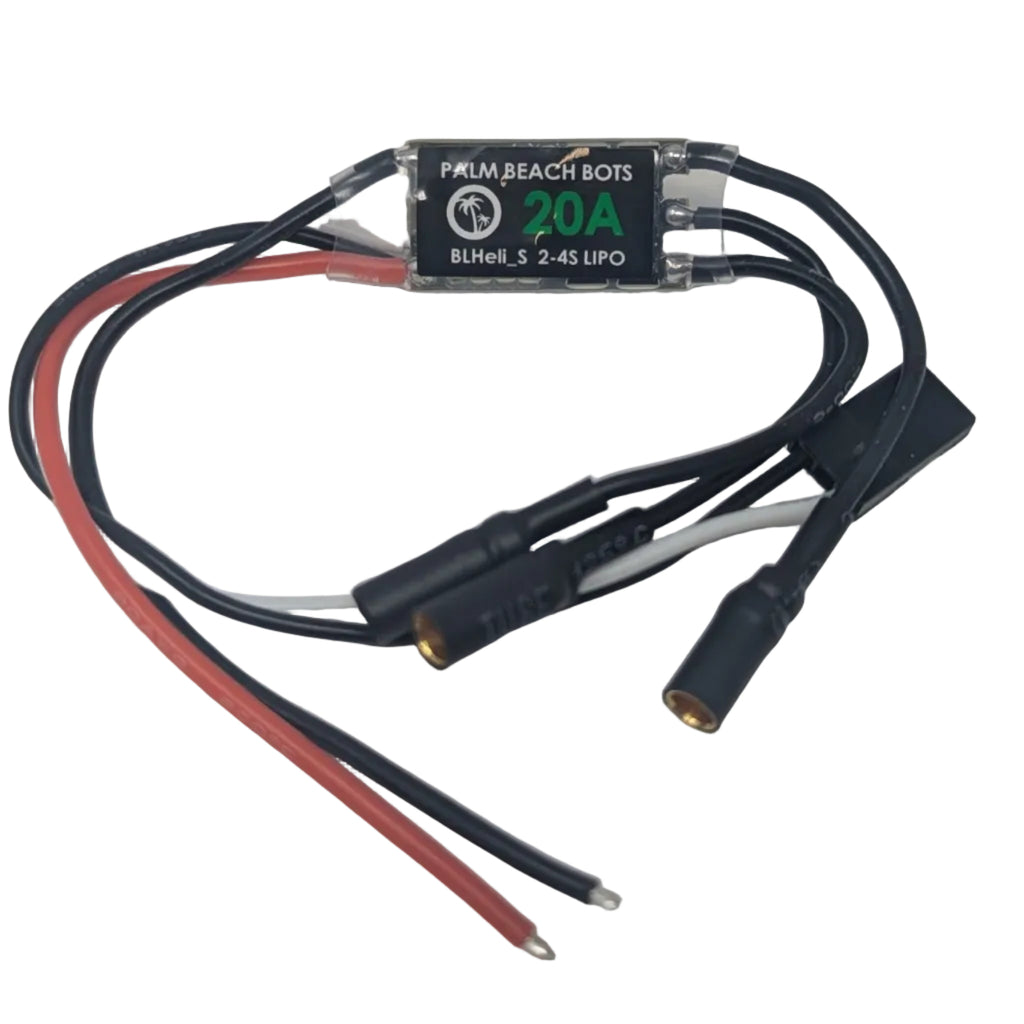

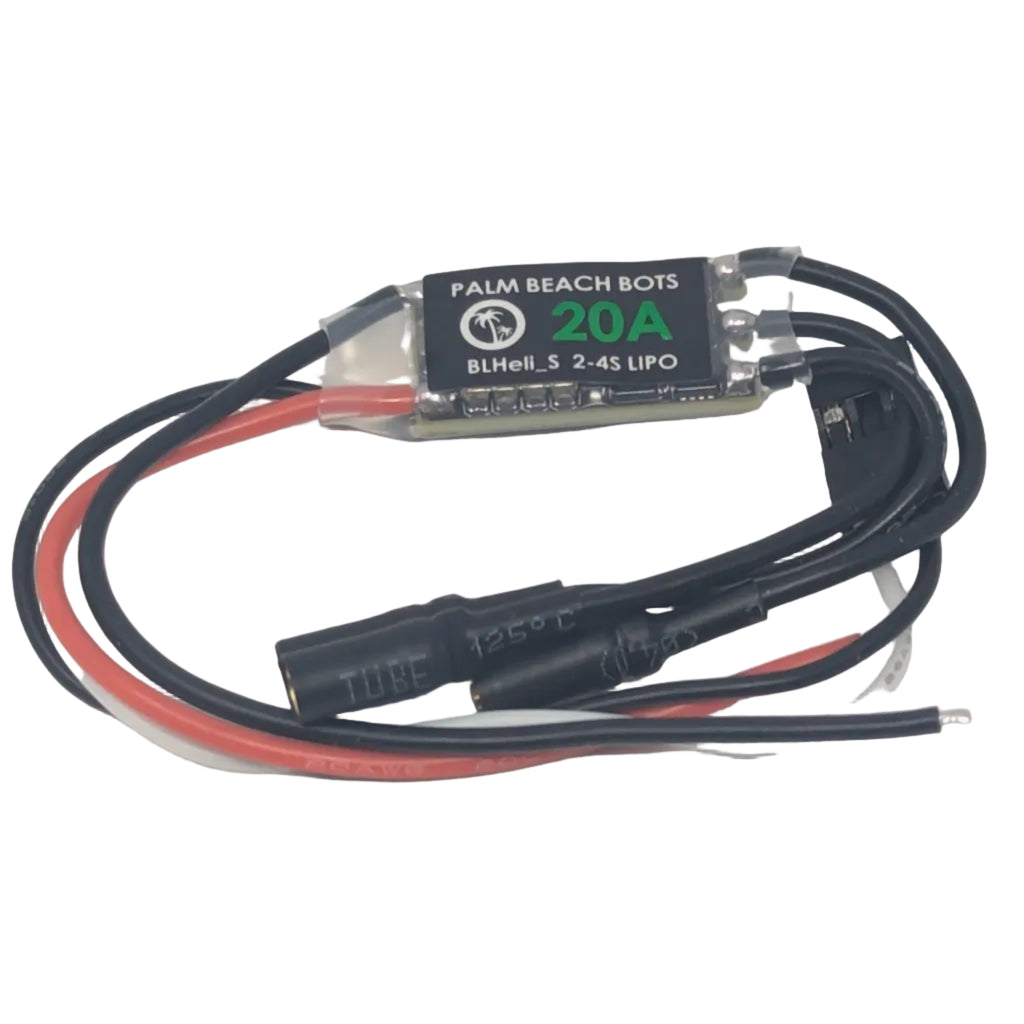

PBB 20A Brushless Speed Controller BL_HeliS, 2-4S Lipo

• Palm Beach Bots 20A Brushless ESC made for antweight (one pound) combat robots.

• Compatible with all Palm Beach Bots ant weight kits including Plastic Ants, Skizos and Fingertech Viper kits.
• Programmed specifically for combat robots as an upgrade/replacement for the old BL20A.

Specifications:

• Voltage: 7.4V-14.8V , 2S-4S Lipo
• Current: 20A continuous
• ESC Size: 24 x 12 x 5.mm

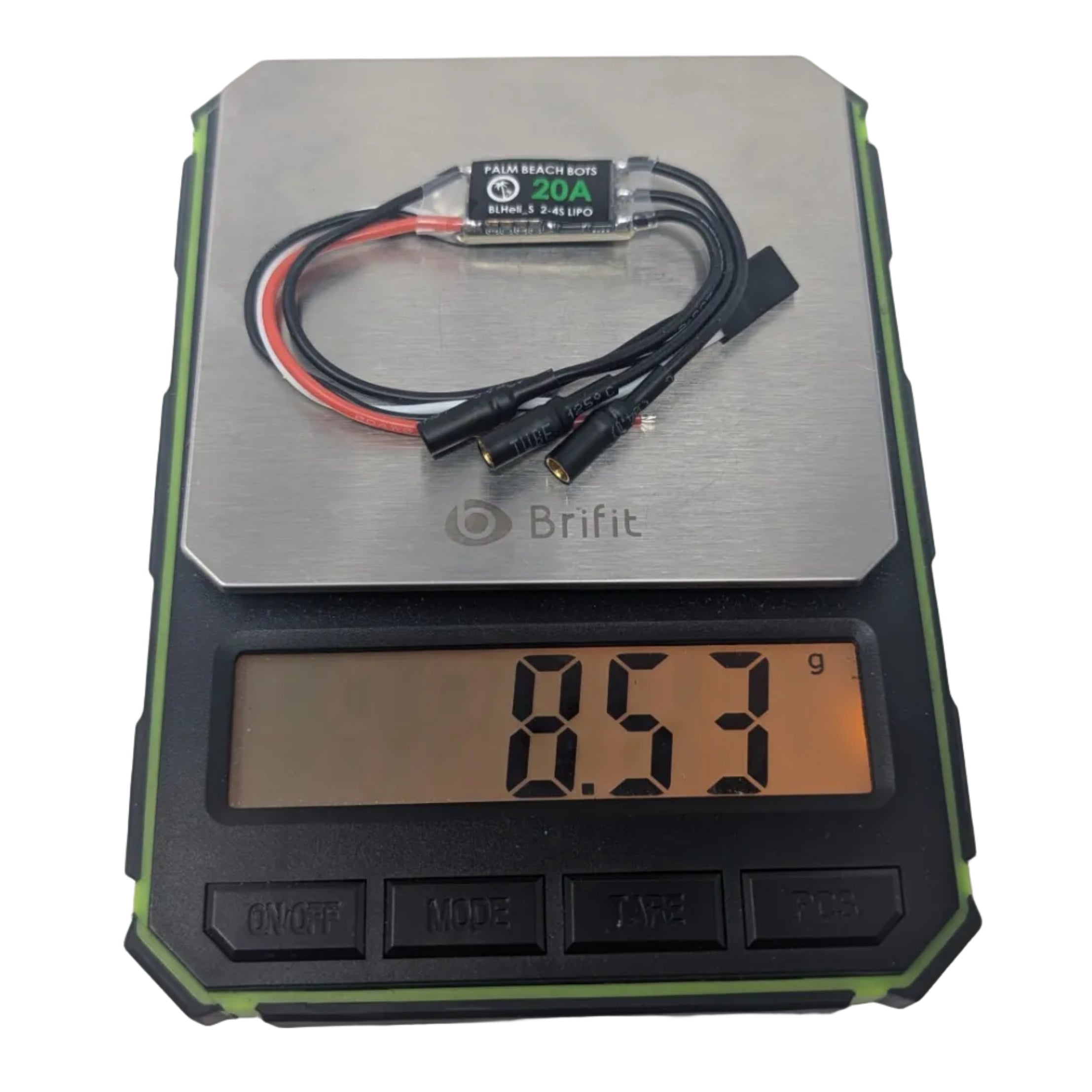

• Weight: 8.6g
• Motor wires: 70mm length including 3.5mm bullet connectors

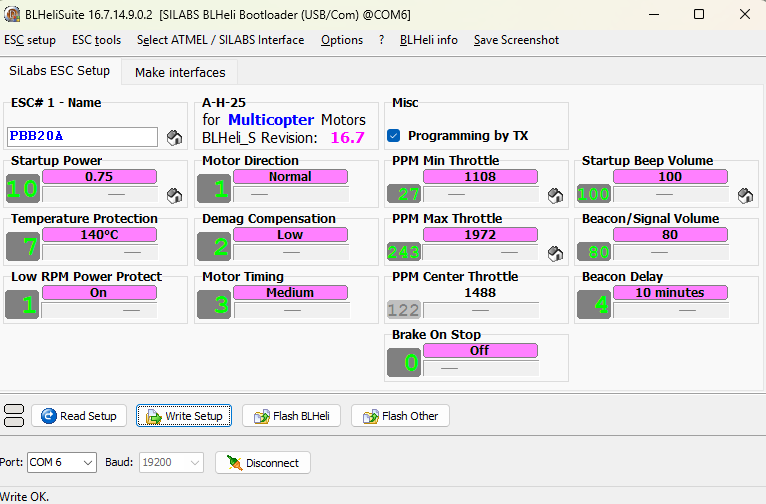

• Operates on BLHeli-S firmware
• No on-board BEC.  If the drive ESC in the bots does not have a BEC an external BEC is required to power the receiver.
• Wiring: Connect the three motor wires any way you like. If the motor is spinning backwards, swap any two wires.
