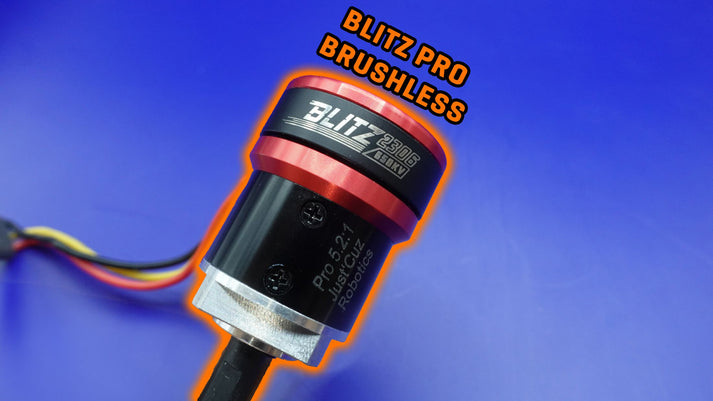

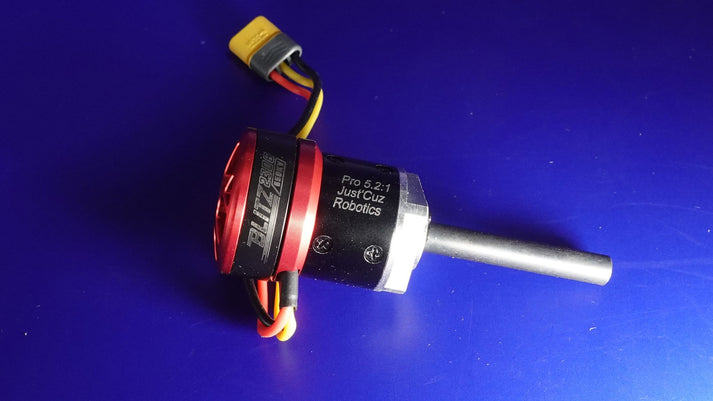

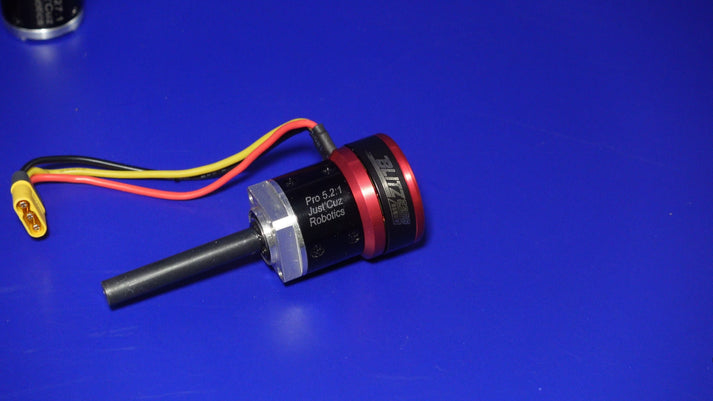

Blitz Pro 2306 - Brushless Bulletproof 24mm Drive Motor (5.2:1)


Price:
Sale price$52.49
Stock:
Only 3 units left
Buy now with ShopPay

Description

The Blitz Pro is the most compact brushless drive motor available with a beefy 6mm shaft and 24mm gearbox.   It provides both durability and pushing power to drive you to your next win.  Capable of up to 6S it's ready for the most aggressive beetle drives.

Features:

  • Weight:
    • 5.2:1 Ratio weighs 70.5 grams (2.49 oz) (Best for drive)
    • NOTE: These weights include 105mm long silicone 20AWG wires and an MR30 connector which adds a few grams!
  • Speed 5.2:1:
    • 1500 RPM on 12V/3S
    • 2000 RPM on 16V/4S
    • 2500 RPM on 18V/5S
    • 3000 RPM on 24V/6S

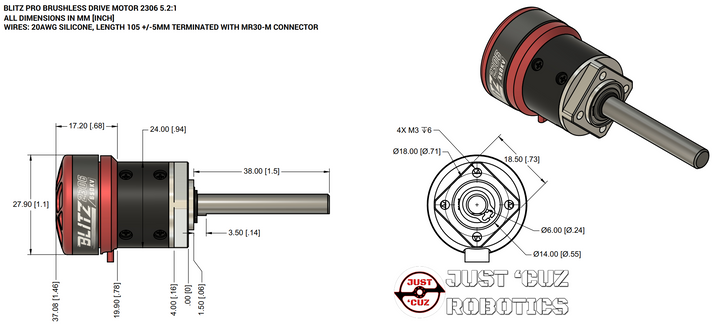

  • Dimensions: CAD Assembly Here
    • Gearbox Diameter: 24mm
    • Length: 5.2:1 Blitz Pro is just 37 mm from the mount to rear of motor
  • Gearbox length
    • 22.9mm (1 stage 5.2:1)
  • Shaft: 38mm long, 6mm diameter billet alloy steel D shaft

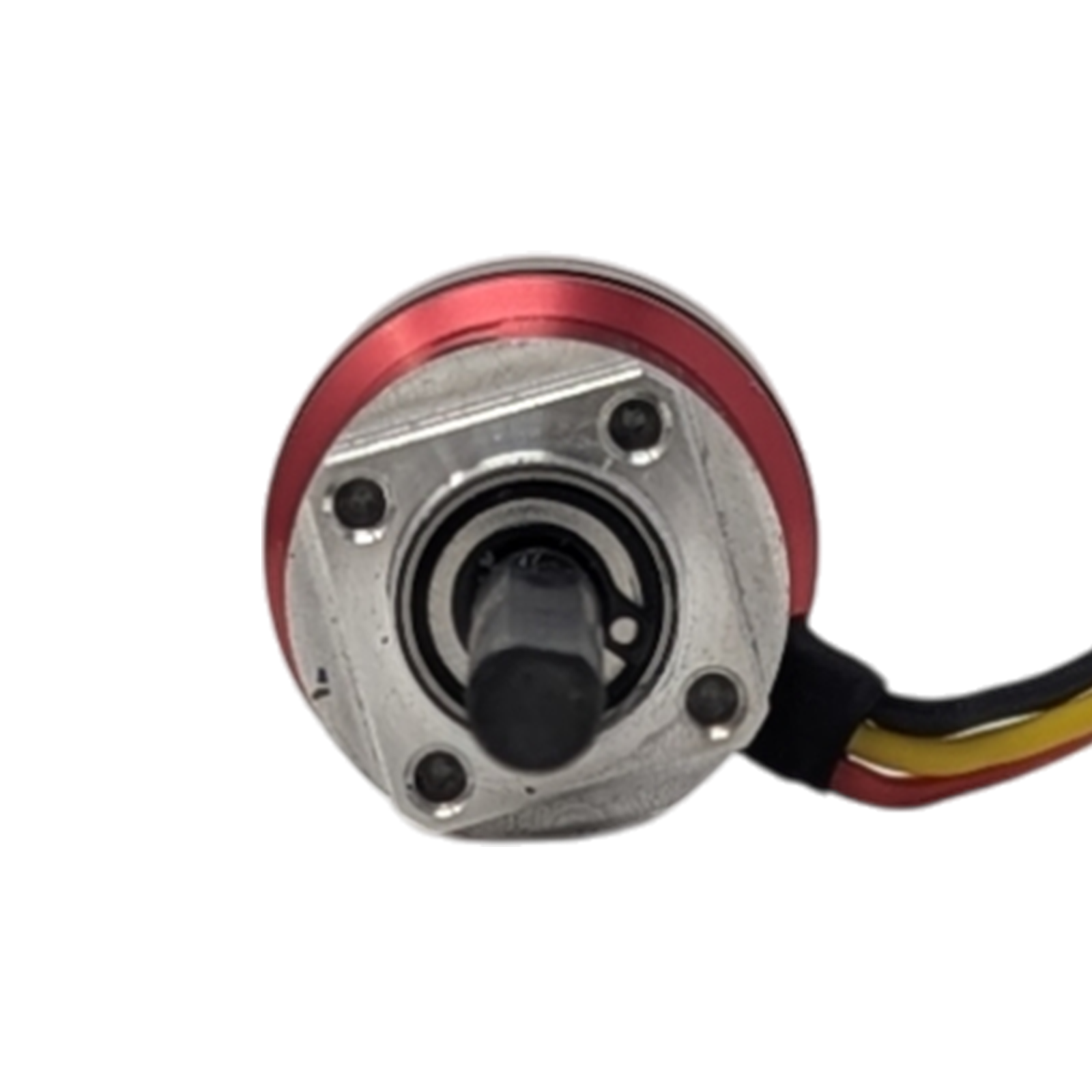

  • 4X M3 Screw face mount, 18mm bolt circle

ESC Settings: IMPORTANT

Note about kV setting - for such a low 650kV motor this setting is super important! Your ideal KV setting will change based on the input voltage. If you are running 6S, the kV on the ESC should match the motor as close as possible. If you run 3S, the AM32 KV setting should be half as much as the motor at around 325kV. If you set this too high you may experience limited peak motor RPM.

The other settings we recommend leaving as shown below, except braking which you can play with to get the 'feel' or responsiveness you desire.
