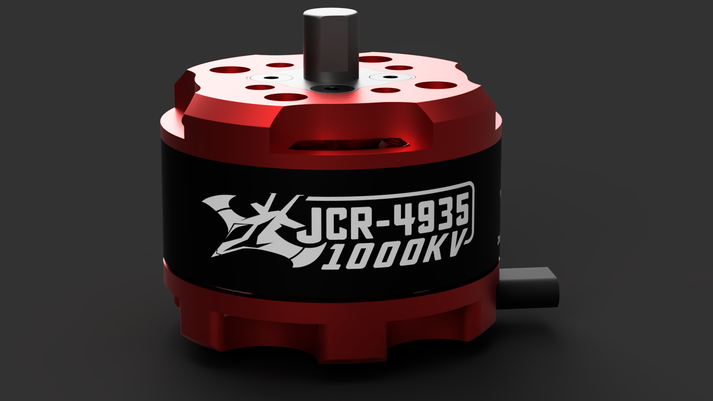

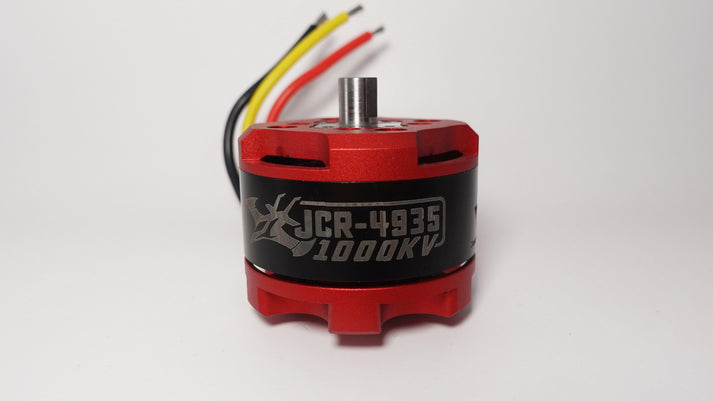

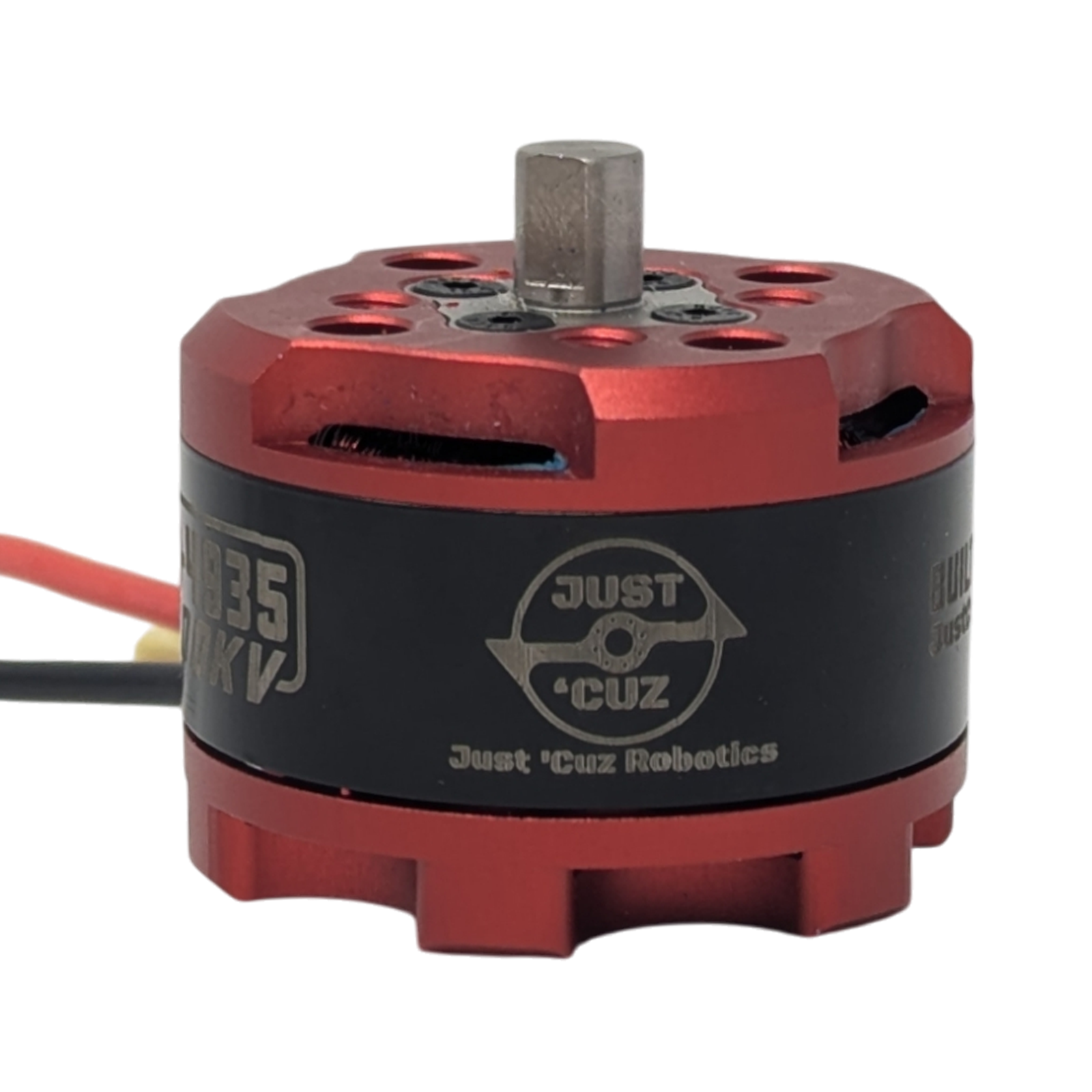

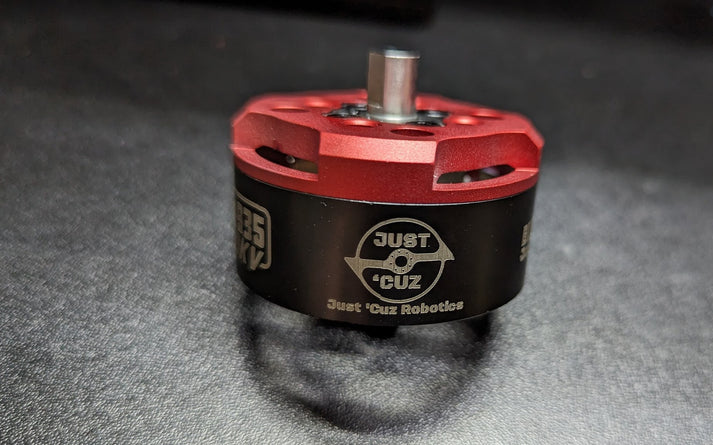

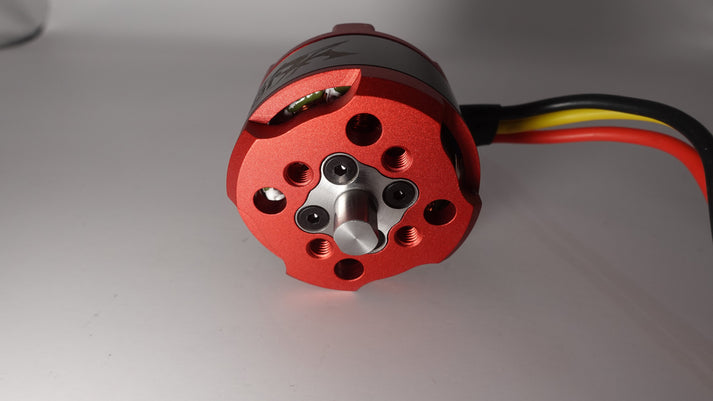

Built For Combat From the Ground Up!
Months of work have gone into making the most durable motor possible to fit into a beetleweight (or even bigger) combat robot, and this is the result. In larger weight class bots there are many modifications frequently made to motors to help them survive the rigors of combat. Boring out the motor to fit larger bearings, larger more durable shafts, removing circlips and set screws, and adding epoxy to the magnets all to battle harden these motors. Now for the first time ever, you can buy a motor off the shelf with all of these changes and more! Download the JCR-4935 CAD here, plus Subtraction's blade and shock mount designs here.
What's Included:
- 1X JCR-4935 motor, combat-ready out of the box!
- 6X Alloy Steel M5 x 12mm flat head screws
- 4X Alloy Steel M5 x 10mm button head screws
- 4X 6mm diameter x 10mm length hardened steel dowel pins (these will be a slip fit with the top of the motor, and must press fit into blades or whatever else you are attaching on top).

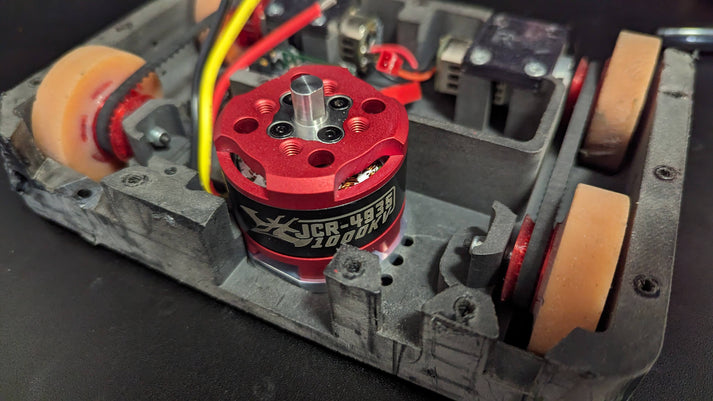

- This motor is intended to be mounted to a rigid robot frame component and as such does not come with a mounting plate or bracket.
Specs
- Dimensions: 49mm can diameter, 35.5mm can length
- Stator Size: Roughly 40 x 12mm (About 70% larger than 3536 can motors)
- Weight: 213 grams (7.5 oz, 0.47 lb)
- KV: 1000kV
- Voltage: 3S-6S with appropriate ESCs
- Recommended to run on an ESC of 50A or greater.
- 6X M5 bolts for mounting to your robot frame, 4X M3 on 25mm circle as alternative 'compatibility' mounting

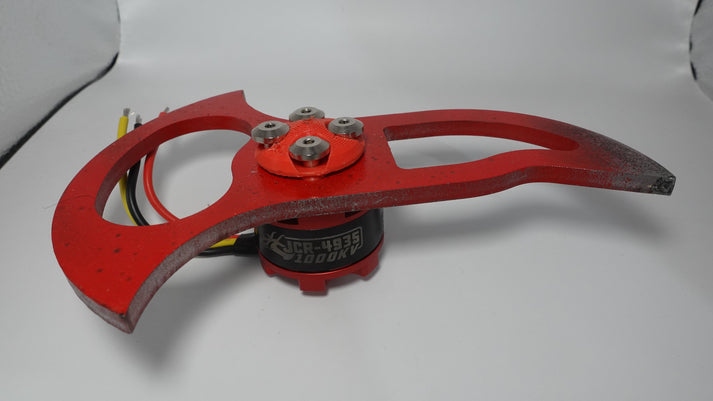

- 4X M5 bolts and 4X 6mm dowel pin holes to attach weapons, gears, pulleys, or whatever else you can think of
- 4140 Alloy steel 8mm billet flanged shaft, hardened to 46-48HRC
- No circlips or set screws!

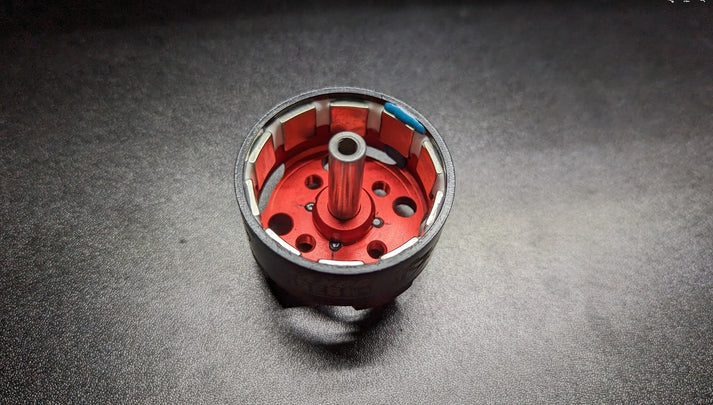

- Super strong, curved neodymium magnets
- Epoxied magnets for extra durability
- High-temperature copper windings, 14AWG silicone wires rated to 200 C
- Shipped without connectors

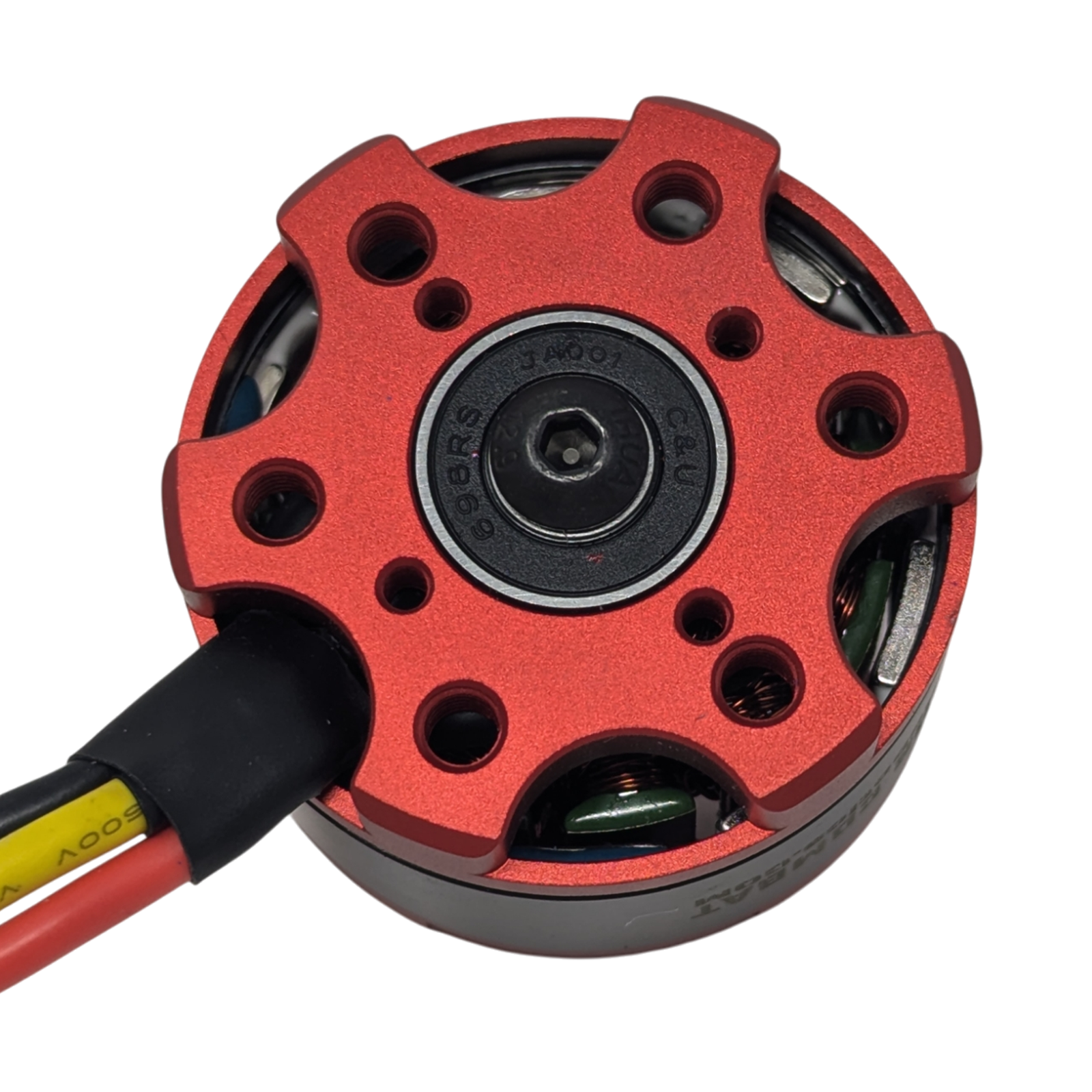

- Large 698 and 688 bearings to support the shaft, M5 button head bottom shaft attachment
- Winding Resistance: measured 86.5 milliOhms
