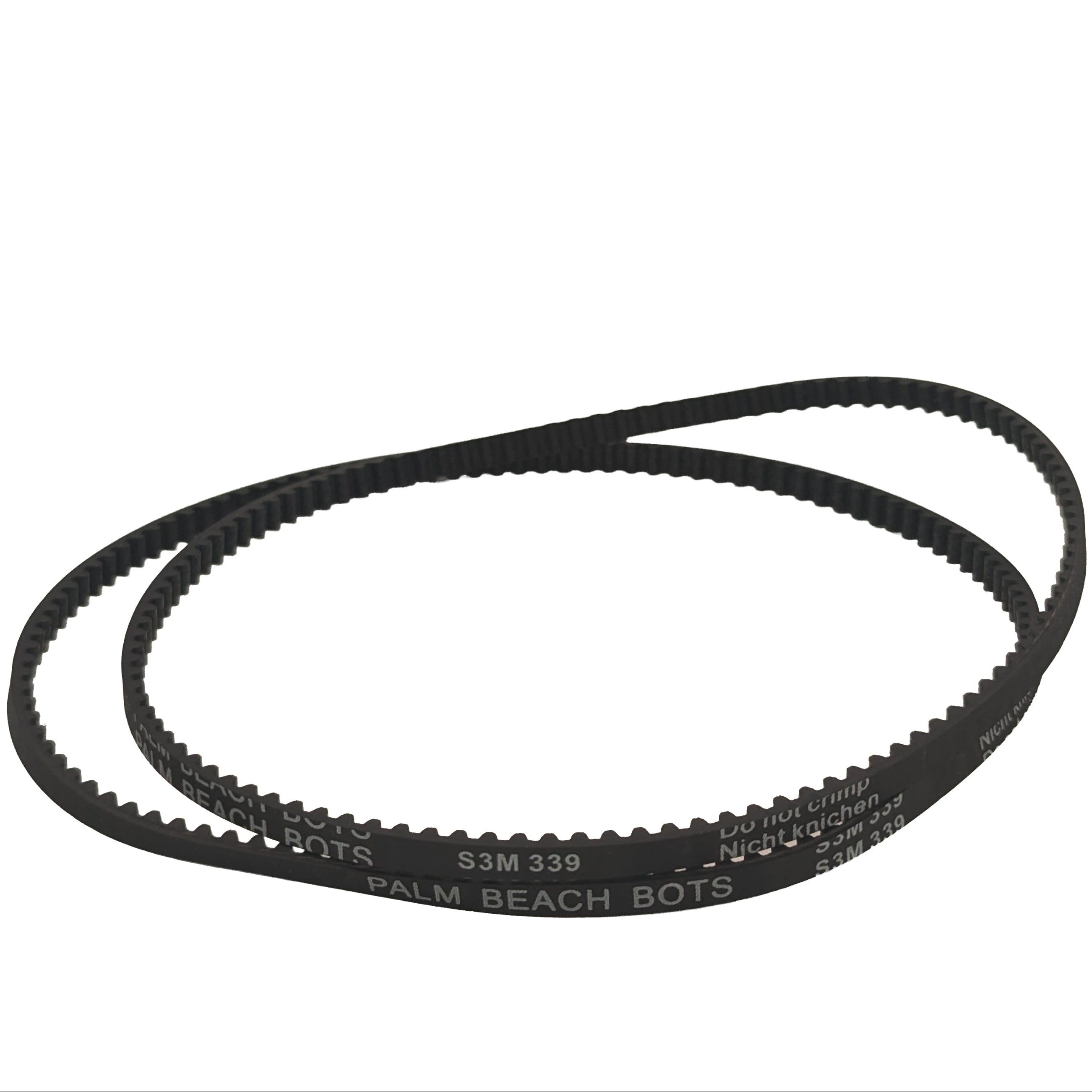

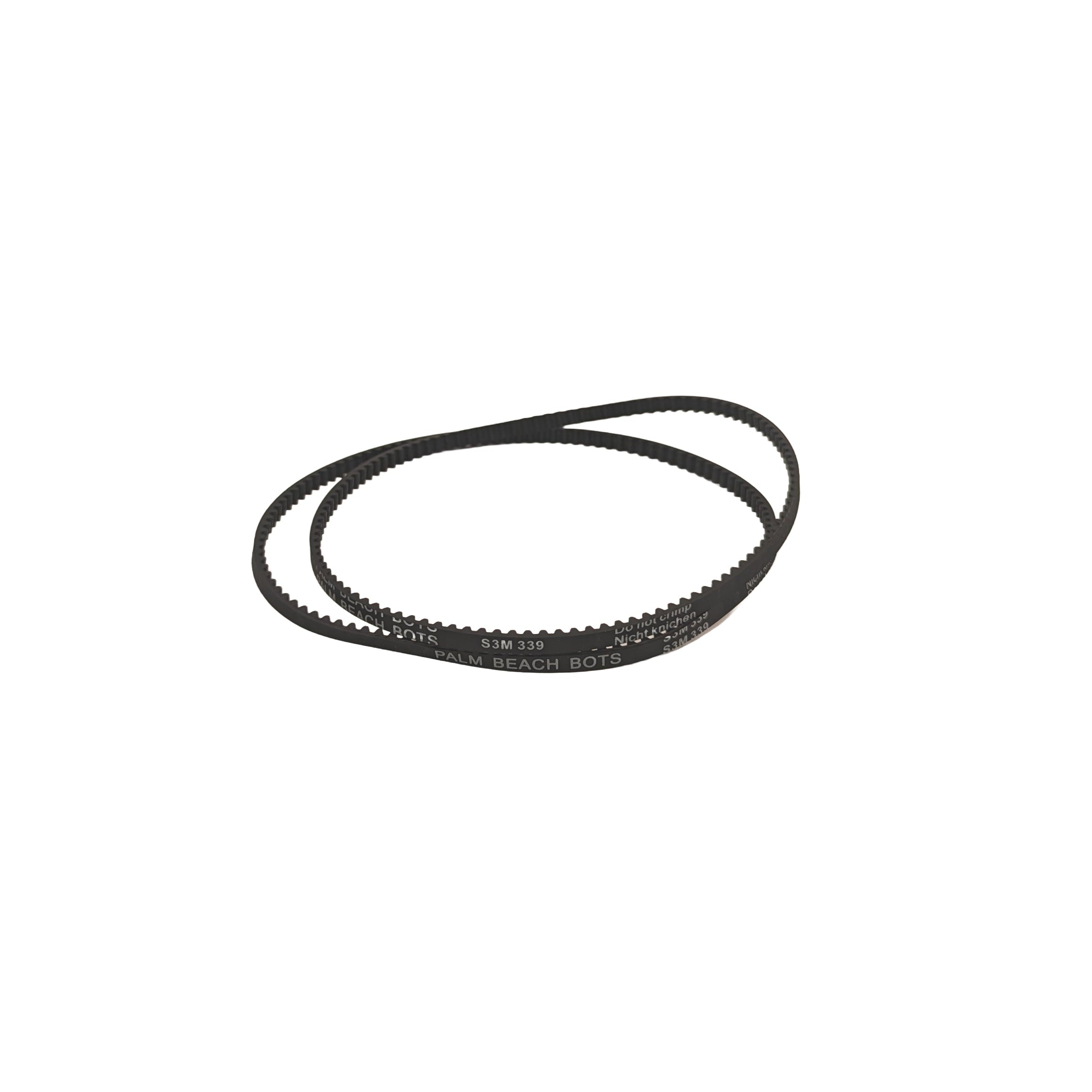

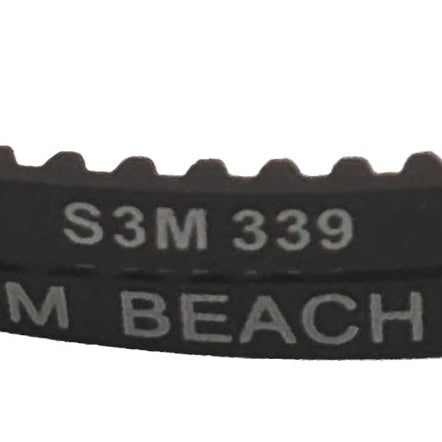

FingerTech S3M Timing Belt 339mm, 113T
ft-belt-339Timing pulleys and belts are the best way to transmit power from your motor to drive wheels or a spinning weapon.
While O-Rings and round belts will slip under tension, timing belts have teeth that ensure a positive lock to the pulleys.
A range of thirty-two belt sizes allows you to design your robot then pick a belt, rather than the other way around!
Use with FingerTech S3M pulleys, or any other 3mm pitch pulley.
•S3M pitch (3mm high-torque)
•Width: 4mm
•Circumferences: 120mm (40T) - 408mm (136T).
Try our Pulley-Belt Distance Calculator! Pick from our available pulley and belt sizes and it will tell you how far apart they will be, OR plug in your desired distance and it will tell you which belt to use!
Pitch (distance between tooth centers): 3mm
Width: 4mm
Material: Chloroprene Rubber with Fiberglass reinforcement
Tensile strength: 19-25MPa
Max load: 360 Newtons
Weight (smallest to largest): 1 - 4g (0.04 - 0.14oz)
Circumference, # of Teeth:
|
120mm, 40T 129mm, 43T 144mm, 48T 150mm, 50T 165mm, 55T 171mm, 57T 177mm, 59T 180mm, 60T |
189mm, 63T 192mm, 64T 195mm, 65T 201mm, 67T 207mm, 69T 210mm, 70T 222mm, 74T 231mm, 77T |
246mm, 82T 255mm, 85T 264mm, 88T 276mm, 92T 288mm, 96T 300mm, 100T 312mm, 104T 321mm, 107T |
339mm, 113T 375mm, 125T 378mm, 126T 384mm, 128T 390mm, 130T 396mm, 132T 402mm, 134T 408mm, 136T |
