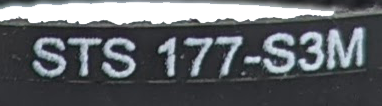

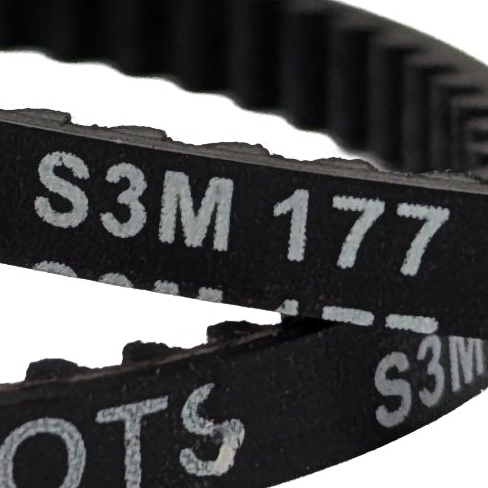

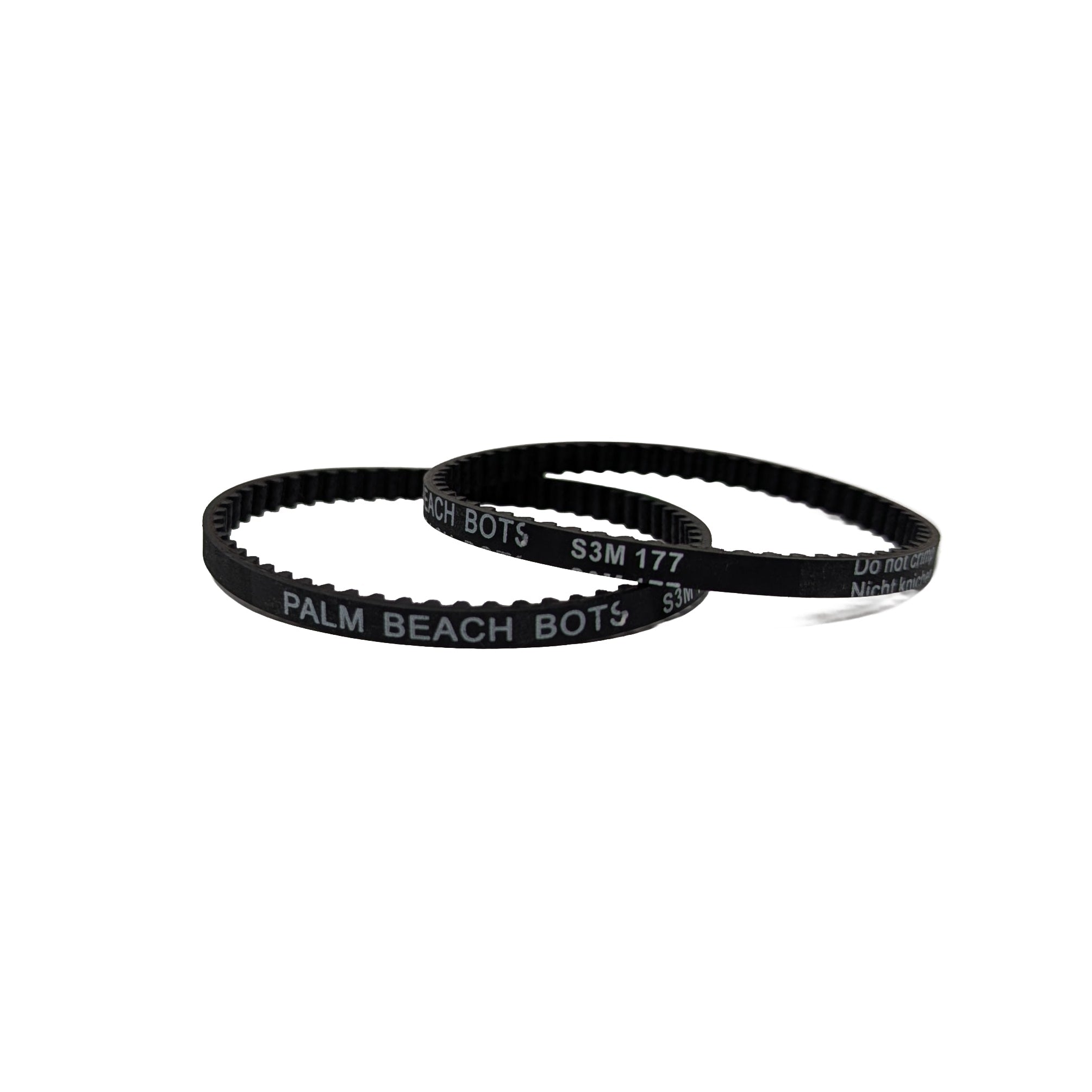

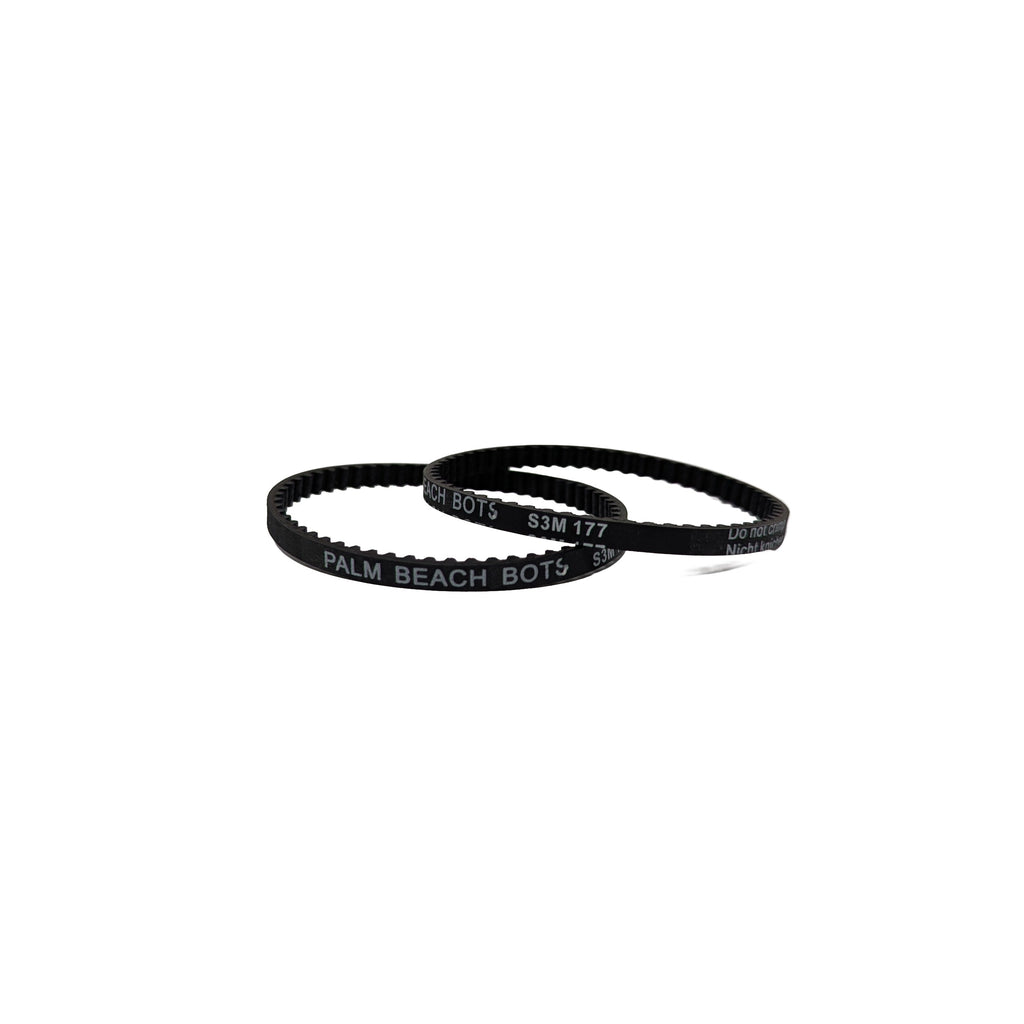

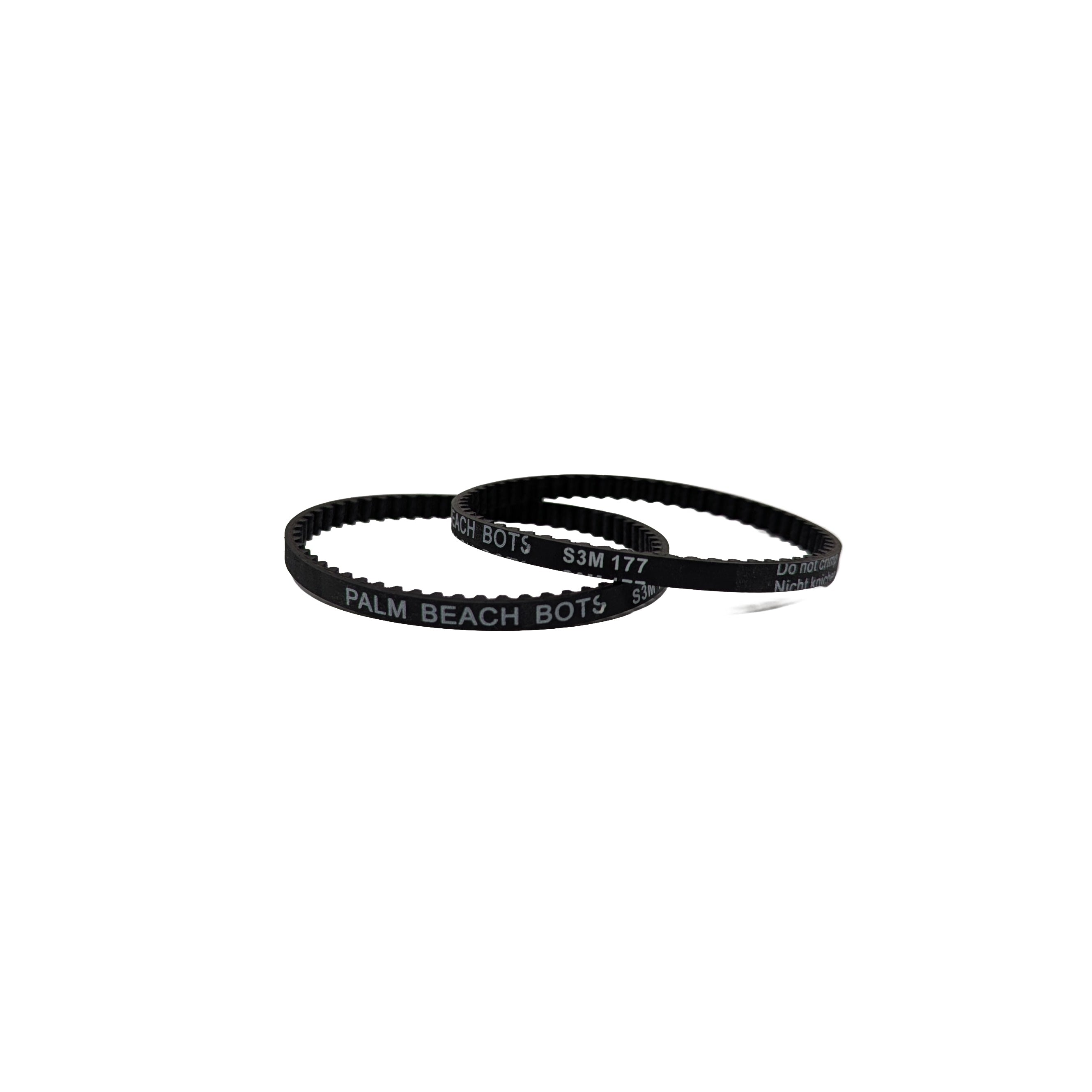

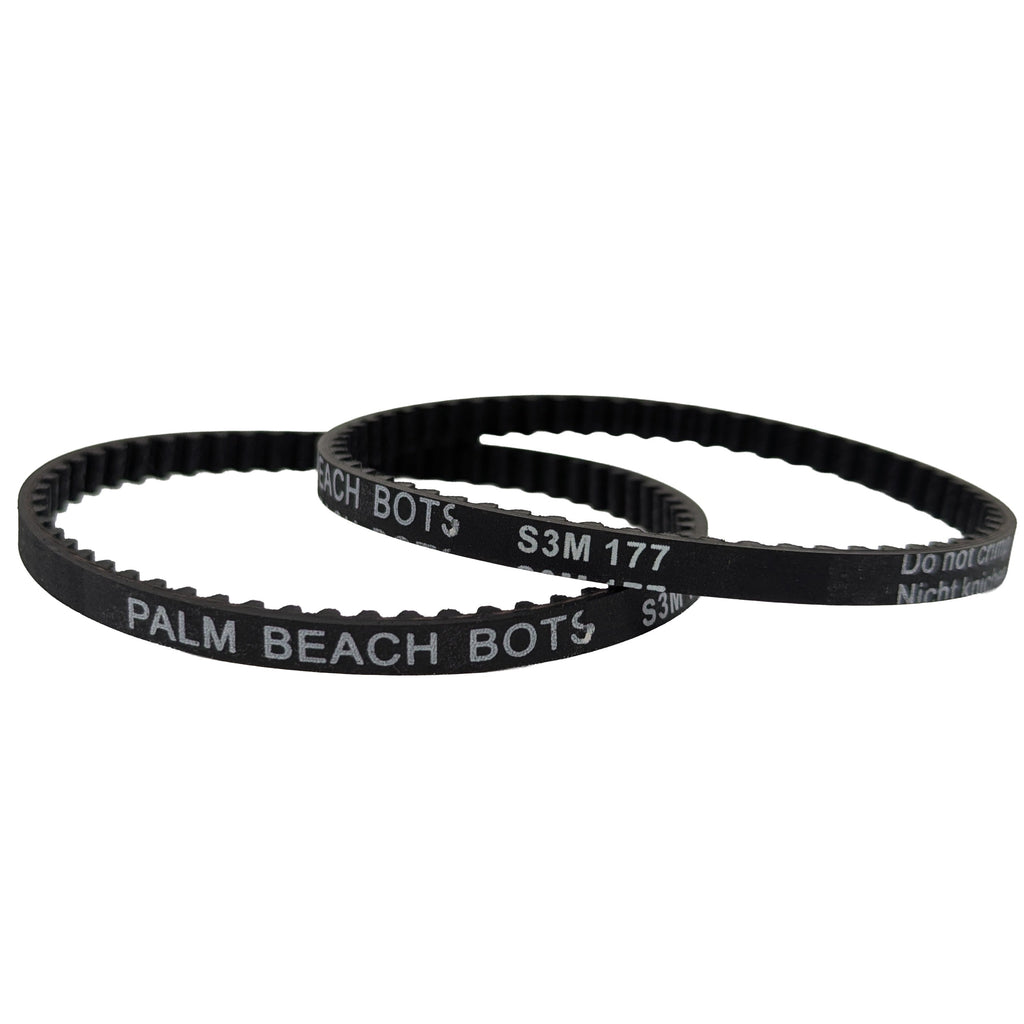

FingerTech S3M Timing Belt 177mm, 59Tft-belt-177
Timing pulleys and belts are the best way to transmit power from your motor to drive wheels or a spinning weapon.
While O-Rings and round belts will slip under tension, timing belts have teeth that ensure a positive lock to the pulleys.
A range of thirty-two belt sizes allows you to design your robot then pick a belt, rather than the other way around!
Use with FingerTech S3M pulleys, or any other 3mm pitch pulley.
•S3M pitch (3mm high-torque)
•Circumferences: 120mm (40T) - 408mm (136T).
Try our Pulley-Belt Distance Calculator! Pick from our available pulley and belt sizes and it will tell you how far apart they will be, OR plug in your desired distance and it will tell you which belt to use!
Pitch (distance between tooth centers): 3mm
Material: Chloroprene Rubber with Fiberglass reinforcement
Tensile strength: 19-25MPa
Max load: 360 Newtons
Weight (smallest to largest): 1 - 4g (0.04 - 0.14oz)
Circumference, # of Teeth:
