- When you don't want to solder every wire connection, these push-wire terminal blocks are a convenient solution.

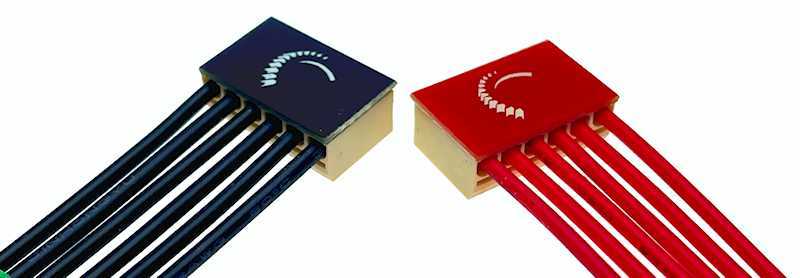

- Easily connect and disconnect up to six 18awg wires to a common connection point.

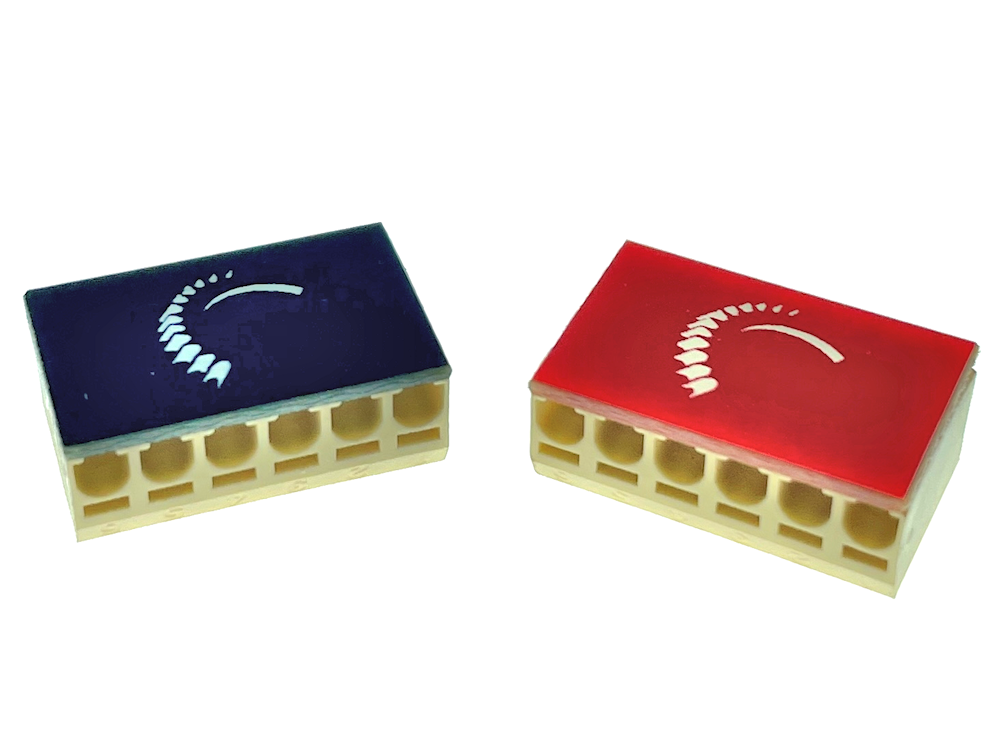

- Includes one red and one black terminal block for positive and negative (ground) connections.
Specifications:
- Includes one red and one black push-wire 4-terminal block.
- Material: Glass-filled nylon, 0.20m Beryllium Copper retainer tabs
- Dimensions (each): 10.6 x 9.8 x 5.8mm (0.42 x 0.39 x 0.23in)
- Weight (each): 0.7grams (0.025oz)
- Accepts wire size: 18-24gauge solid or stranded wire (larger wires can be used by trimming away enough strands to fit)
- Continuous Current: 6A (forever). Max current is 30A burst.
Installation:
- Strip insulation back 4-5mm (0.15-0.2in).
- Twist stranded wires before insertion. Tinning with solder is recommended.
- Push wire into one of four holes until stop is reached.
- To release a wire from the terminal block, push a thin flat tool into the slot above the wire to free it.
Installation and removal diagram
