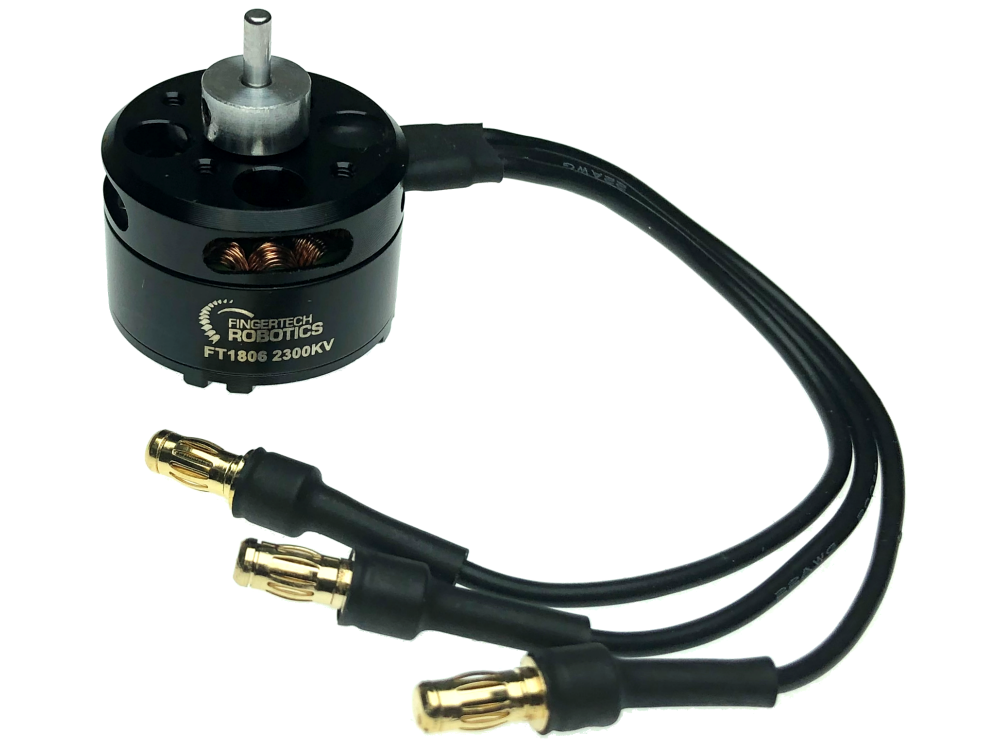

This is the FT1806-2300KV motor out of our Brushless Mega Spark Gearmotors. Use it as a replacement for battle-damage, or in your own creation. We have specially designed these to have no E-clip which creates a weak point in the shaft.
Motor Specifications:
- FT1806 Custom-wound High Performance Brushless Outrunner
- KV: 1500KV
- Voltage: 2-4S lipoly
- Recommended ESC: BL20A-R Reversing Brushless ESC
- Shaft Diameter: 2mm (0.078in)
- Shaft Length: 9.6mm (0.38in)
- Weight: 25.9g (0.91oz)
- Diameter: 23.1mm (0.91in) (slightly smaller than a 24mm gearbox, so it won't rub on a sidewall if flush mounted)
- Length (back to face): 18.5mm (0.73in)
- Motor Wires: 10cm long 26AWG with 3.5mm bullet connectors
- If you require a pinion gear to match the Mega Spark planetary gearbox, they are here: (11T Pinion) (One pinion comes with the gearbox if you are buying that already.)
