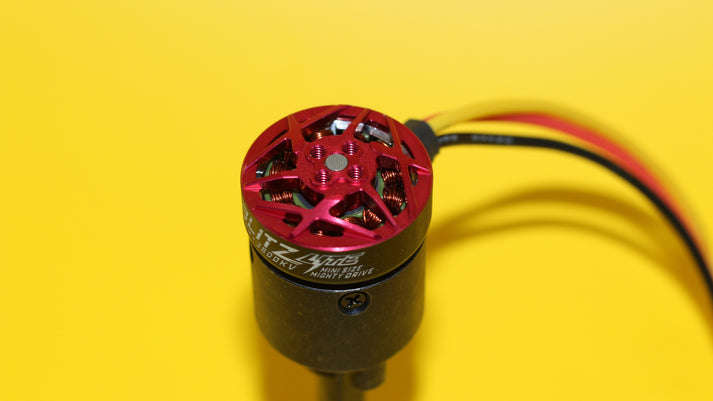

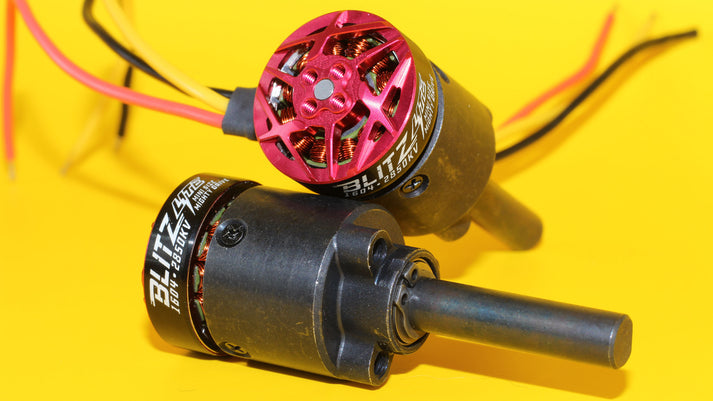

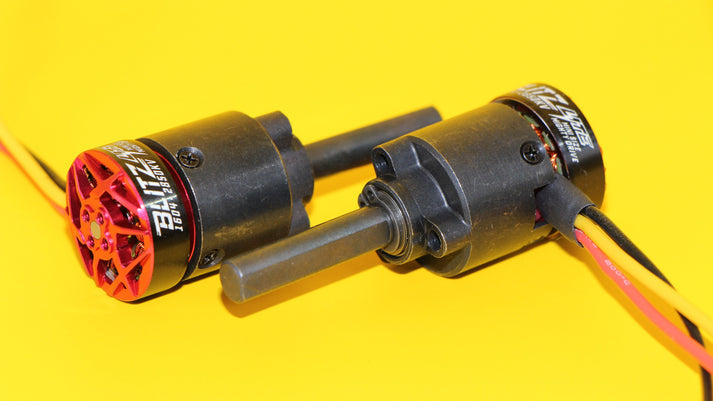

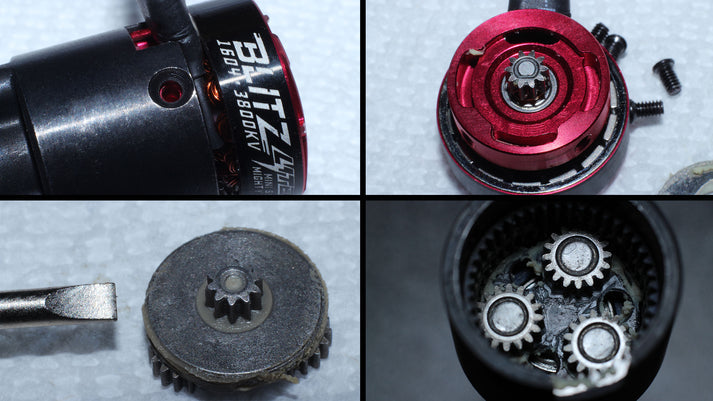

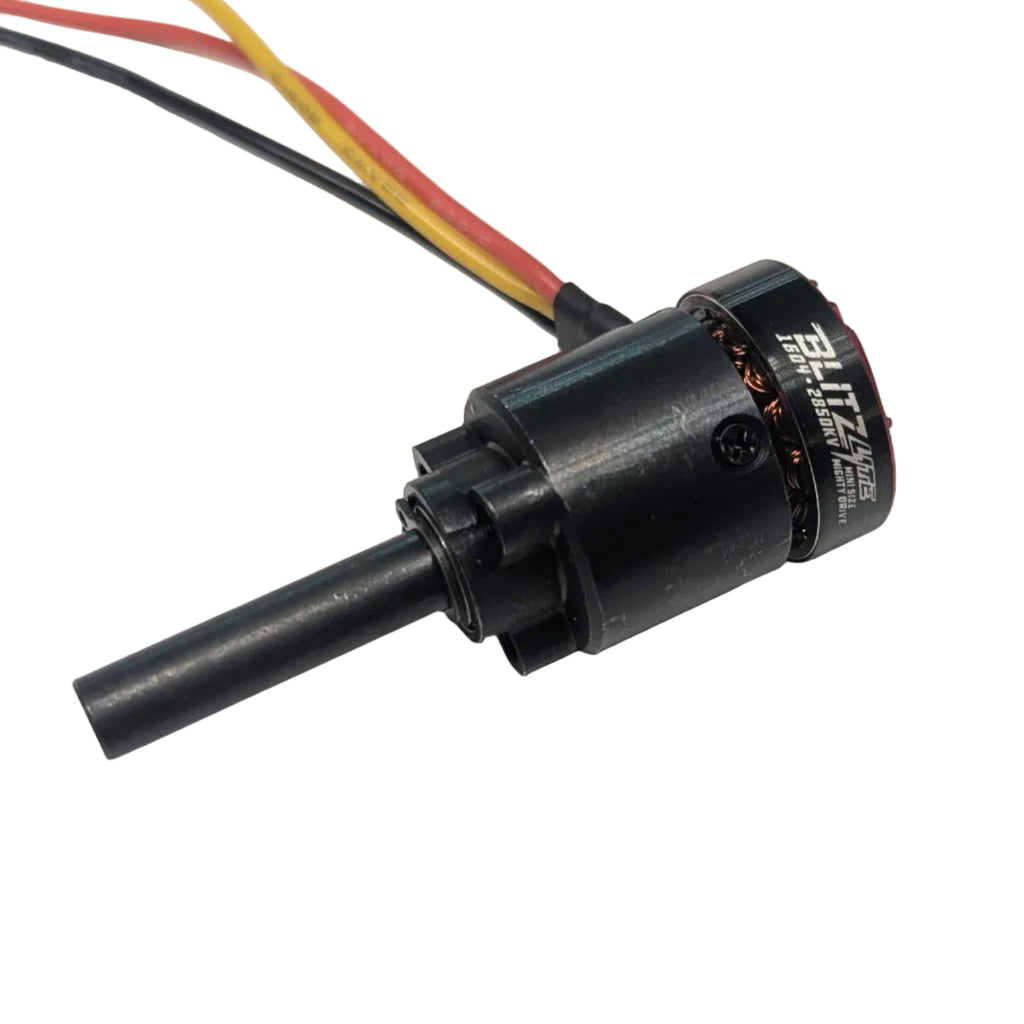

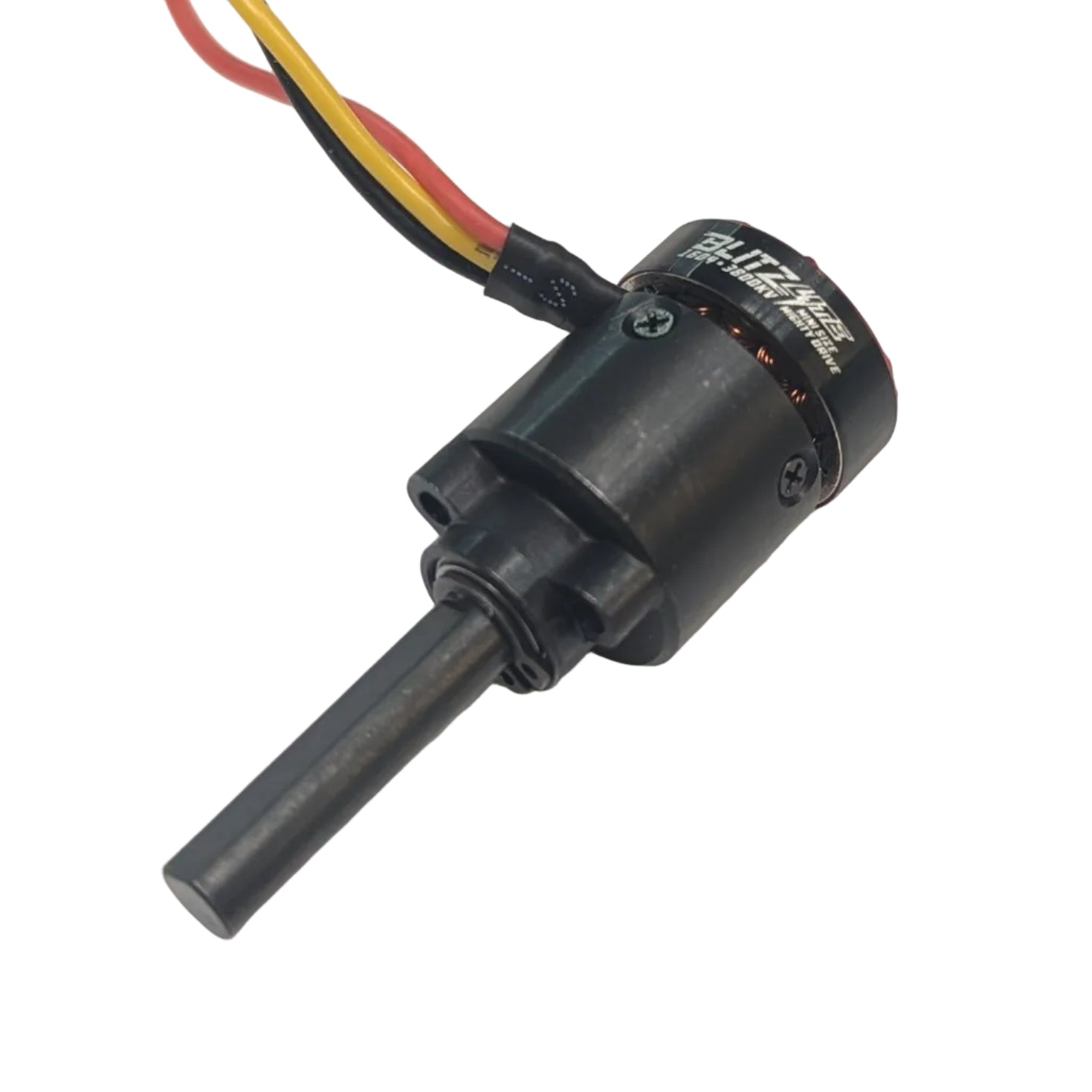

Blitz Lite motors are short, so let's keep this description short too. Blitz Lite is shorter and lighter than any other 6mm shaft beetleweight drive gearmotor on the market. To accomplish this, rather than modifying an existing gearbox, we designed a fully custom one from the ground up and invested thousands in tooling to bring it to life!
Features:
- Weight: 44.4 grams with full-length wires

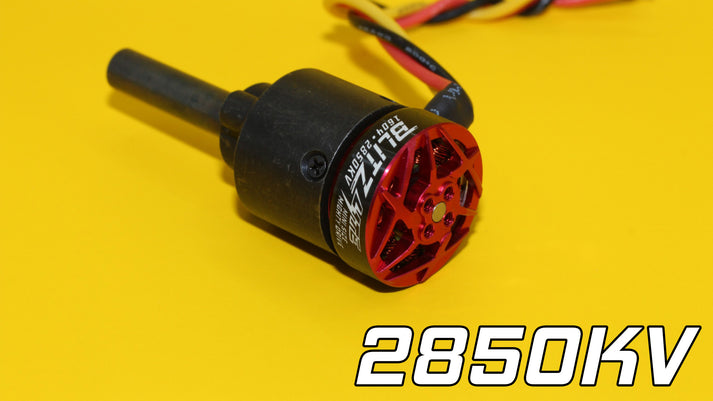

- Speed 2850KV:
- 1180 RPM on 12V/3S
- 1570 RPM on 16V/4S
- 1970 RPM on 18V/5S
- 2360 RPM on 24V/6S

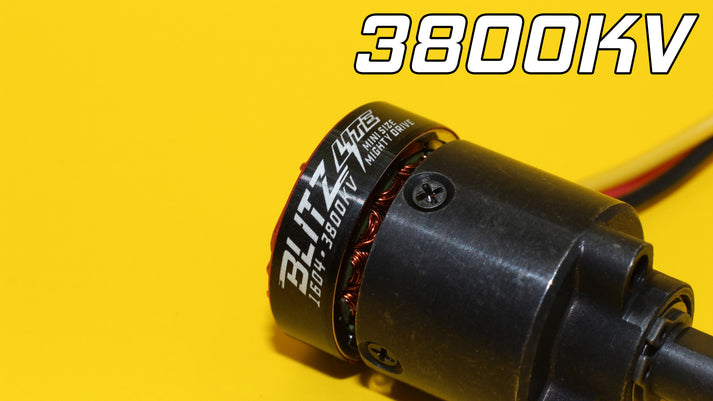

- Speed 3800KV:
- 1050 RPM on 12V/3S
- 1570 RPM on 16V/4S
- 2100 RPM on 18V/5S
- Dimensions: CAD Assembly Here
- Gearbox Diameter: 20mm
- Length: 5.2:1 Blitz Pro is just 37 mm from the mount to rear of motor
- Length: 29.3mm from the mount to rear of motor
- Shaft: 24mm long, 6mm diameter billet alloy steel D shaft

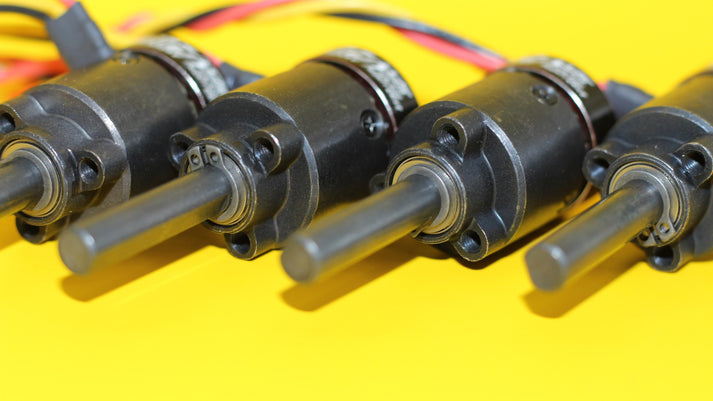

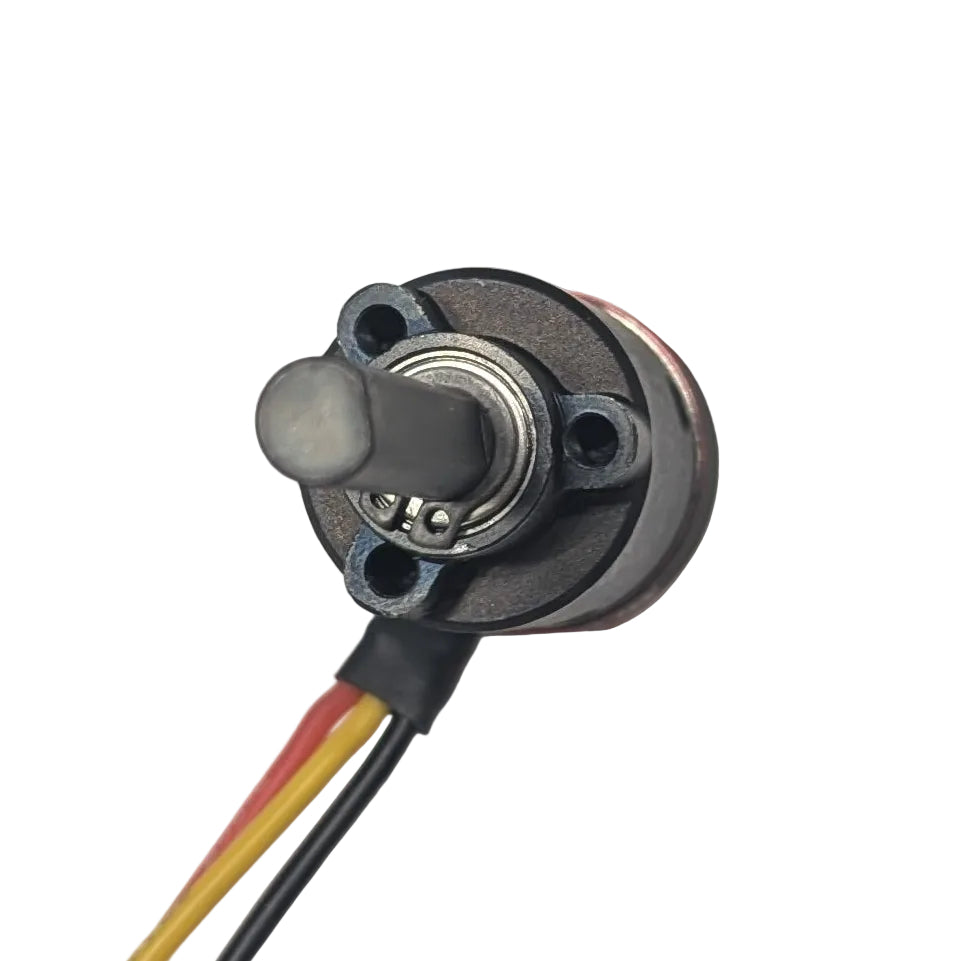

- 3X M3 Screw face mount, 15mm bolt circle, 4mm thread depth
