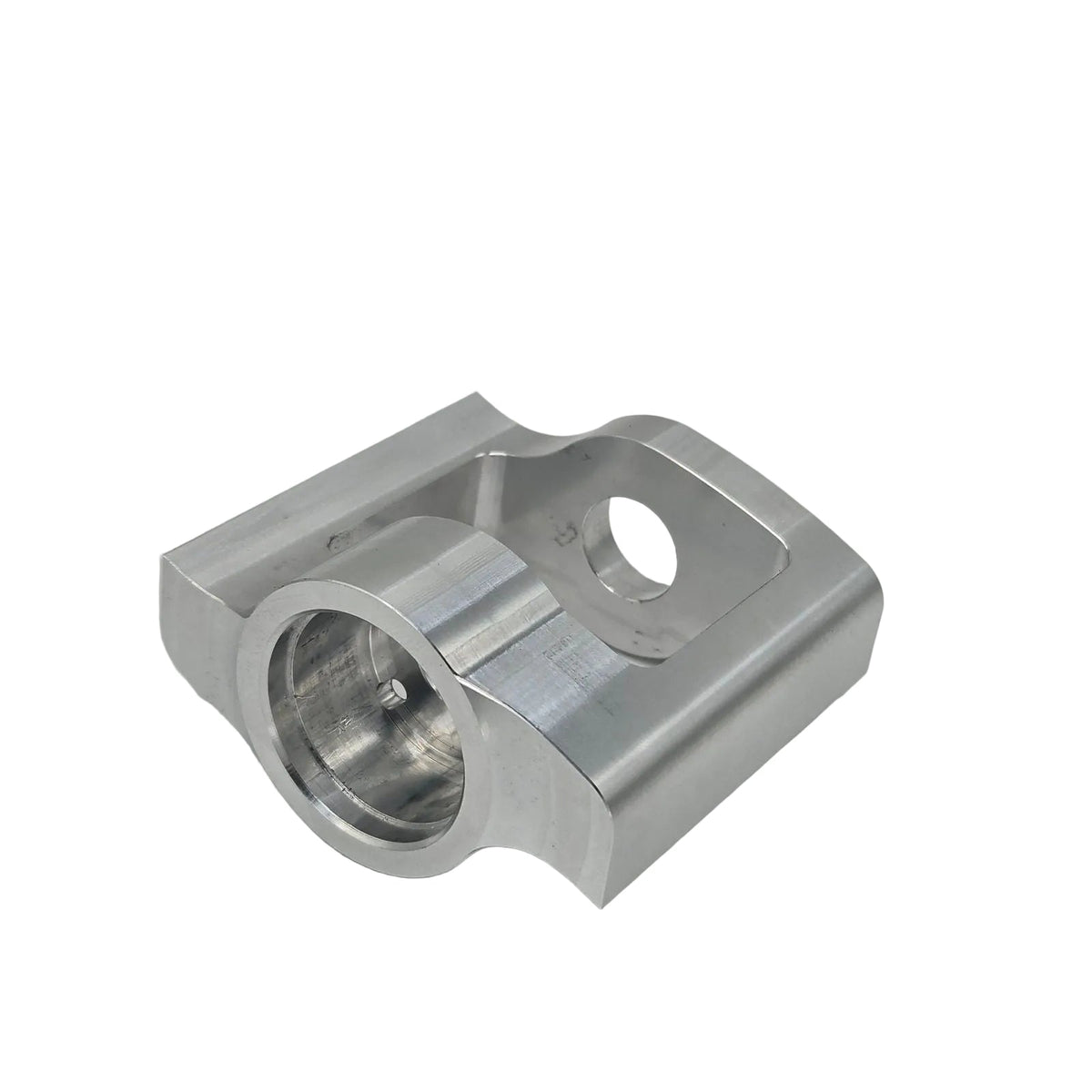

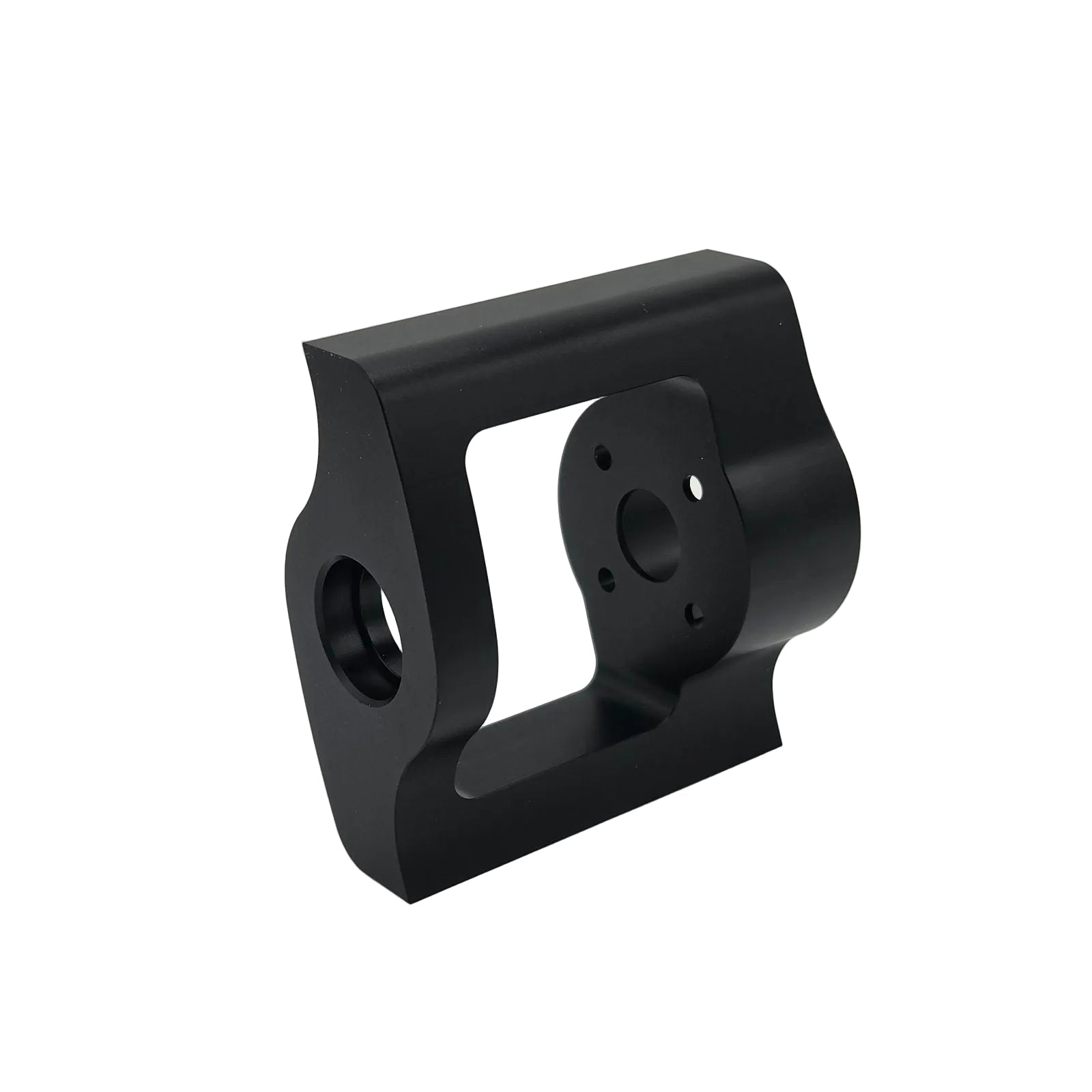

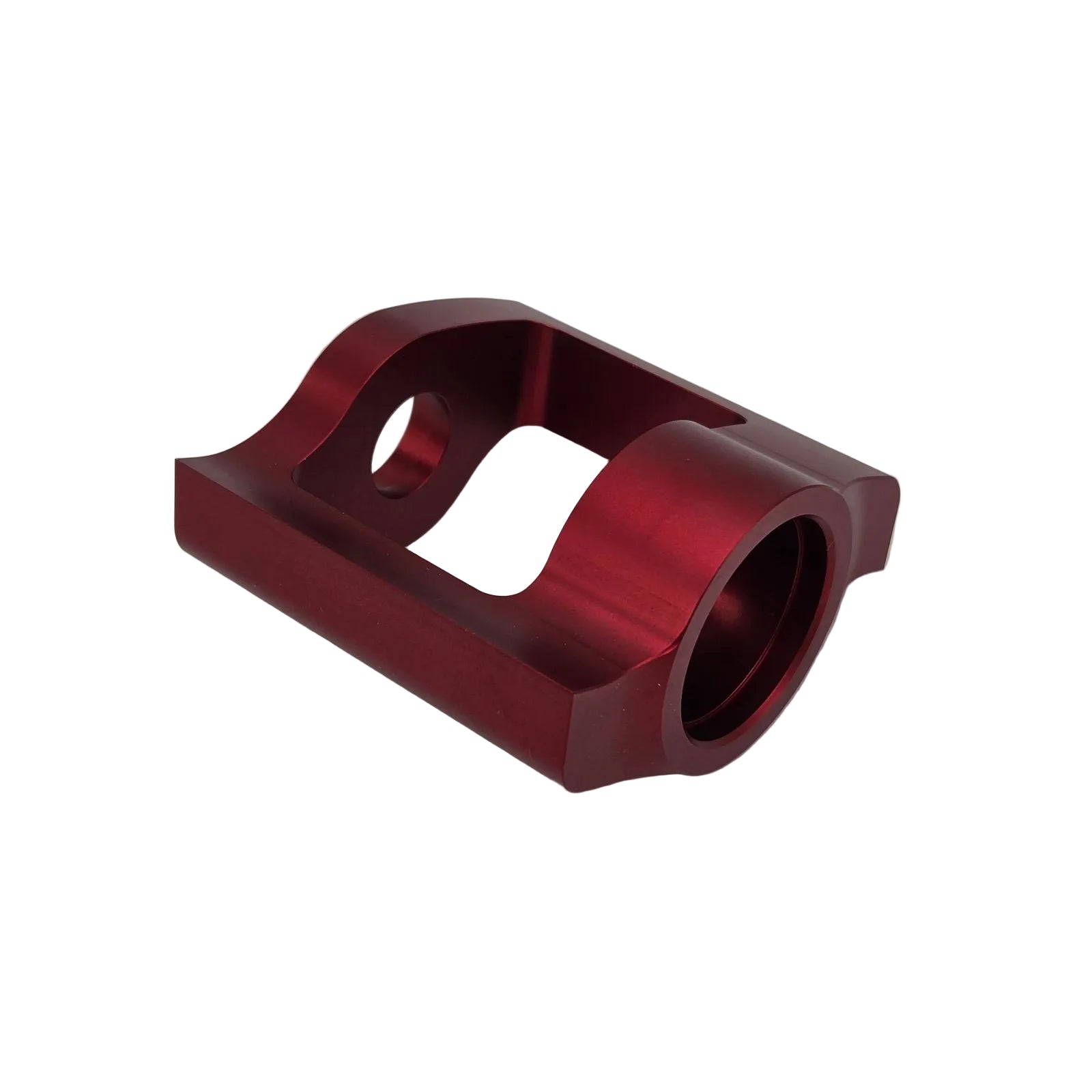

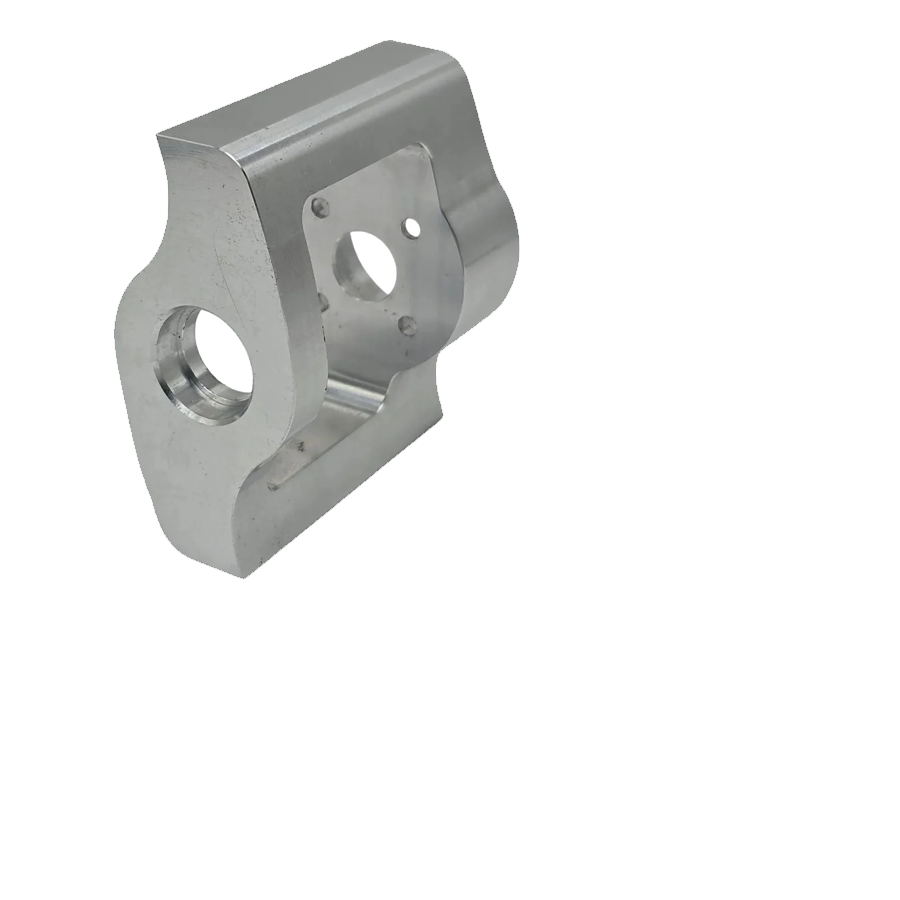

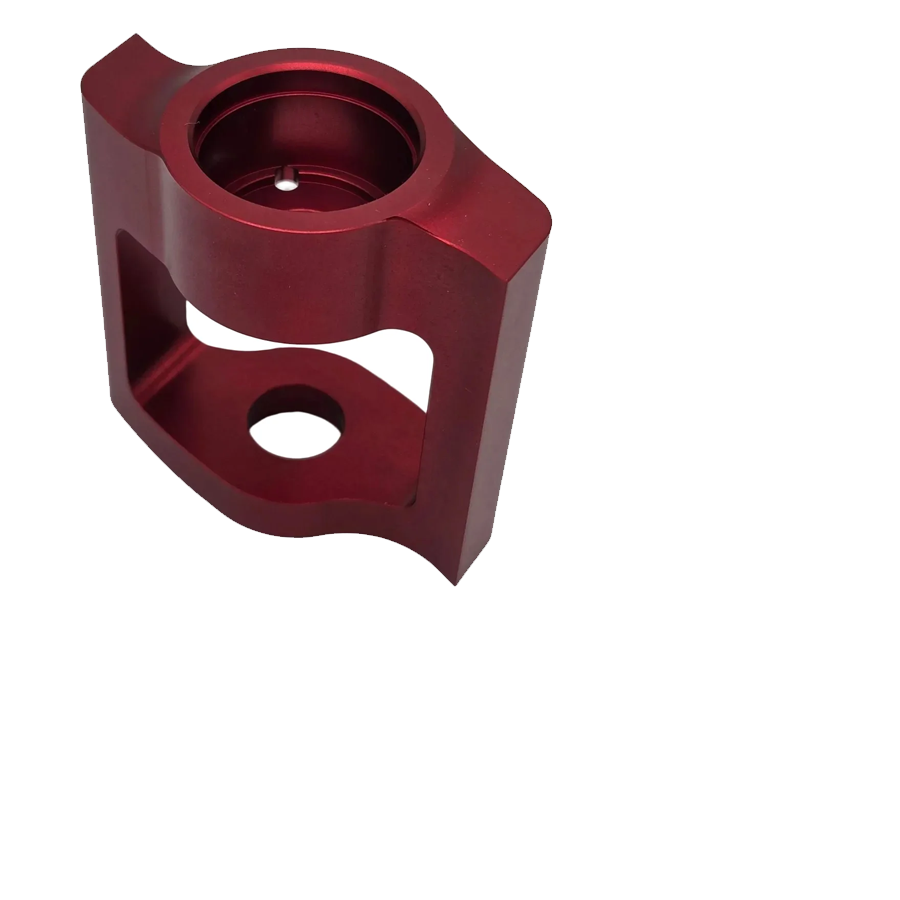

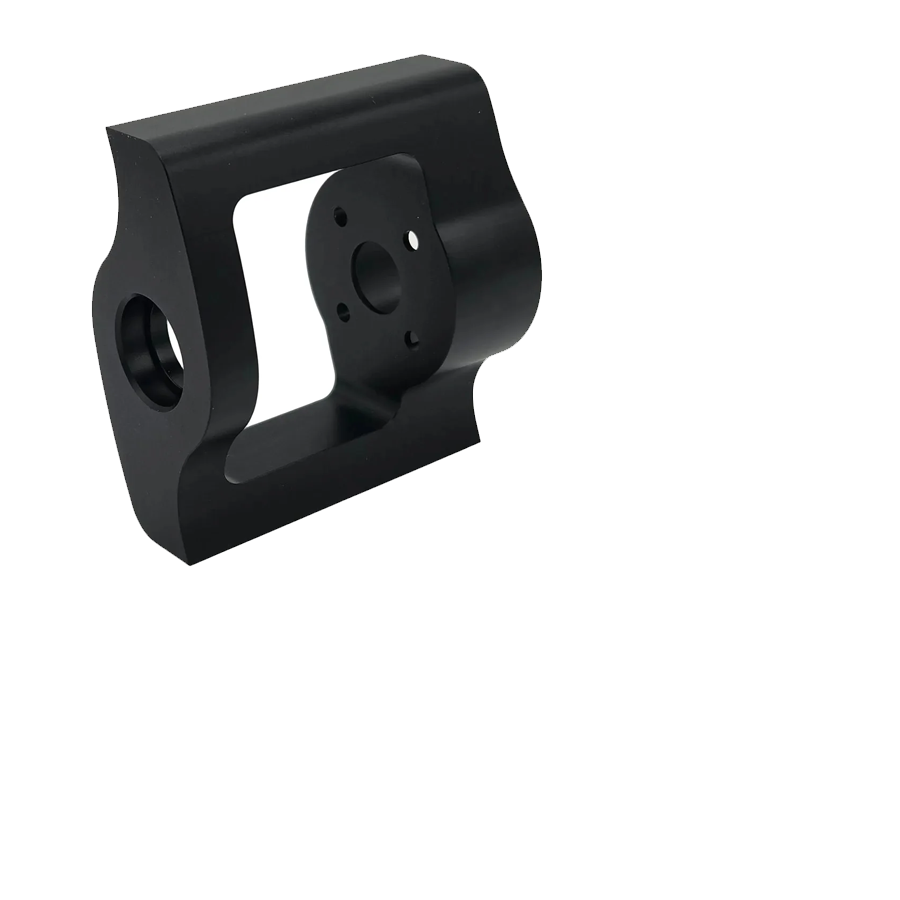

Looking for a hard hitting beater solution for your 1lb robot? This aluminum bar is designed to dish out hard hits nonstop! Tested in 1lb tournaments on 3 continents and over 100 fights, these are proven to pack a punch and keep on going.
Commonly needed components are available to add on as needed such as magnet ring, stator, mounting washers & hardware kit. Click Here for those parts
Specifications (Bar Only):
- 91g weight
- Symmetric tooth style for even wear
- Durable 7075-T6 aluminum
- Designed to fit Repeat 2207 hubmotor internals

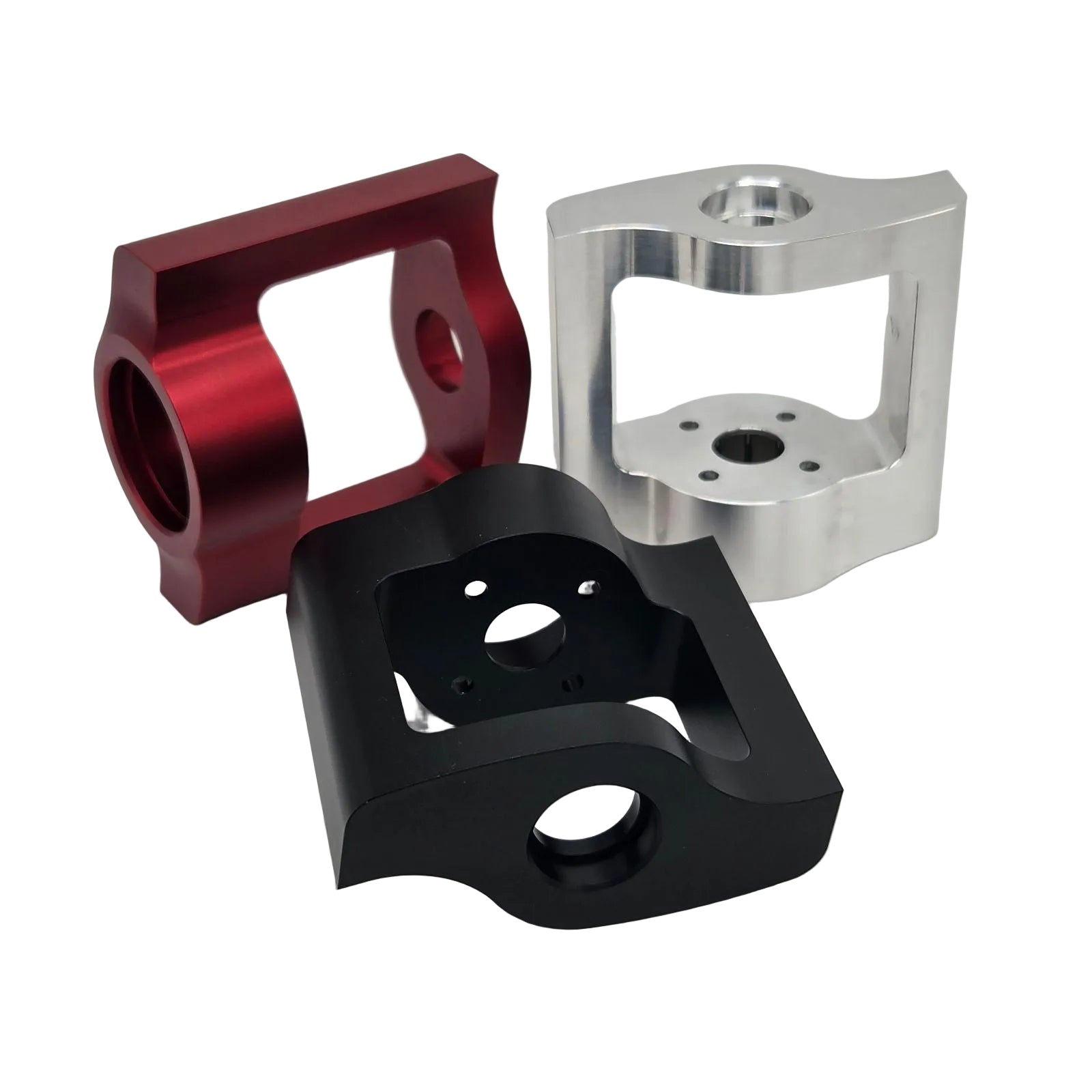

- Comes in Raw aluminum, Red anodize, or Black anodized finish
- Includes 1x beater bar
Specifications (With all optional components):
- 144g total weight including hardware and hubmotor
- 98g spinning mass
- 2.5 inch diameter, 2.5 inch frame center to center
- Designed for .25 inch thick frame rails
NOTE:
- The custom Ti shafts were slightly oversized so the R4 bearing does not easily fit onto them. This can be fixed by sanding one side so the bearing slips on
- The beater ID for both magnet ring and R4 bearing are a loose fit. Repeat recommends attaching the magnet ring/bearing into the beater with Loctite 638 (green) or a little bit of super glue.
Links:
Video Assembly Guide
CAD Model
Magnet Ring Press Tool CAD
