Need a simple and lightweight solution to mount motors in your antweight? Here ya go! Weighing in at just under a gram each you can't get much lighter. They mount to the bot using the same pattern as the popular aluminum FT Mounts making them a drop in replacement. There are 4 motor mounting holes providing multiple options for motor orientation in the bot.
Specifications:
Height: 22.25mm
Width: 22.25mm
Thickness: 1.5mm
Weight: 0.9grams each (1.8g per pair).
Chassis Mounting: Four 3.45mm diameter holes at the corners spaced 15.88mm apart.
Motor Mounting: Eight radial 2.44mm holes match the 11mm spaced 2-56 screw pattern on Spark Motors
Mounting:

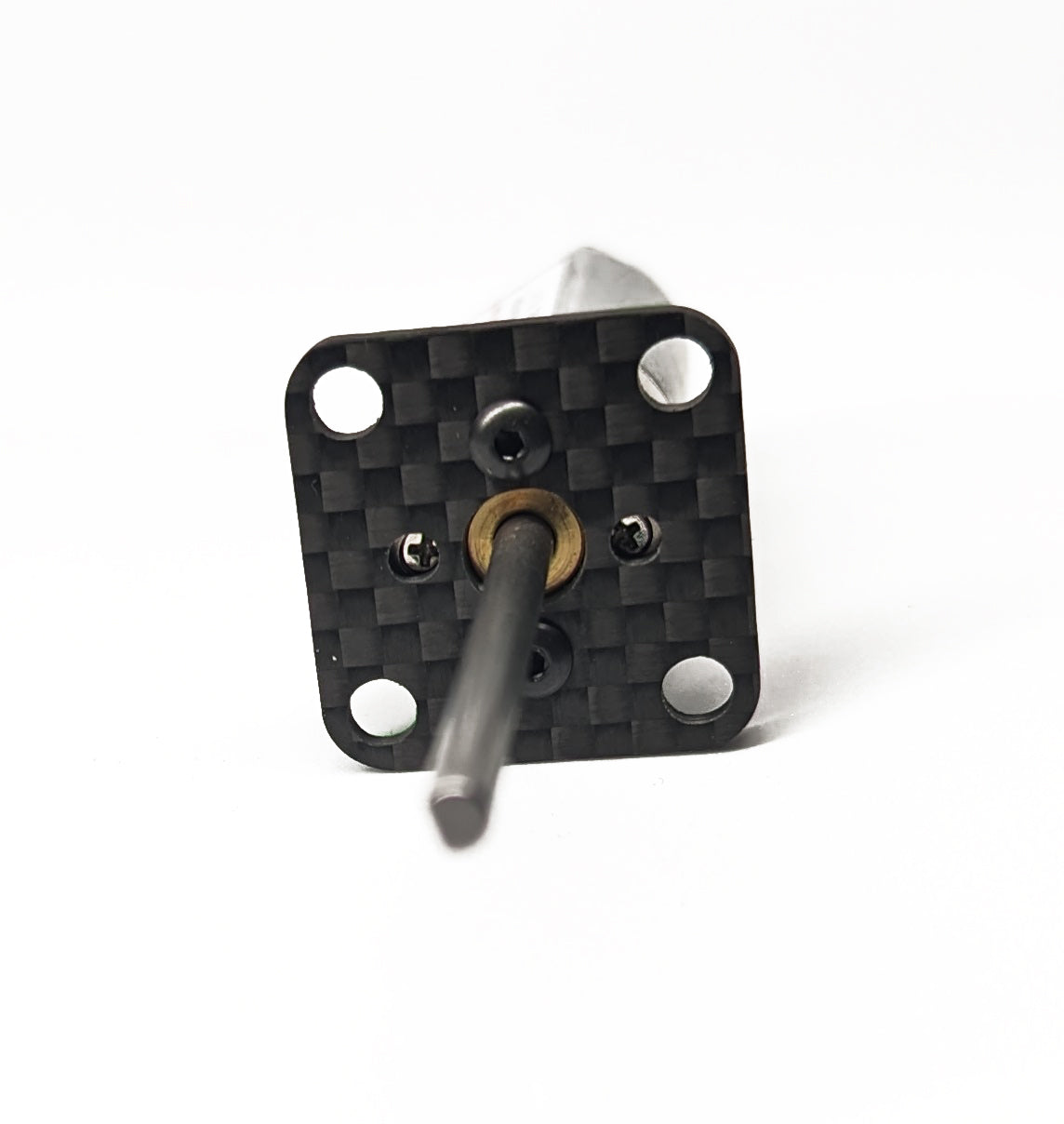

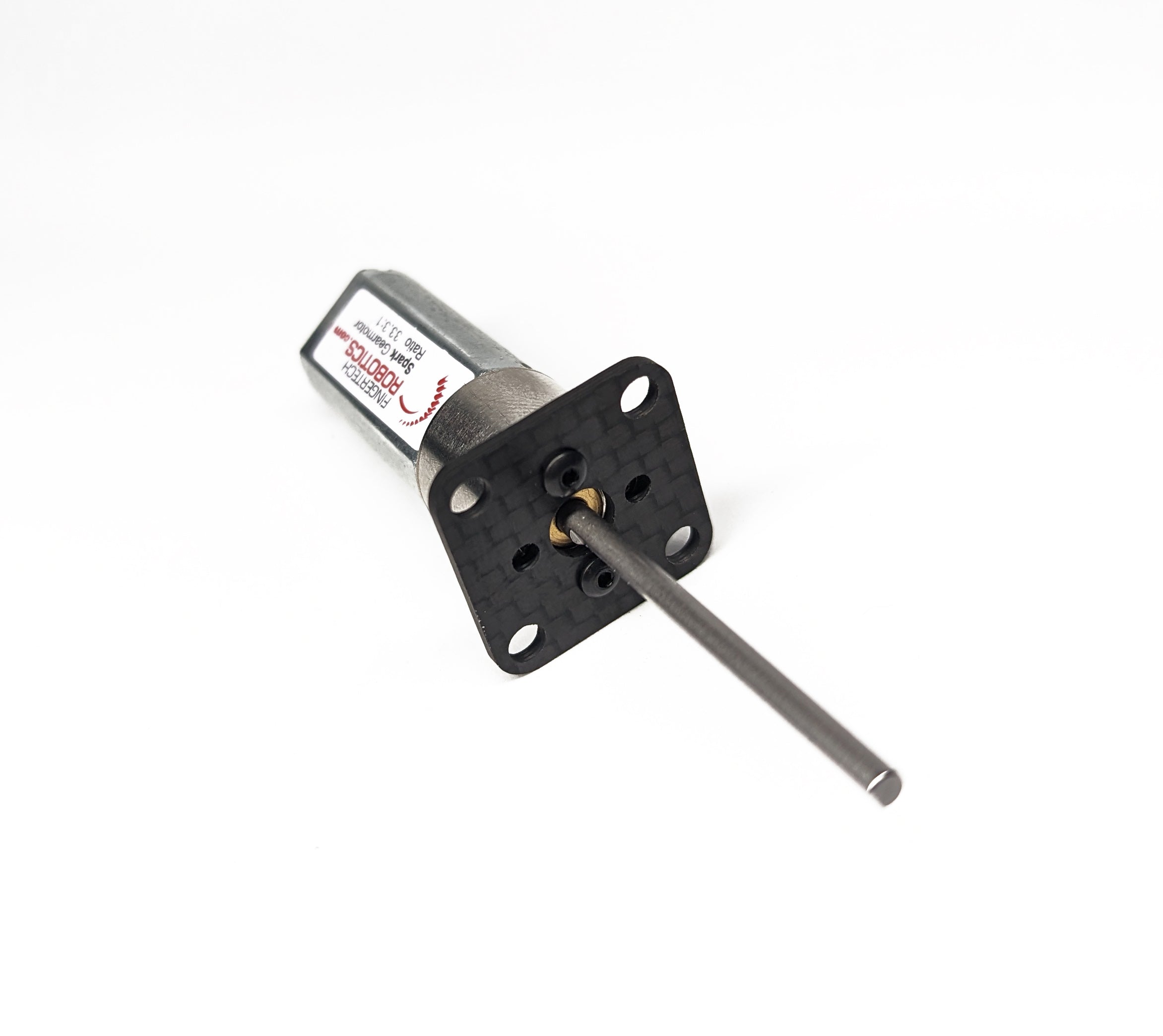

To mount Spark Motors, use 2-56 x 1/8" screws.

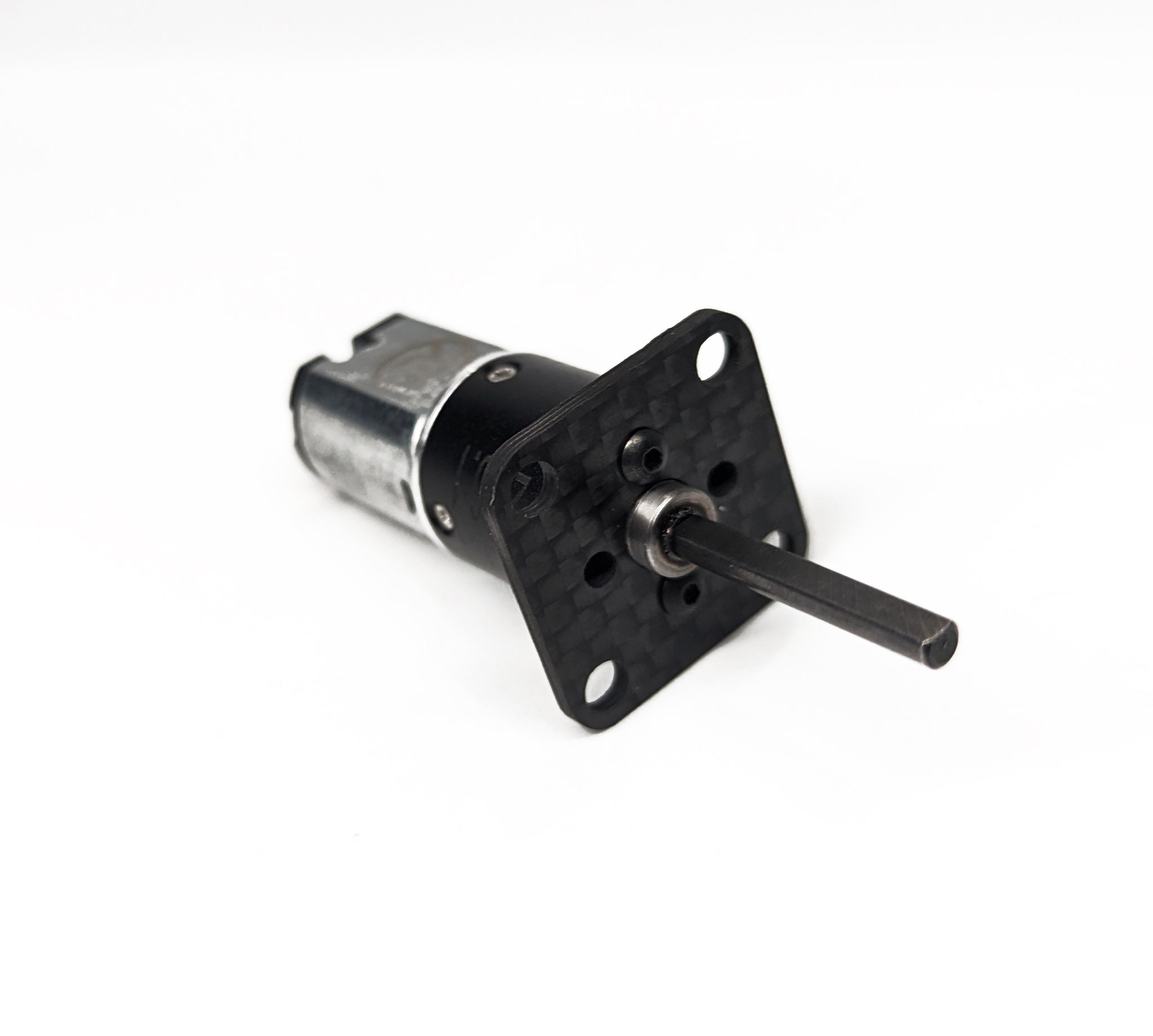

To mount Repeat 16mm Motors use M2x4mm screws.
Mounts can attach to chassis using any fastener that fits thru the hole. Most common are 4-40, 6-32 or M3.
