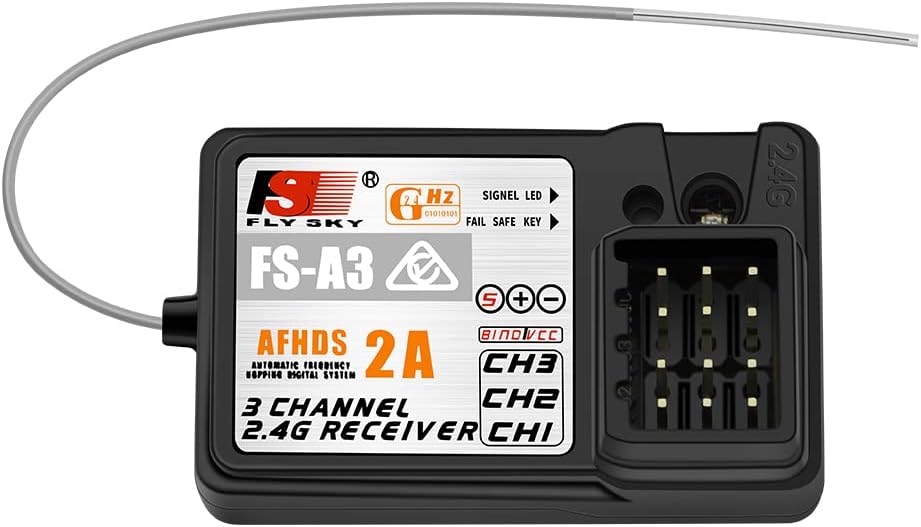

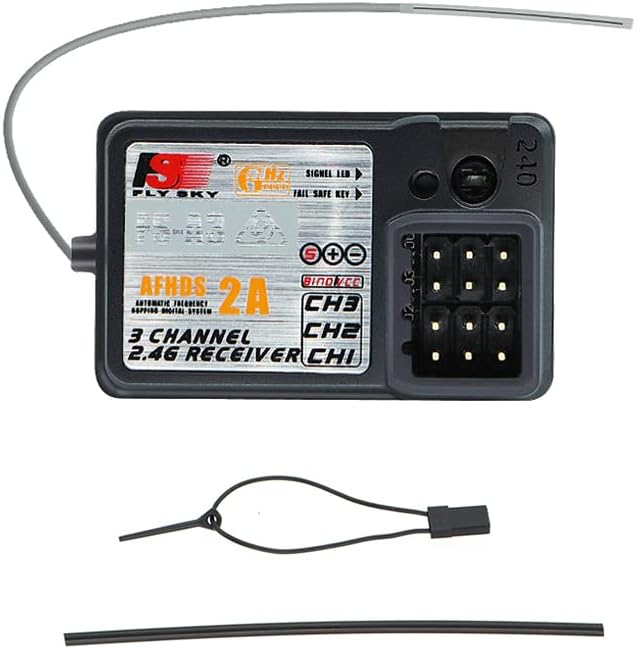

FlySky FSA3 3 Channel Receiver, AFHDS 2A protocol. This is the receiver found in our Skizo kits and Plastic Ant kits for use with the FS-I4 remote. Also compatible with the FS-I6 transmitter and any other AFHDS2A protocol radio.
Specifications:
- Receiver Size: 36x23x13.5mm
- Protocol: AFHDS 2A
- Weight: 6.7g
- Operating Voltage: 4V - 5V
Binding Instructions:
Instructions below for FS-I4 transmitter. Should be similar for other radios.
Video Link: https://www.youtube.com/watch?v=uQMGIMDmkpA
- First power off the robot and transmitter. Plug the included bind plug into the Bind/VCC channel of the receiver.
- Power the robot on. This will get the receiver quickly blinking as it waits for a transmitter to bind to.
- Press and hold the "Bind" button at the bottom left of the transmitter and turn it on. The receiver's red light move to a slow blink.
- Power off the transmitter and robot. Remove the bind plug from the receiver.
- Binding is complete, When you turn on the radio and robot the light on the receiver will be solid and it's time to go have fun!!
