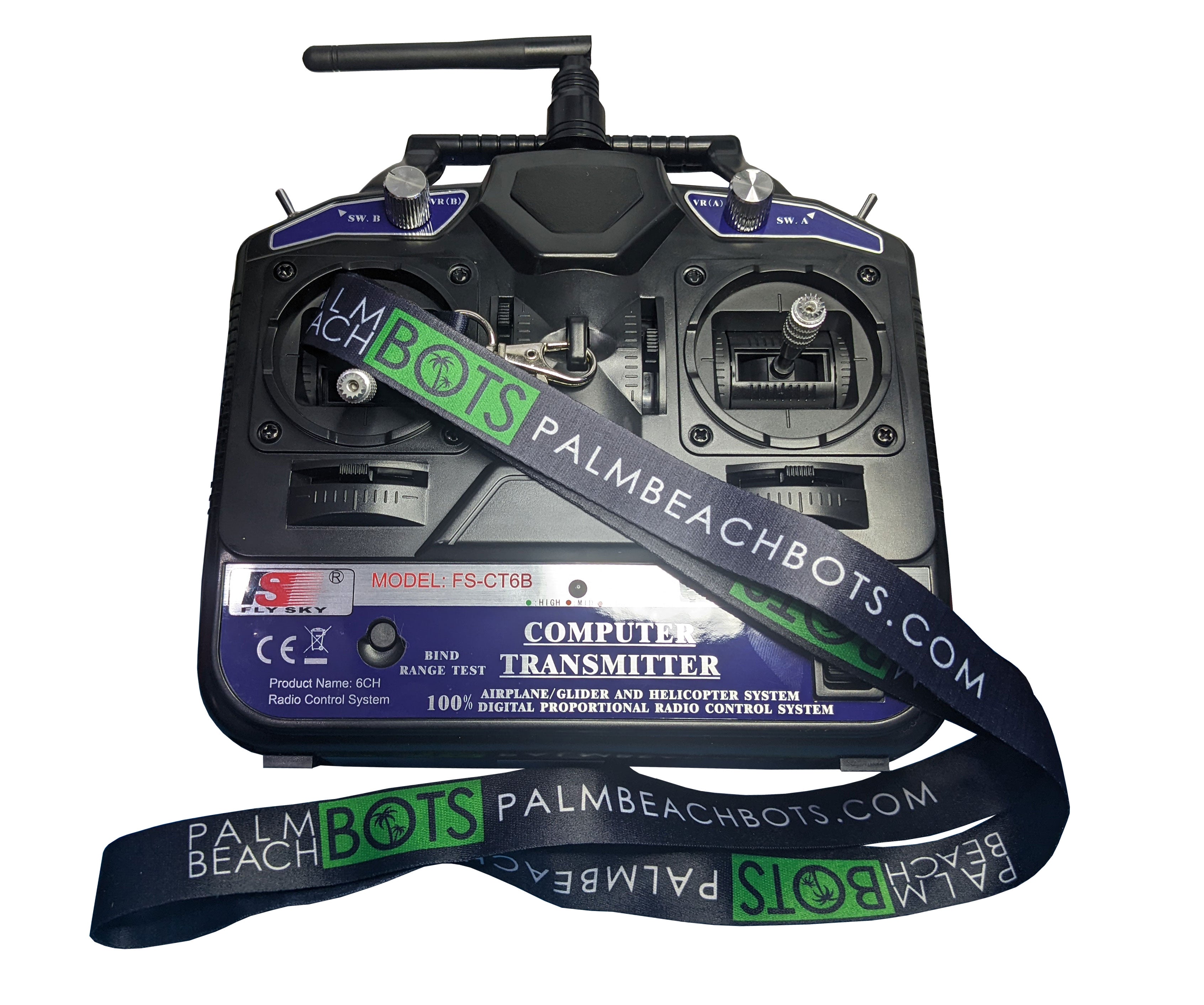

The simple 6-Channel 2.4GHz Transmitter has a knob and switch for both Channels 5 and 6. This allows you to set a motor speed or servo position, then switch it on to that preset position.
The right stick has spring return on both axes, the left stick has a ratchet for the up/down axis.
This radio is legal for all SPARC Robot Combat events! Upon loss of transmitter signal, the receiver outputs all hold in "off" state. Most new motor controllers (like our tinyESCs) interpret this as motor-off and therefore pass the failsafe requirements. Servos will hold their last position, so make sure that does not pose a hazard in some way.
This transmitter has three programmable mixes, endpoint adjustment, subtrims, servo reverse, dual rates, and throttle curves!

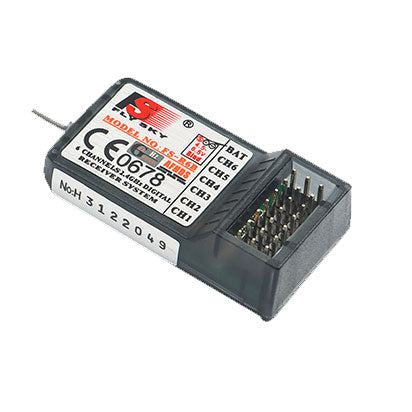

- Requires an R6B or T6RA V2 receiver- INCLUDED
- Comes with Mixing programmed on Channel 1 & 2 for single-stick robot drive applications.
- Programming cable included
- Protocol: AFHDS
(Download the CT6B Manual.)
Includes a free Palm Beach Bots lanyard/transmitter strap!
Note: This radio and the Turnigy T6A are the same radio. Receivers and transmitters are interchangeable between the two.
