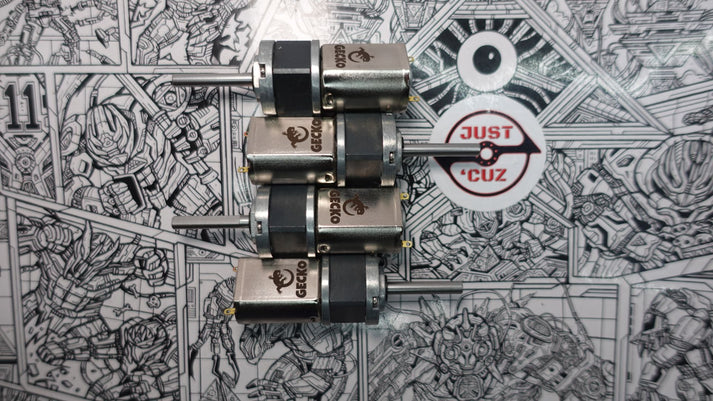

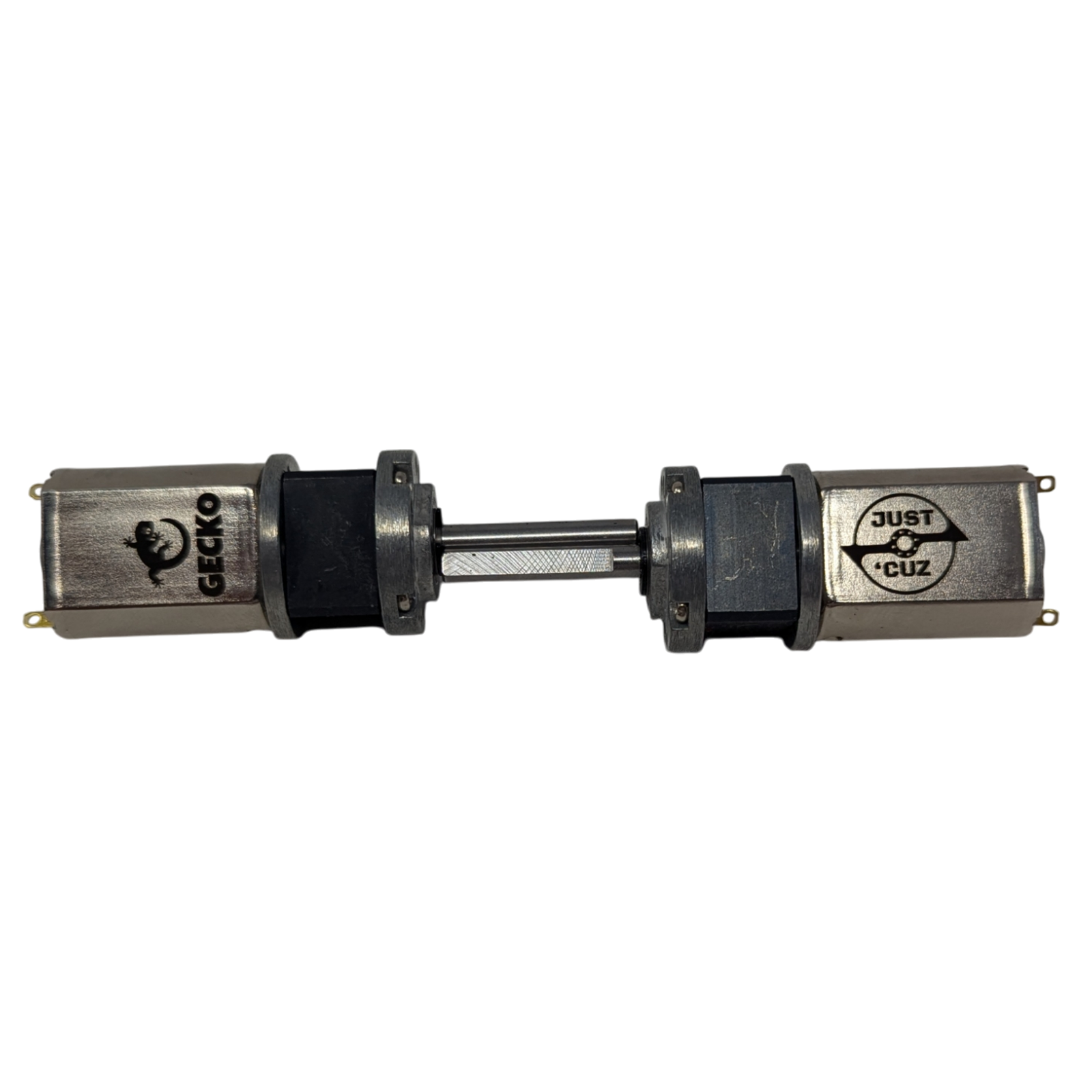

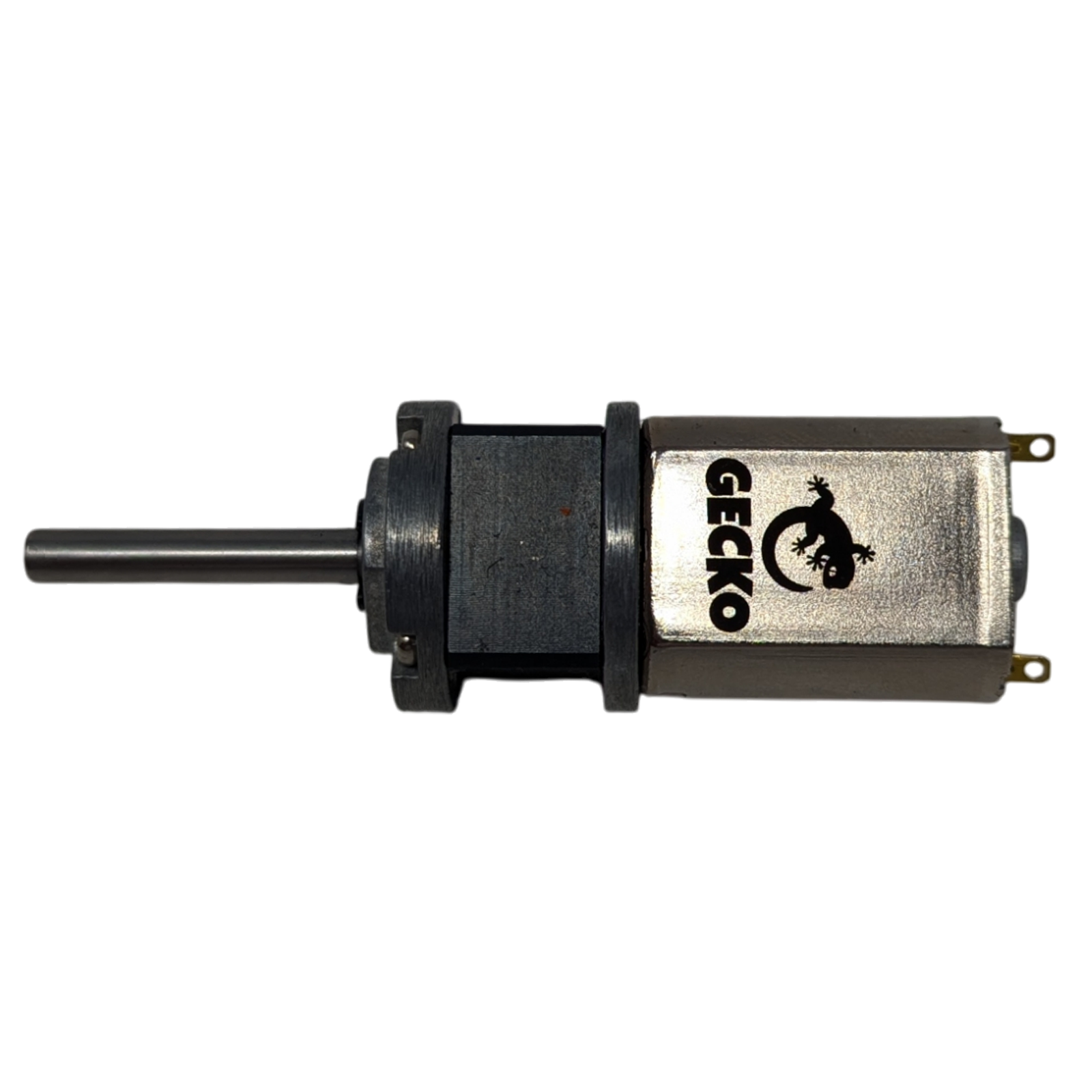

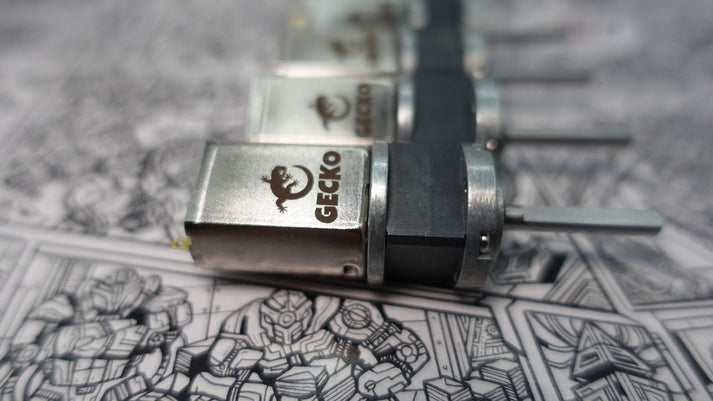

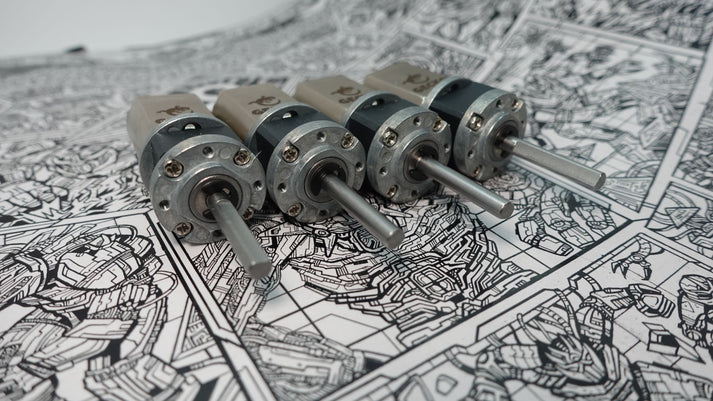

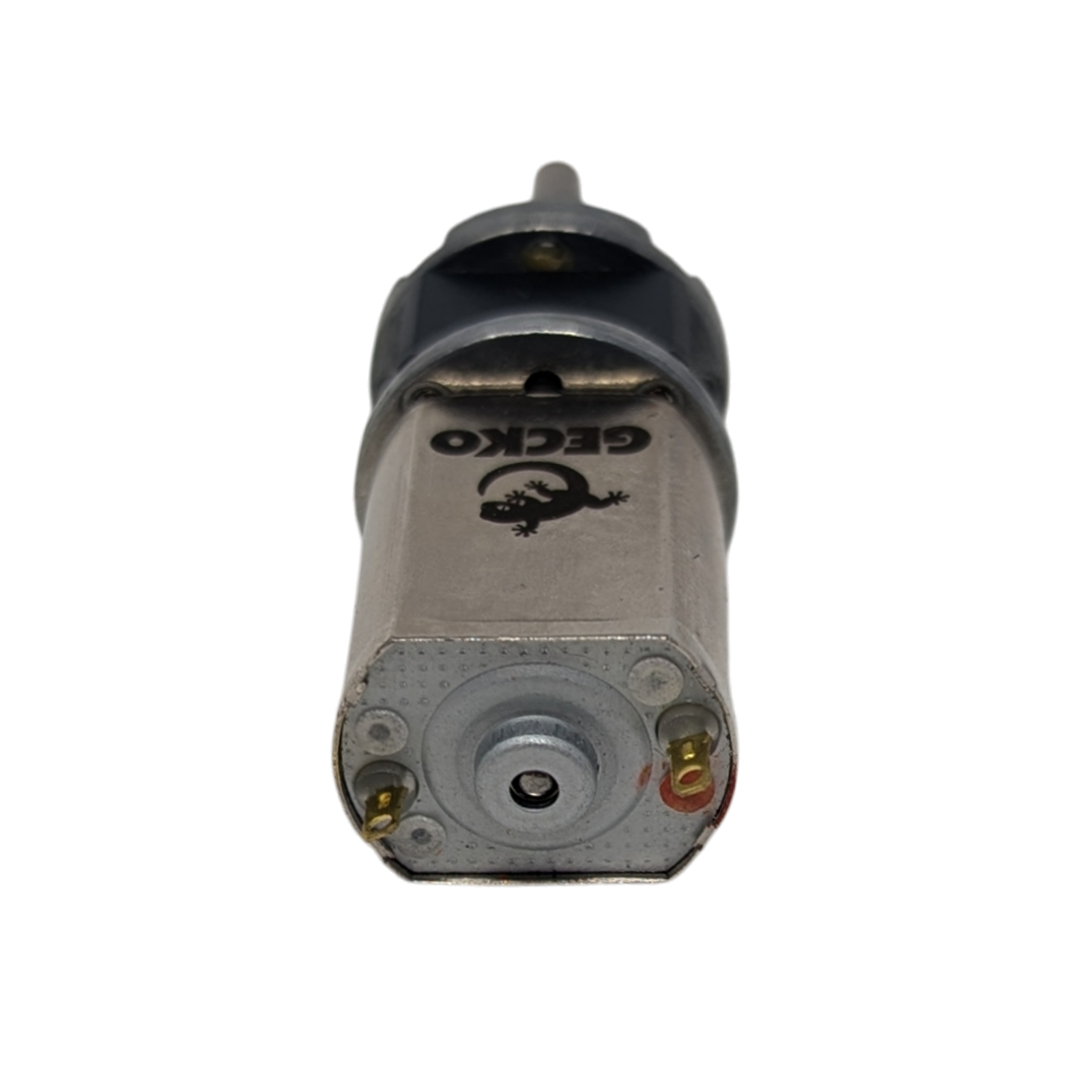

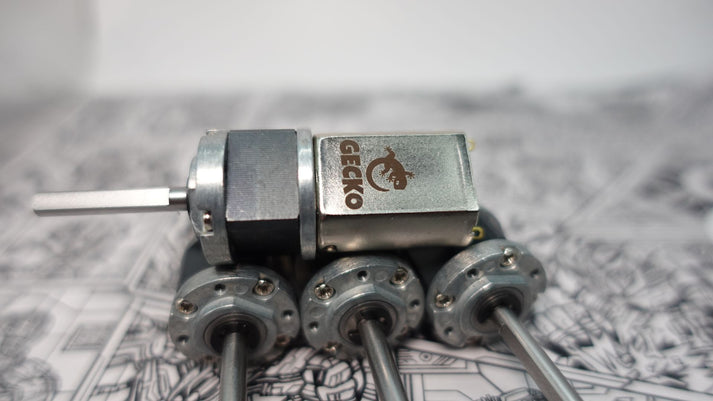

The Just Gecko Motors are here. Geckos are a mainstay in any brushed beetle drive system. Available in 4mm (this listing) as well as 6mm shafts.
Requires a 4mm wheel hub. Works with common 4mm hubs (Twist Hubs, Banebots T40/T81, Repeat Eco)
Pairs great with the Repeat 15A Dual Brushed ESC and Fingertech Mega Spark Mounts.
Features & Specs:
-
Dimensions (Drive): CAD Assembly Here
- DartBox Diameter: 22mm
- Gear Ratio: 22.5:1
- Length: 46.5mm from the face. Gearbox 19.4mm + Motor 27.1mm
- Shaft: 24mm long, steel D shaft
- 4X M2 Screw face mount, 18mm bolt circle
-
Weight:

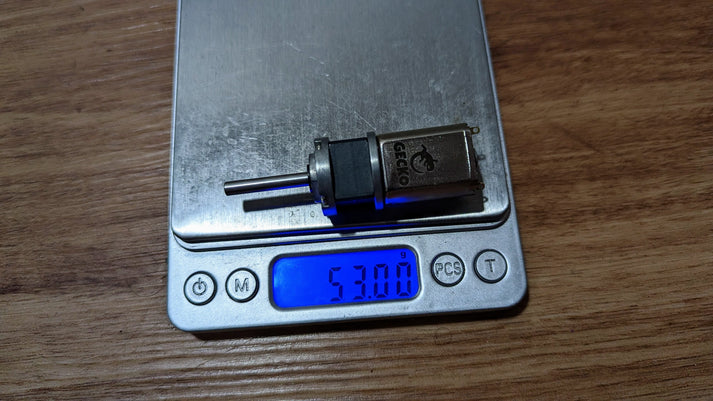

- 53.7 grams (1.89 oz) with Gecko 4mm Shaft (this listing)
- 56.0 grams (1.97 oz) with a 6mm Shaft
-
Speed:
- 1100 +/- 55 RPM Max @ 12V / 3S
- ~1520 RPM Max @ 16V / 4S
- ~1900 RPM Max @ 20V / 5S
- ~2350 RPM Max @ 24V / 6S
-
Stall Torque: (Measured on one motor, results may vary)
- 11.1V / 3S: 58 ozf-in (4.2 kgf-cm)
- 14.6V / 4S: 63.2 ozf-in (4.6 kgf-cm)
- 24V / 6S: To Be Tested
-
Stall Current:
- 3.5A at 11.1V (3S nominal)
- 4.5A at 14.6V (4S nominal)
- 8A at 24V
