Description
- Replacement UHMW Motor Guard for the Viper Tail Spinner Add-On.
- Is your Tail Spinner's armor getting a bit chewed up? Going to an event and needing spares? Grab a couple of these and you're good to go!
Specification:

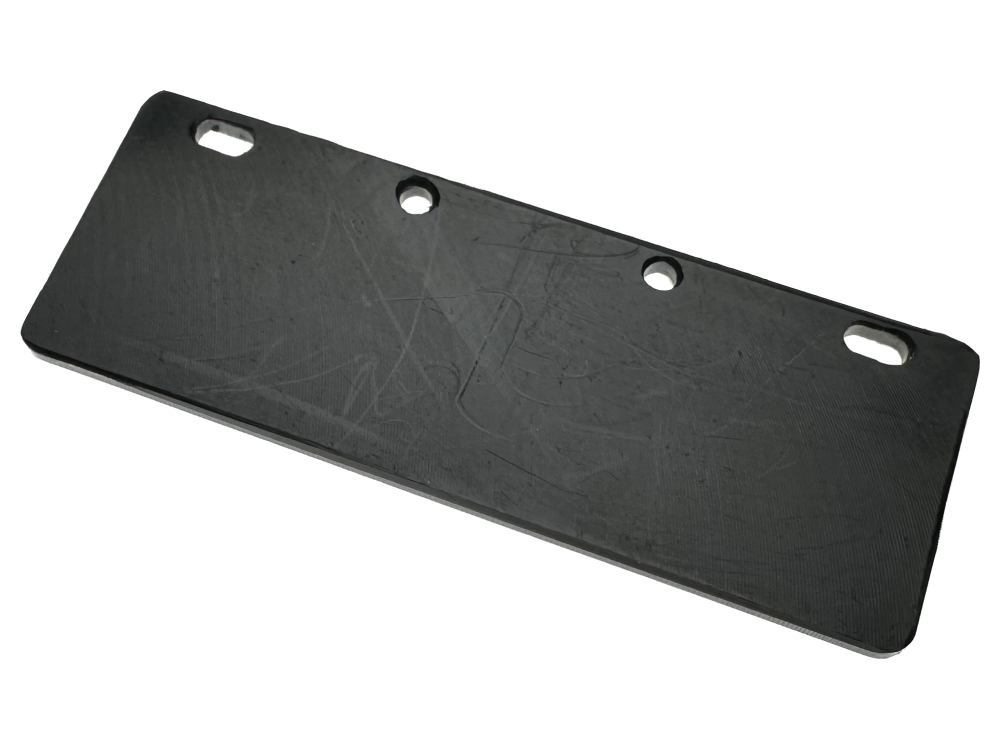

- Material: UHMW Polyethylene, 3.17mm (0.125in) thick
- Size: 87 x 31.75mm (3.43 x 1.25in)
- Weight: 7.5grams (0.26oz) Two holes plus two slots for mounting to a UHMW Tail Arm.
Notes:
- Shipped flat. To bend:
- Clamp the UHMW Motor Guard 2cm (3/4”) from the end and bend it over 90 degrees.
- Repeat with the other side. The plastic will spring back and should then line up nicely with the shape of the UHMW Tail Arm.

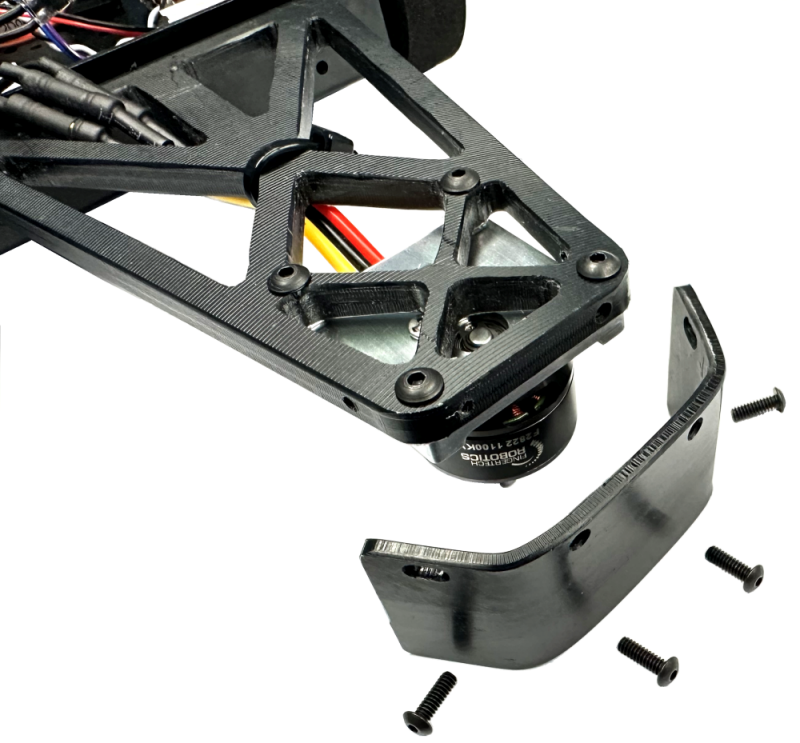

- Secure the bent UHMW Motor Guard to the UHMW Tail Arm with four 4-40 x 3/8” Screws. Install the two middle screws first. The two side holes are slotted to make it easier to pull the sides tightly against the UHMW Tail Arm.
