Turning lifters into flippers, one bot at a time :)
BIG Upgrade to the Viper Lifter Add-On. This will turn your lifter into a FLIPPER. With nearly triple the torque and over twice as fast this servo will take your lifter from mild to wild. A new servo is far and above the best upgrade for a Viper Lifter.

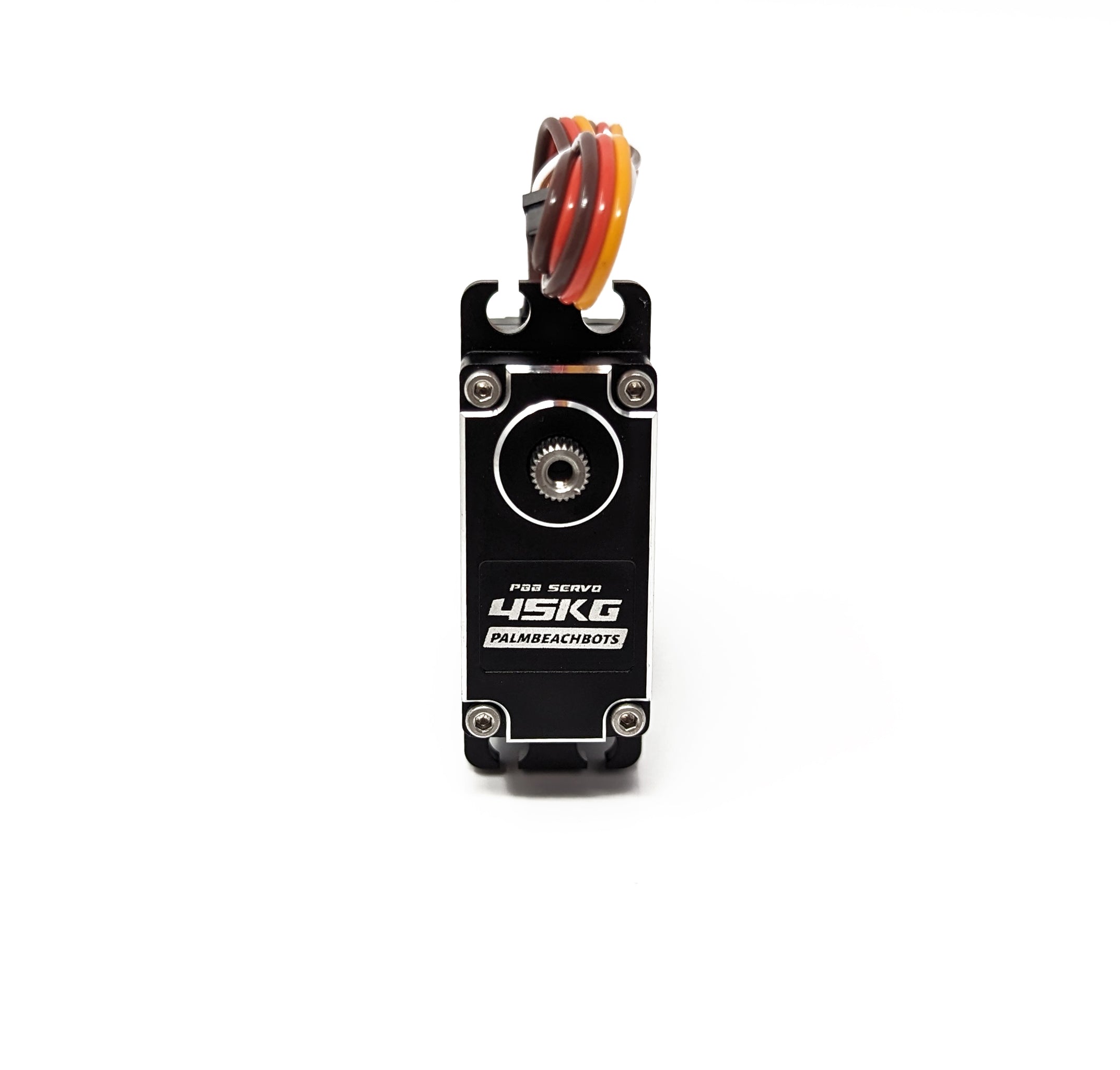

This servo has all the needed upgrades to boost performance while providing extended durability. With coreless design, all metal gears and a machined aluminum case it's a quality piece.
**We recommend upgrading to an aluminum servo arm along with this servo. Due to the force it produces it can strip the teeth on the plastic arm in the Viper Lifter Kit. Our double thickness servo linkage is also a recommended upgrade to prevent the stock linkage from being crushed with the higher power.
Input: 4.8V - 10.0V If your robot's battery is higher than 9V, simply run the servo power from a 9V regulator.
Specifications:
-
Rotation 60°, will do closer to 90° on a remote with the limits set at 120% and will do even more with a servo stretcher or remote with extended limits.
-
Direction: Counterclockwise, same as Viper Lifter. Stick up will move the arm up.
-
Dimensions: 40mm x 40.5mm x 20mm
-
Weight: 81g
- Accepts 25T Futaba-splined servo arms. If the servo will be taking impacts, consider a Servo Saver to protect the gears!
Performance Info:
- 9.0V
- Speed: 0.10 sec/60 degrees
- Stall Torque: 50KG
- 2S (7.4V- 8.4)
- Speed: 0.11 sec/60 degrees
- Stall Torque: 45KG
- 6.0V
- Speed: 0.12 sec/60 degrees
- Stall Torque: 35KG
