Used in the

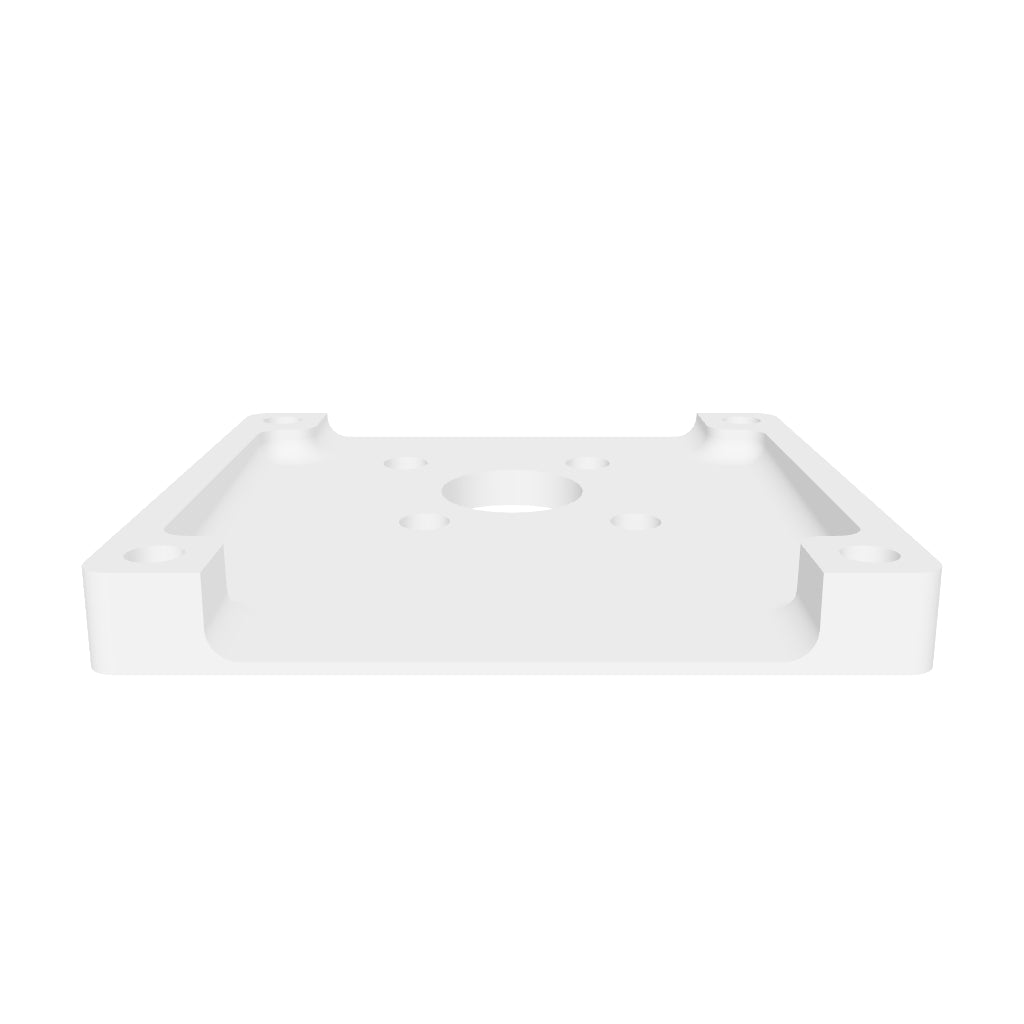

Viper Horizontal Spinner Add-On, this 6061-T6 aluminum mount for the
D2822 motor will spread the impact forces out (resulting in less frame bending) and angle the blade downwards at the front to be able to hit lower on opponents.
Specifications:
Width: 38.1mm (1.5in)
Length: 38.1mm (1.5in)
Thickness: 4.76mm (0.19in) plus 0.9mm (0.04in) for washers (so the screw heads don't stick out the bottom - will be integrated in next revision)
Mounting holes: Four 6-32 holes spaced 32.53mm (1.28in) apart
Material: 6061-T6 Aluminum
Includes four nylon washers
Motor Angle: 3.58°
Weight: 7.67grams (0.27oz)
