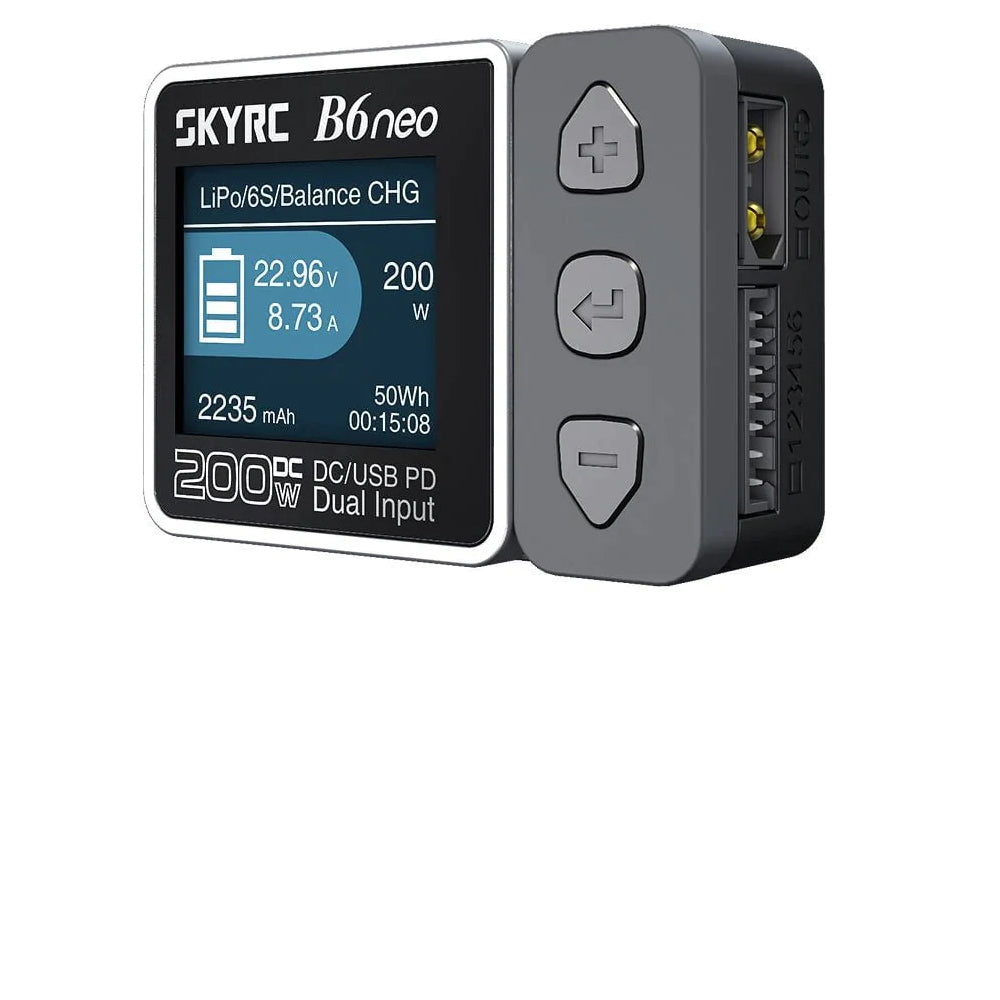

SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and now they've done it again with the next-generation B6neo. Almost 1/4 the size of its predecessor, smaller than a credit card, B6neo is a pocket sized charger that offers better performance than it's elder predecessor.
It can be powered either by USB C or external DC XT60 power source. USB C power supplies are an available option from Palm Beach Bots as well as charging leads to convert from XT60 to XT30 and/or JST to support all common battery connectors in combat robotics. Select options when ordering.
Size: 70x50x32mm
Weight: 82g
Size: 1.77 inch
Panel Active Area: 28.03x35.04mm
Resolution: 128xRGBx160 Pixel
Number of Colors: 262K
DC Input Voltage: 10-28.0V
PD3.0/QC Input Voltage: 12v-20v
Charger power: DC: 200W
PD: Max. 80W (20V, 5A)
Discharge power: Max. 24W based on 6S(4.2V/S)
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
Charge and Discharge/Charge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1-20.0A
